Arteor Advance - 1 gang plate + frame for slender dimmer or fan frosted black - Crystal polycarbonate matte finish - Snap-on

Arteor Advance Legrand

Arteor Advance - 1 gang plate + frame for slender dimmer or fan frosted black - Crystal polycarbonate matte finish - Snap-on

REF. AA1202FB EAN. 3414972723084

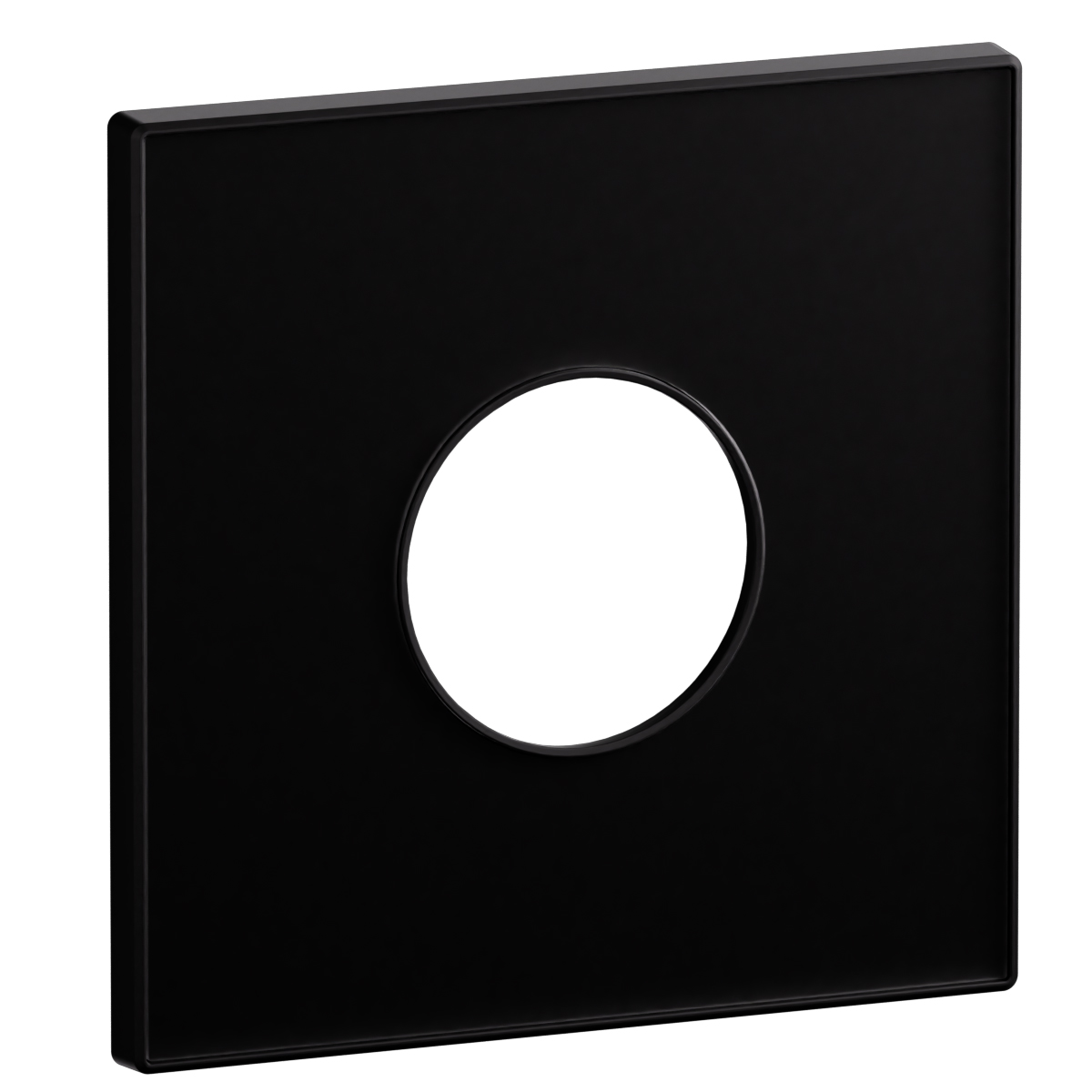

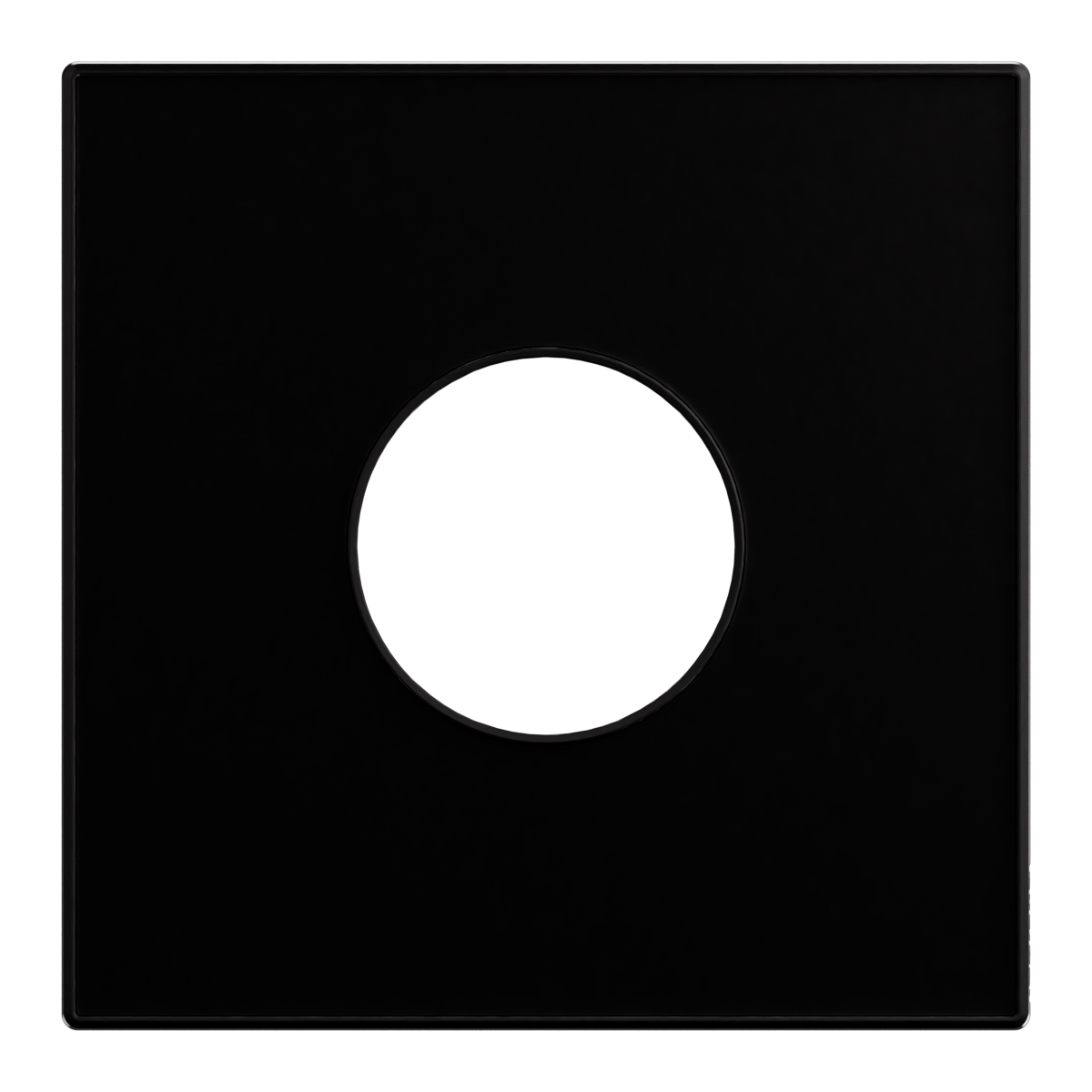

This 1 gang frosted black plate and frame for slender dimmer or fan combines crystal polycarbonate with a velvet-touch finish. Its snap fastening and integrated adjuster ensure precise flush-mounted installation with Arteor Advance devices.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang frosted black plate and frame for slender dimmer or fan combines crystal polycarbonate with a velvet-touch finish. Its snap fastening and integrated adjuster ensure precise flush-mounted installation with Arteor Advance devices.

Product characteristics
  • One-gang plate and frame for a single dimmer or fan control, optimized for Arteor Advance domestic switching applications
  • Frosted black matte finish for reduced glare and a refined, contemporary aesthetic on wall-mounted installations
  • Crystal polycarbonate plate set in a cradle, delivering a velvet touch surface with full black opacity and high mechanical robustness
  • Slender, low-profile design with 8.65mm depth for a discreet, flush-mounted appearance in horizontal or vertical configurations
  • Halogen-free thermoplastic construction with snap-on fastening, ensuring safe, clean indoor installation and precise wall alignment via integrated adjuster
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation Yes
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.65 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
