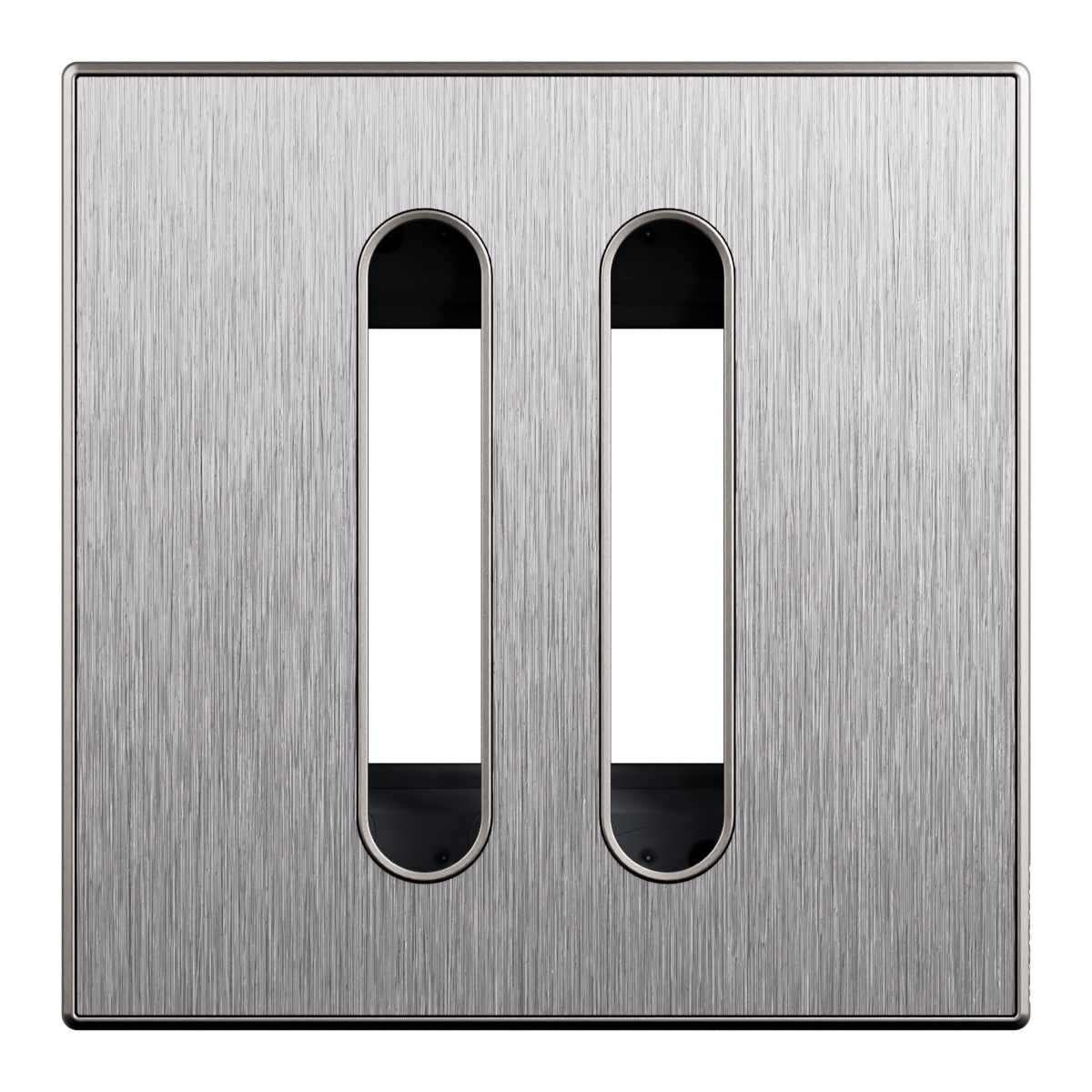

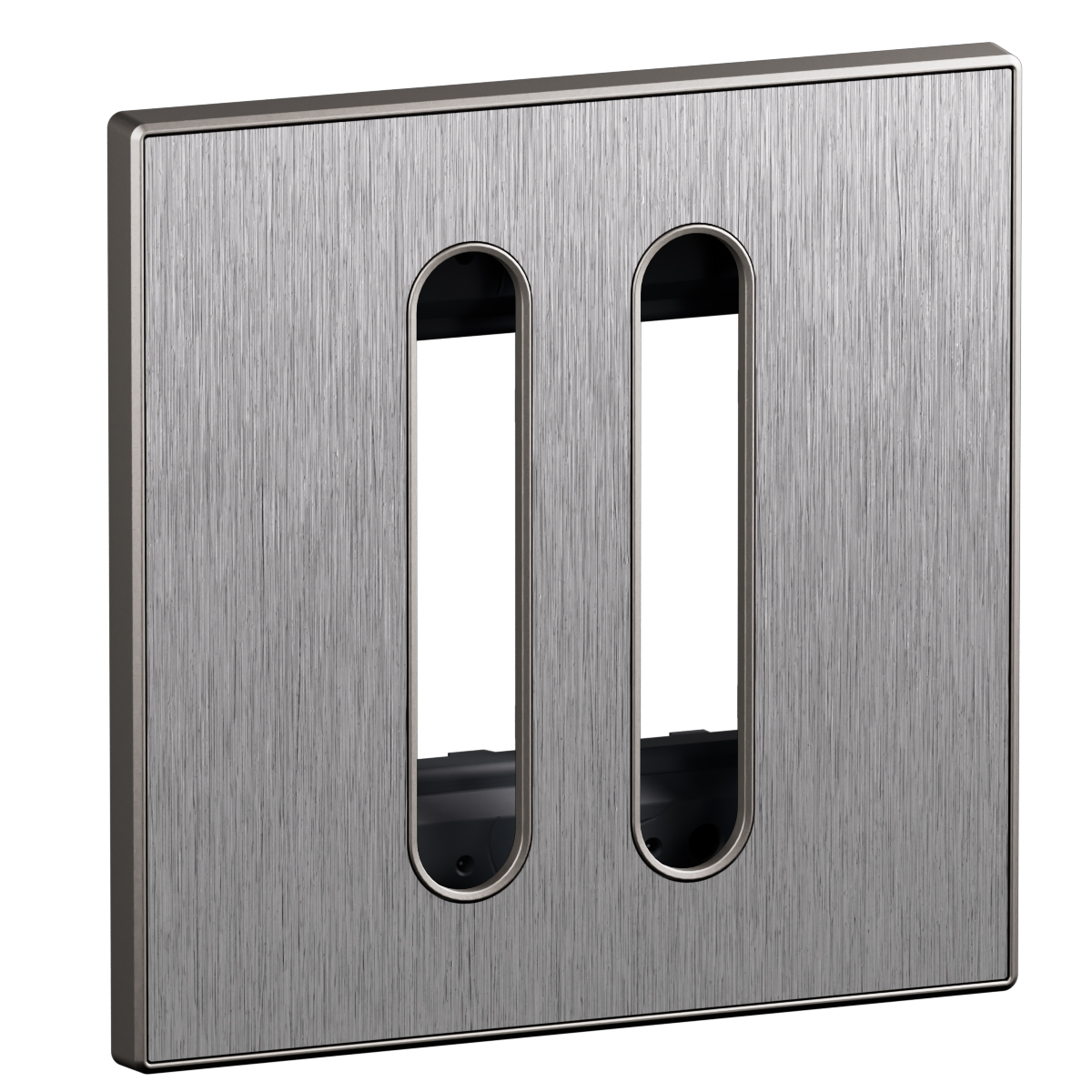

Arteor Advance - 1 gang plate + frame for 2x1 module slender switches - Real brushed stainless steel - Flush-mounted installation

Arteor Advance Legrand

Arteor Advance - 1 gang plate + frame for 2x1 module slender switches - Real brushed stainless steel - Flush-mounted installation

REF. AA1201BS EAN. 3414972722841
This 1 gang plate and frame for 2x1 module slender switches delivers real brushed stainless steel aesthetics. Its snap fastening and integrated adjuster ensure precise flush-mounted installation. Halogen-free metal construction.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate and frame for 2x1 module slender switches delivers real brushed stainless steel aesthetics. Its snap fastening and integrated adjuster ensure precise flush-mounted installation. Halogen-free metal construction.

Product characteristics
  • One-gang plate and frame assembly for domestic switching devices, providing a single control point in Arteor Advance installations
  • Brushed stainless steel finish with glossy surface protection for enhanced durability and premium appearance
  • Plates are made of real brushed stainless steel metal, halogen free and corrosion resistant for long service life
  • Slender, low-profile design with 8.65mm depth and 2x1module horizontal configuration for flush-mounted, refined aesthetics
  • Snap-on fastening with integrated adjuster ensures precise, flush wall installation in flush-mounted, wall duct, or subfloor duct boxes for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation Yes
Label space/information surface No
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.65 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
