Arteor Advance - 1 gang plate + frame for 1 module slender switch frosted black - Crystal polycarbonate matt finish - Velvet touch

Arteor Advance Legrand

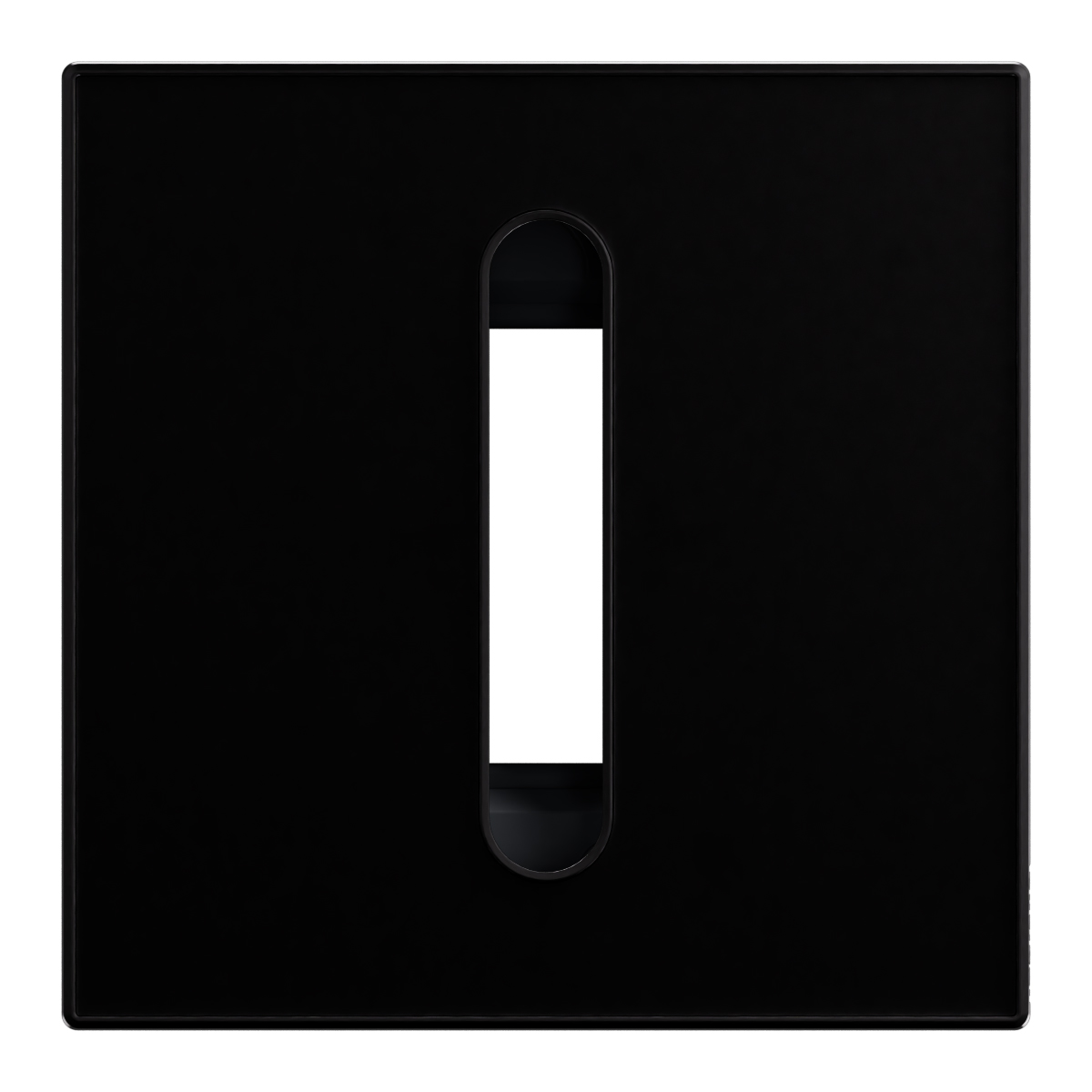

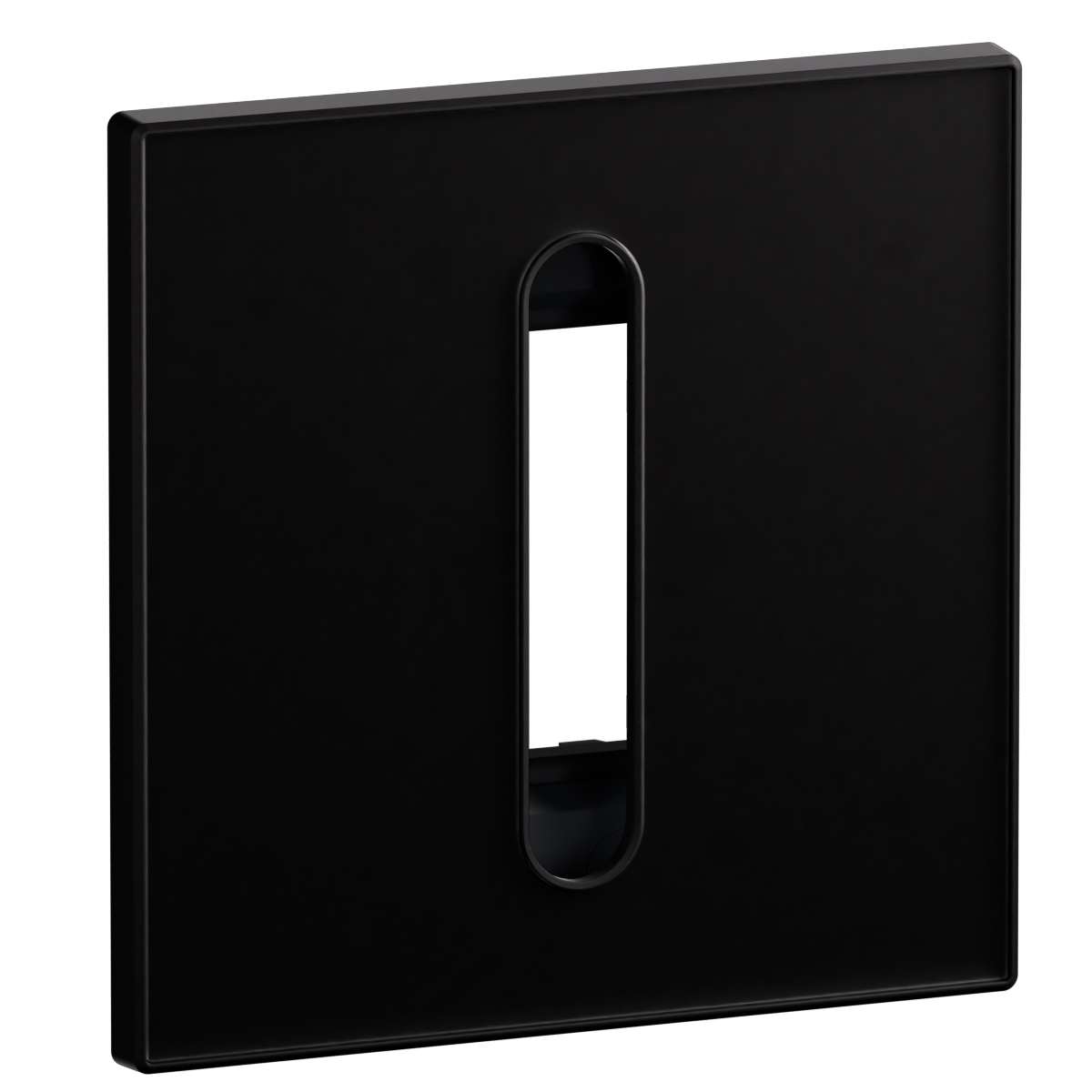

Arteor Advance - 1 gang plate + frame for 1 module slender switch frosted black - Crystal polycarbonate matt finish - Velvet touch

REF. AA1200FB EAN. 3414972722728
This 1 gang plate and frame for 1 module slender switch in frosted black offers refined design with crystal polycarbonate for velvet touch and full opacity.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate and frame for 1 module slender switch in frosted black offers refined design with crystal polycarbonate for velvet touch and full opacity.

Product characteristics
  • One-gang plate and frame for a single 1-module switch, optimized for standard domestic switching points
  • Frosted black matte finish providing low reflectance and high black opacity for a refined, contemporary look
  • Crystal polycarbonate plate in a cradle structure, delivering high mechanical strength with a velvet-touch surface
  • Ultra-slender profile with 8.65mm depth for a flush, minimalist wall integration in Arteor Advance installations
  • Snap-on fastening with integrated adjuster for precise, flush-mounted installation in wall or duct boxes, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation Yes
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.65 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Product Environmental Profile (PEP)
LGRP-01930-V01.02-EN.pdf pdf (0.81 Mo)
