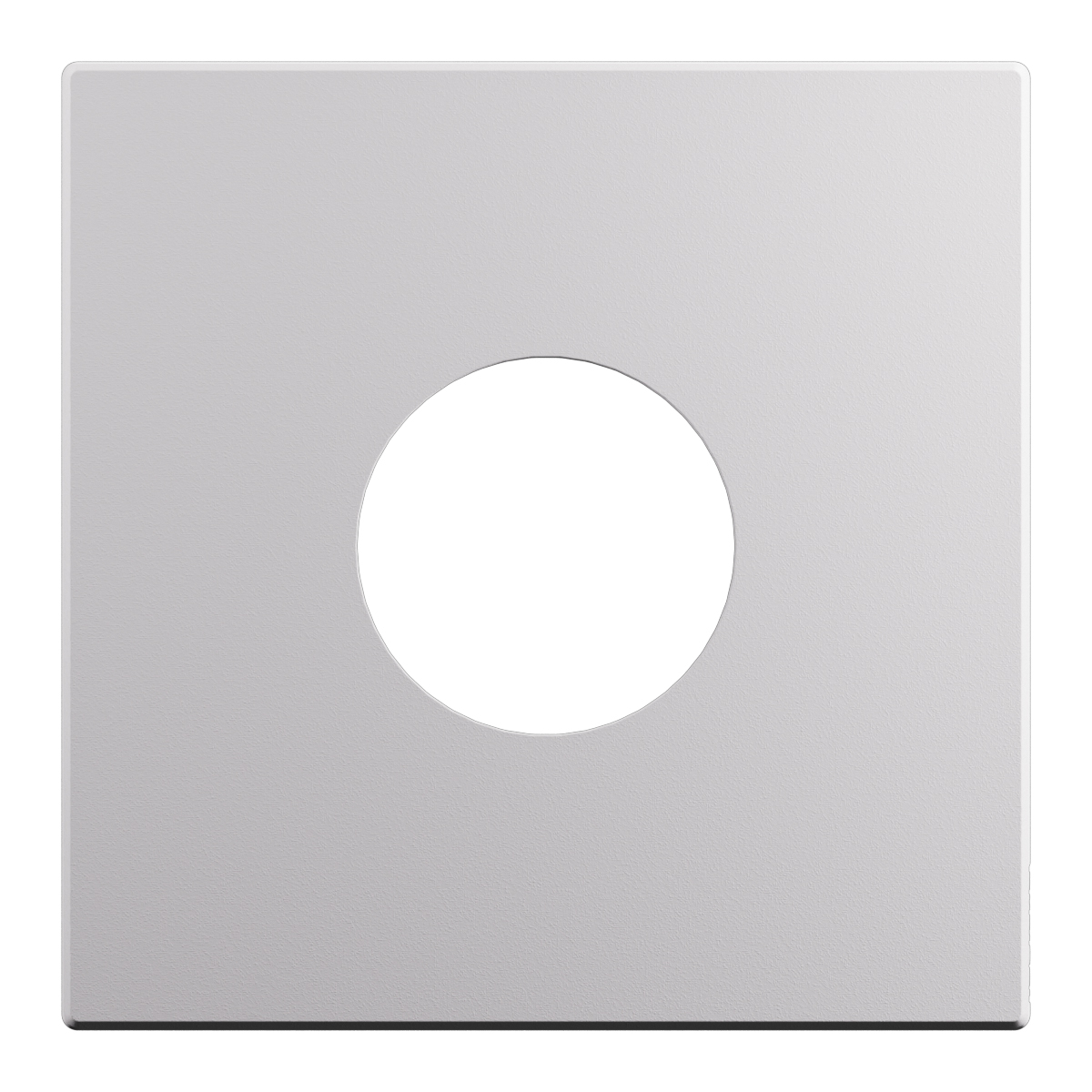

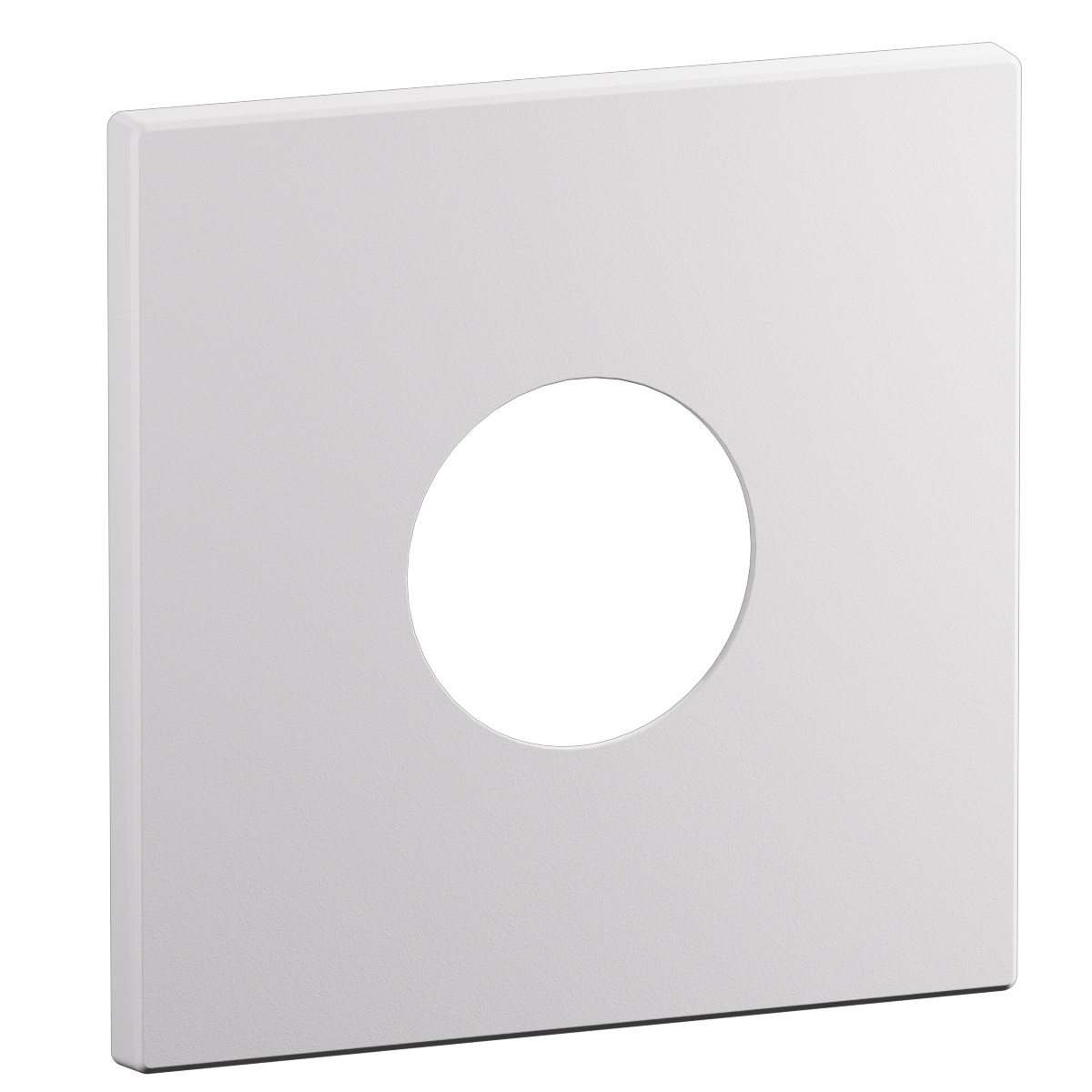

Arteor Advance - 1 gang plate for slender dimmer or fan matt white - Matt white thermoplastic, halogen free - Refined slender design

Arteor Advance Legrand

Arteor Advance - 1 gang plate for slender dimmer or fan matt white - Matt white thermoplastic, halogen free - Refined slender design

REF. AA1107MW EAN. 3414972721080
This 1 gang matt white plate for slender dimmer or fan combines refined aesthetics with a smooth matt finish. Its snap-on thermoplastic design ensures precise flush mounting and durable IK02 impact resistance for professional installations.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang matt white plate for slender dimmer or fan combines refined aesthetics with a smooth matt finish. Its snap-on thermoplastic design ensures precise flush mounting and durable IK02 impact resistance for professional installations.

Product characteristics
  • One-gang cover plate for dimmer or fan control, 1 unit, suitable for flush-mounted installation in domestic switching applications
  • Matt white finish (similar to RAL 9003) with smooth, powdery aspect for a clean, contemporary appearance
  • Plate manufactured from thermoplastic polycarbonate, halogen free, providing robust IK02 impact resistance and long-term dimensional stability
  • Slender, refined design with minimal 8.5mm depth, blending straight and organic lines for discreet wall integration
  • Snap-on fastening without mounting grid, optimized for indoor use at -5-35° C operating temperature and -10-70° C storage temperature
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Powdery white with a smooth matte aspect
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
