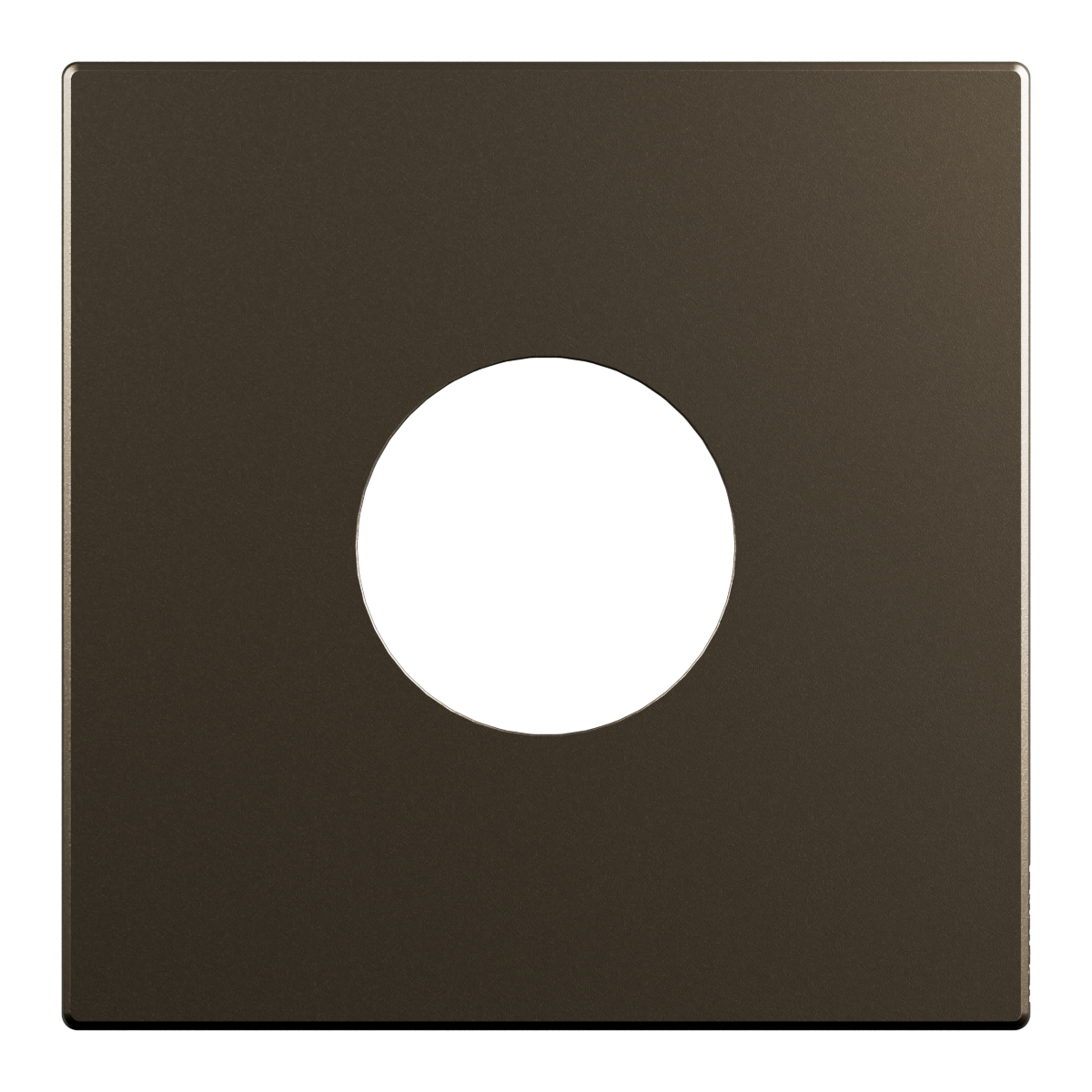

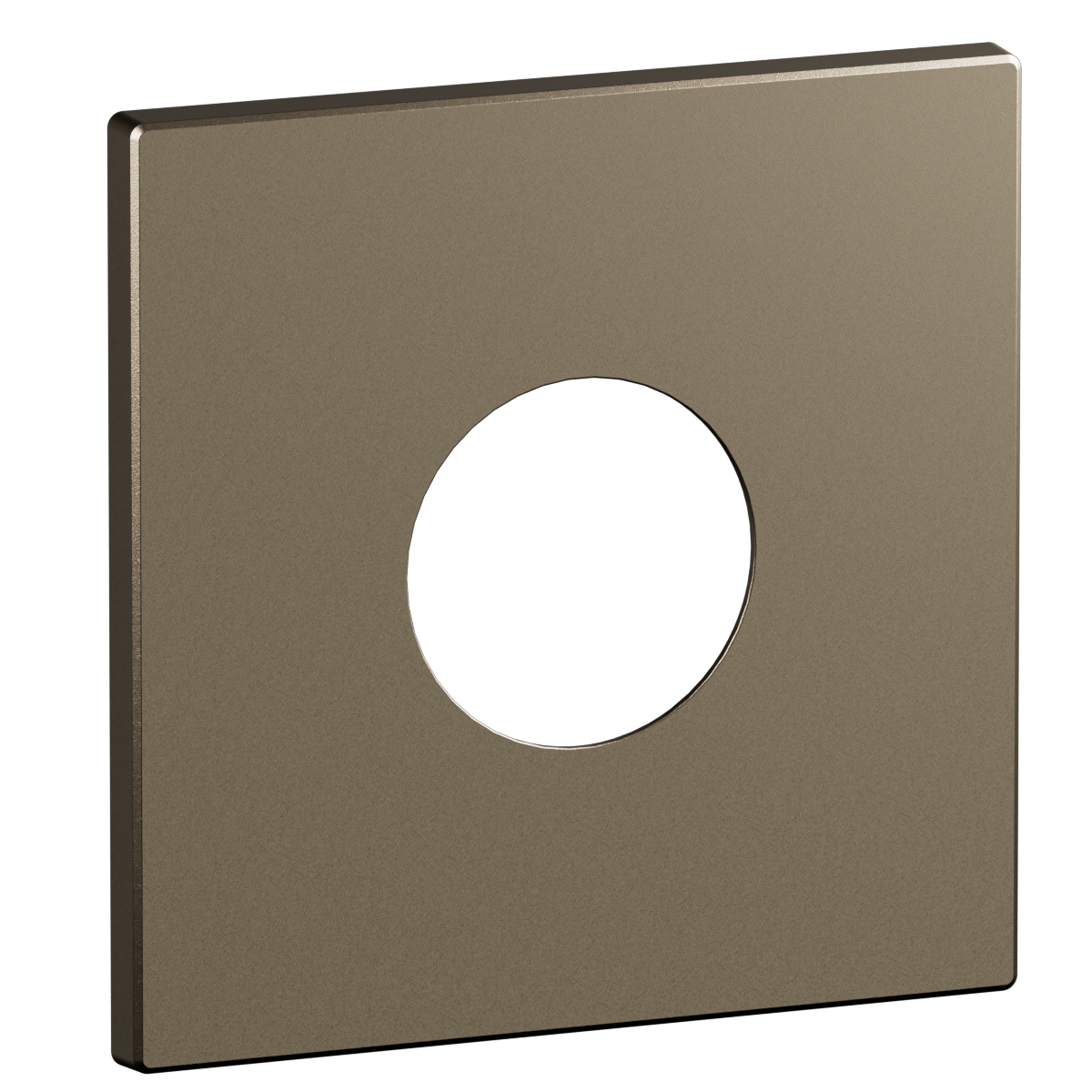

Arteor Advance - 1 gang plate for slender dimmer or fan - Matt thermoplastic, halogen free - Snap-on flush mounting - Deep bronze

Arteor Advance Legrand

Arteor Advance - 1 gang plate for slender dimmer or fan - Matt thermoplastic, halogen free - Snap-on flush mounting - Deep bronze

REF. AA1107DB EAN. 3414972919043
This 1 gang Arteor Advance plate for slender dimmer or fan combines deep dark bronze aesthetics with a matt lacquered thermoplastic body. Its snap-on mounting ensures precise flush installation. Halogen-free construction supports safer
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang Arteor Advance plate for slender dimmer or fan combines deep dark bronze aesthetics with a matt lacquered thermoplastic body. Its snap-on mounting ensures precise flush installation. Halogen-free construction supports safer

Product characteristics
  • One-gang cover plate for dimmer or fan control, providing a single wiring point in Arteor Advance installations
  • Dark bronze lacquered matte finish delivering a deep, classic aesthetic that coordinates with Arteor Advance devices
  • Plate manufactured from thermoplastic polycarbonate, halogen free and impact rated IK02 for robust residential use
  • Slender 8.5mm flush-mounted profile for a refined, low-projection appearance on the wall
  • Snap-on fastening without mounting grid, 90x90mm, horizontal or vertical 1-module installation, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep bronze finish evoking classic ambiance
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04493EN-00.pdf pdf (0.51 Mo)
