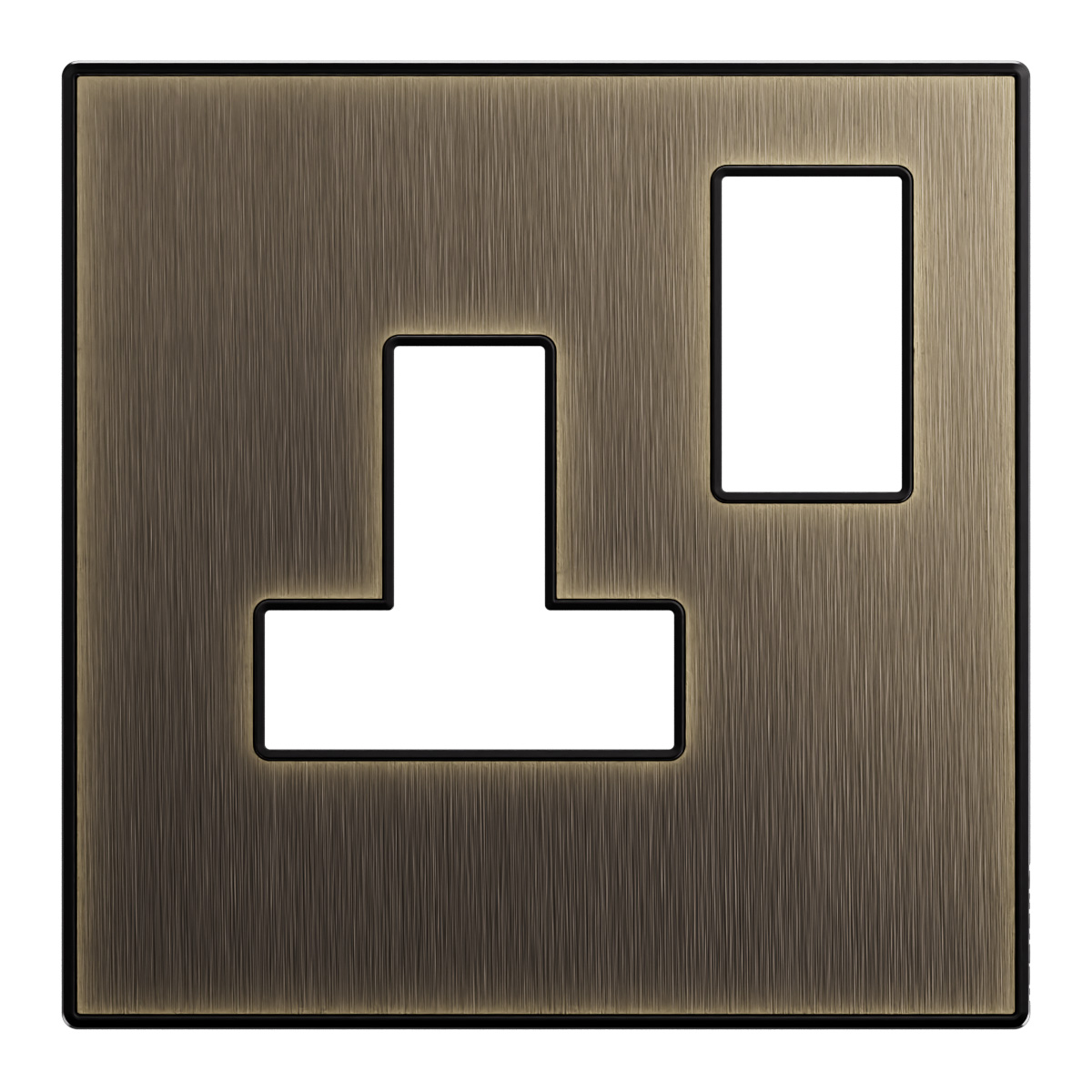

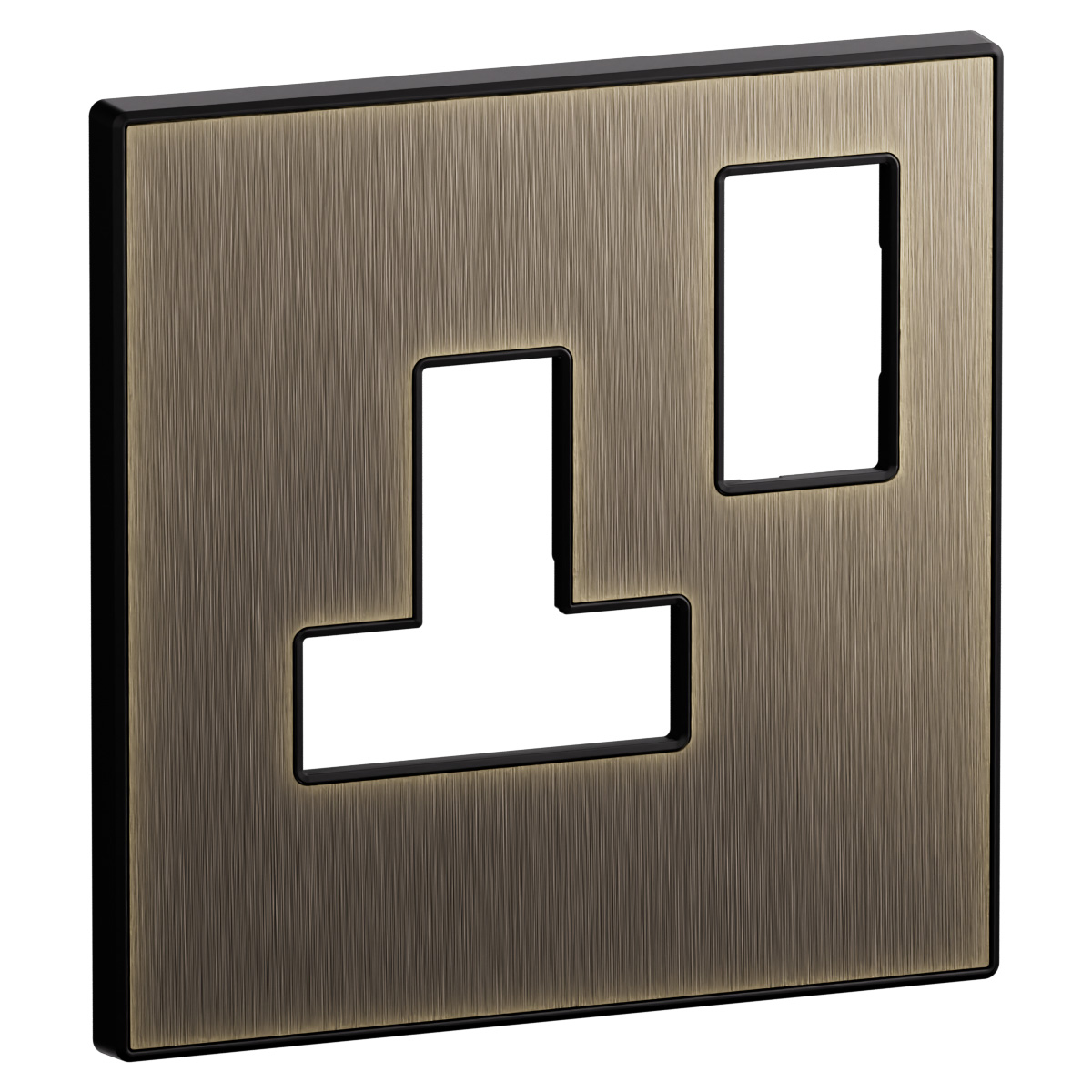

Arteor Advance - 1 gang plate for BS 5A and 13A switched socket outlet brushed antique brass - Metal brass matt finish

Arteor Advance Legrand

Arteor Advance - 1 gang plate for BS 5A and 13A switched socket outlet brushed antique brass - Metal brass matt finish

REF. AA1100AB EAN. 3414972972864
This 1 gang plate for BS 5A and 13A switched socket outlets combines brushed antique brass with a matt lacquered finish. Its slender monobloc, halogen-free metal design ensures durable, flush-mounted integration.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate for BS 5A and 13A switched socket outlets combines brushed antique brass with a matt lacquered finish. Its slender monobloc, halogen-free metal design ensures durable, flush-mounted integration.

Product characteristics
  • One-gang cover plate for BS 5A and 13A switched socket outlets, optimized for single-point domestic power distribution
  • Brushed antique brass, matt lacquered finish providing a vintage aesthetic with soft golden highlights and enhanced surface protection
  • Cover frame manufactured in brass metal, halogen free and IK02 impact rated for robust, compliant installation in residential environments
  • Slender monobloc design with snap-on fastening for clean, minimalist appearance and quick flush-mounted installation
  • Horizontal 1-module plate, 90x90x8mm, operating temperature range -5° C to 35° C, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • The antique brass finish with the brushed effect, blends darkened shades with soft golden highlights for a vintage character
  • Minimalist design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Brass
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Brass
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04499EN-01.pdf pdf (0.51 Mo)
