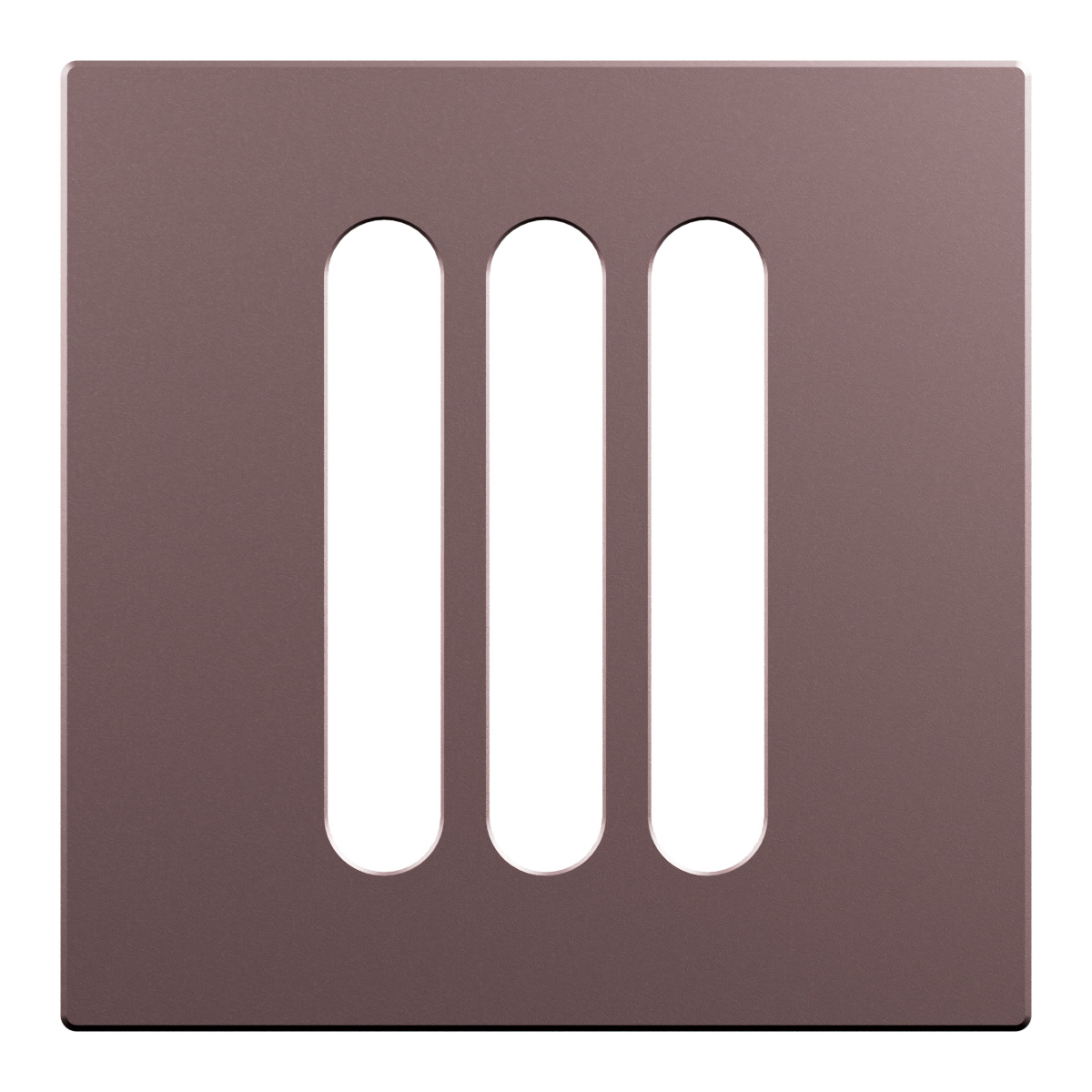

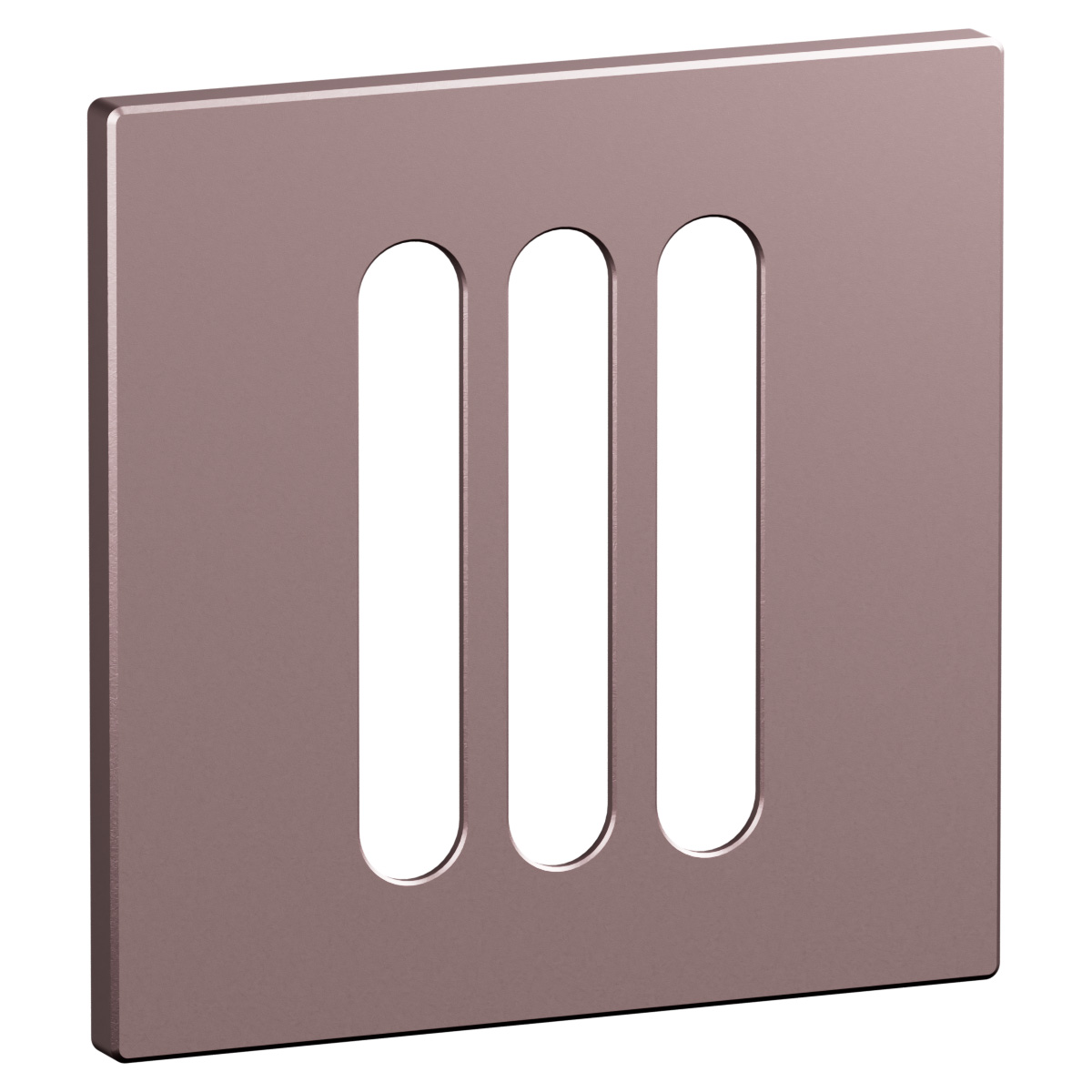

Arteor Advance - 1 gang plate for 3x1module slender switches solid rose - Horizontal 3 modules - Matt aluminum, halogen free, IK02

Arteor Advance Legrand

Arteor Advance - 1 gang plate for 3x1module slender switches solid rose - Horizontal 3 modules - Matt aluminum, halogen free, IK02

REF. AA1106SR EAN. 3414973082814
This 1 gang plate for 3x1 module slender switches in Solid Rose combines refined design with a pink finish. Its snap fastening and flush-mounted installation ensure precise alignment, while the lacquered matt aluminum construction
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate for 3x1 module slender switches in Solid Rose combines refined design with a pink finish. Its snap fastening and flush-mounted installation ensure precise alignment, while the lacquered matt aluminum construction

Product characteristics
  • One-gang cover frame for three 1-module devices, optimized for horizontal mounting in Arteor Advance installations
  • Solid rose pink, matt lacquered metal finish delivering a subtle blush effect with the cool sensation of aluminum
  • Plate manufactured from lacquered aluminum, halogen-free and IK02 impact rated for robust residential applications
  • Ultra-slender 8.5mm profile with 60.5mm built-in height and 10.5mm built-in width for a refined, flush-mounted aesthetic
  • Snap-on fastening without mounting grid, ensuring precise wall alignment and perfect installation within -5 to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Pink finish evoking a subtle blush effect with cool sensation of metal
  • Refined design

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Pink
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
