Arteor Advance - 1 gang plate for 3x1 module slender switches solid sand - Metal matt lacquered finish - Horizontal flush-mounted

Arteor Advance Legrand

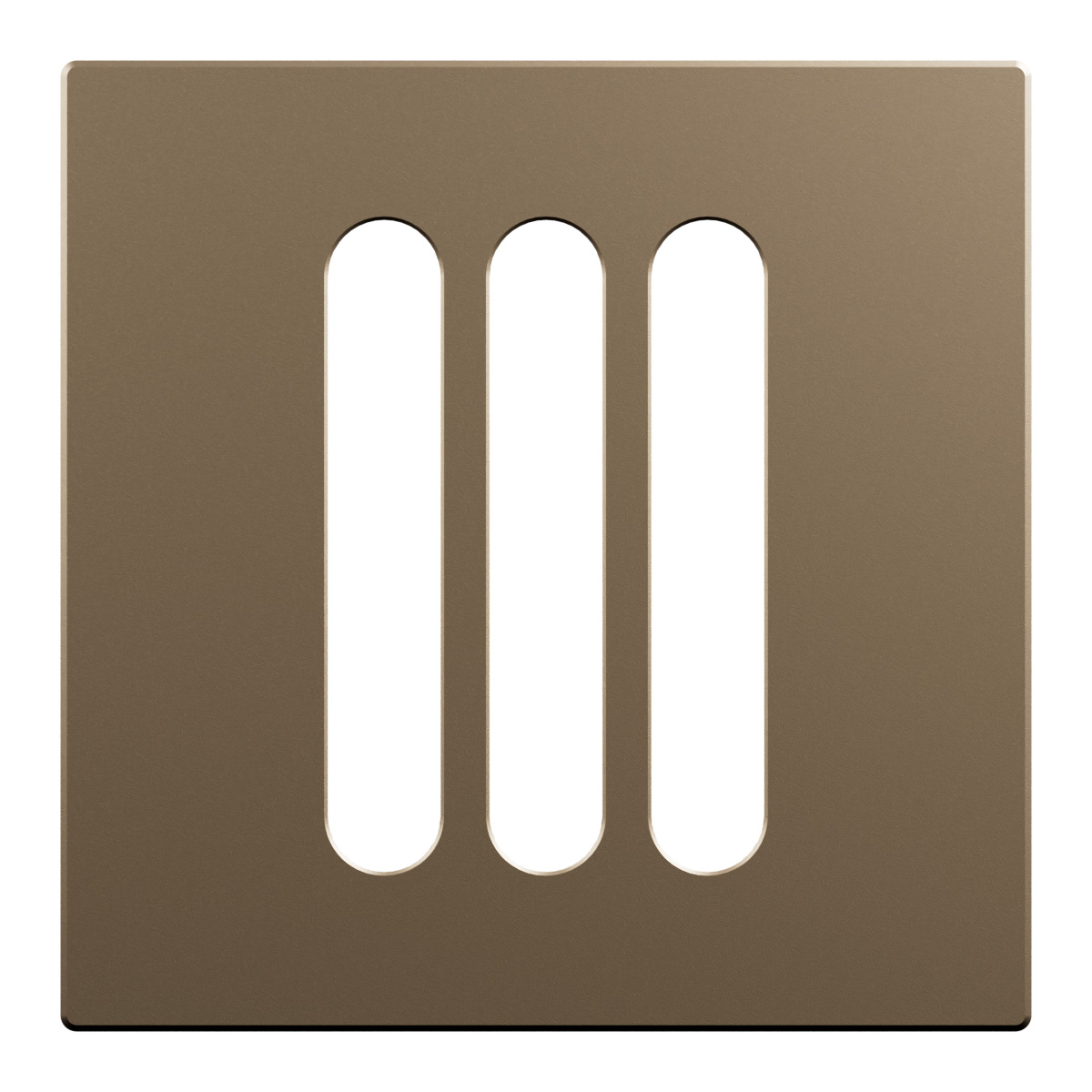

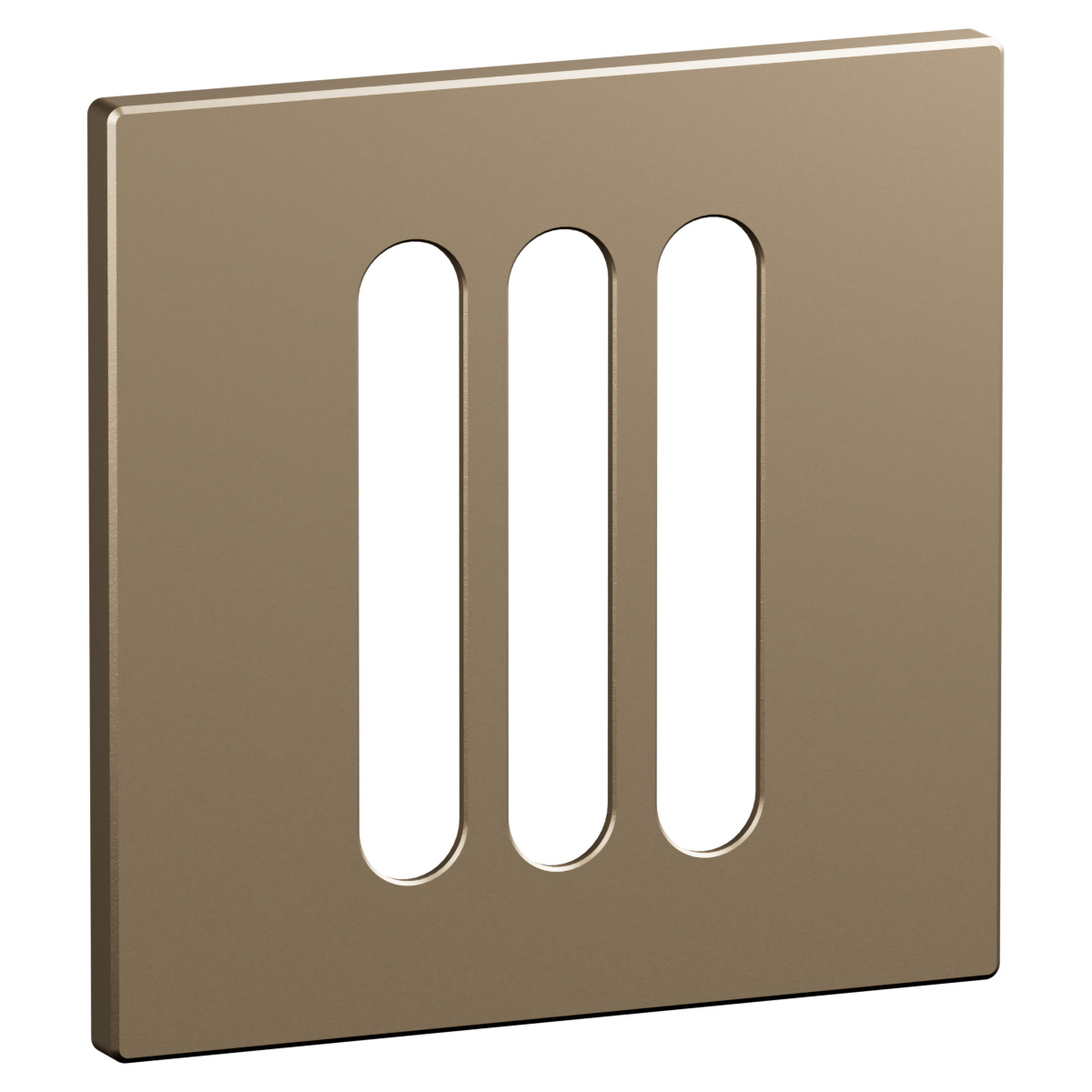

Arteor Advance - 1 gang plate for 3x1 module slender switches solid sand - Metal matt lacquered finish - Horizontal flush-mounted

REF. AA1106SD EAN. 3414973082784
This 1 gang plate for 3x1 module slender switches in solid sand offers refined design and sandy gold finish. Its snap fastening ensures precise flush-mounted installation, while the halogen-free, lacquered matt surface enhances durability.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate for 3x1 module slender switches in solid sand offers refined design and sandy gold finish. Its snap fastening ensures precise flush-mounted installation, while the halogen-free, lacquered matt surface enhances durability.

Product characteristics
  • One-gang cover plate for three 1-module horizontal switches, optimized for Arteor Advance domestic installations
  • Solid Sand beige matt lacquered finish delivering a sandy gold, mineral-inspired aesthetic with a cool metallic feel
  • Plate manufactured in aluminum with halogen-free construction and IK02 impact resistance for robust, safe applications
  • Ultra-slender 8.5mm profile with engage (snap) fastening for refined, flush-mounted wall integration
  • Operating temperature range -5° C to 35° C and storage range -10° C to 70° C support reliable indoor use in standard residential and commercial environments
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Sandy gold finish reminiscent of natural mineral elegance with cool sensation of metal
  • Refined design

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Beige
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
