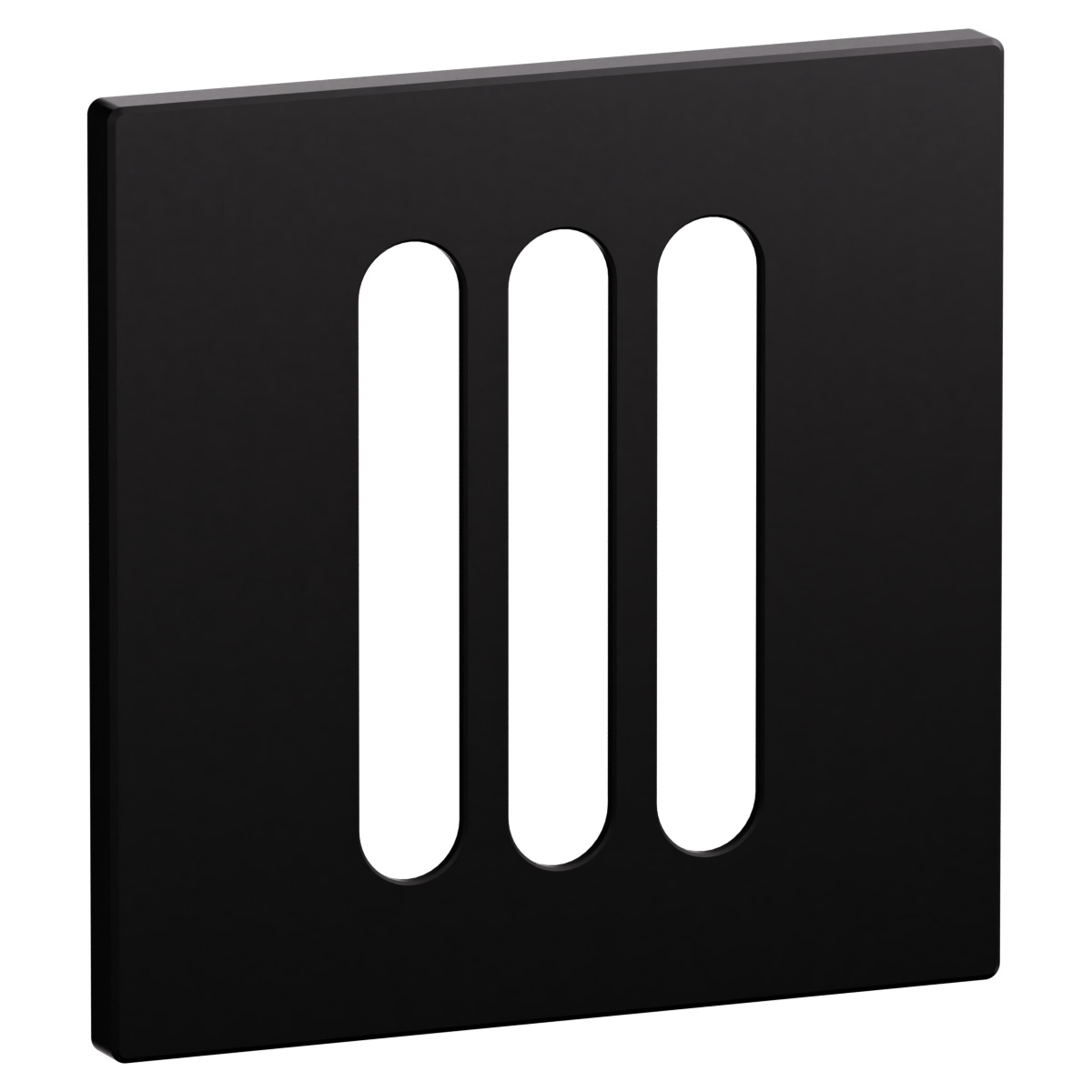

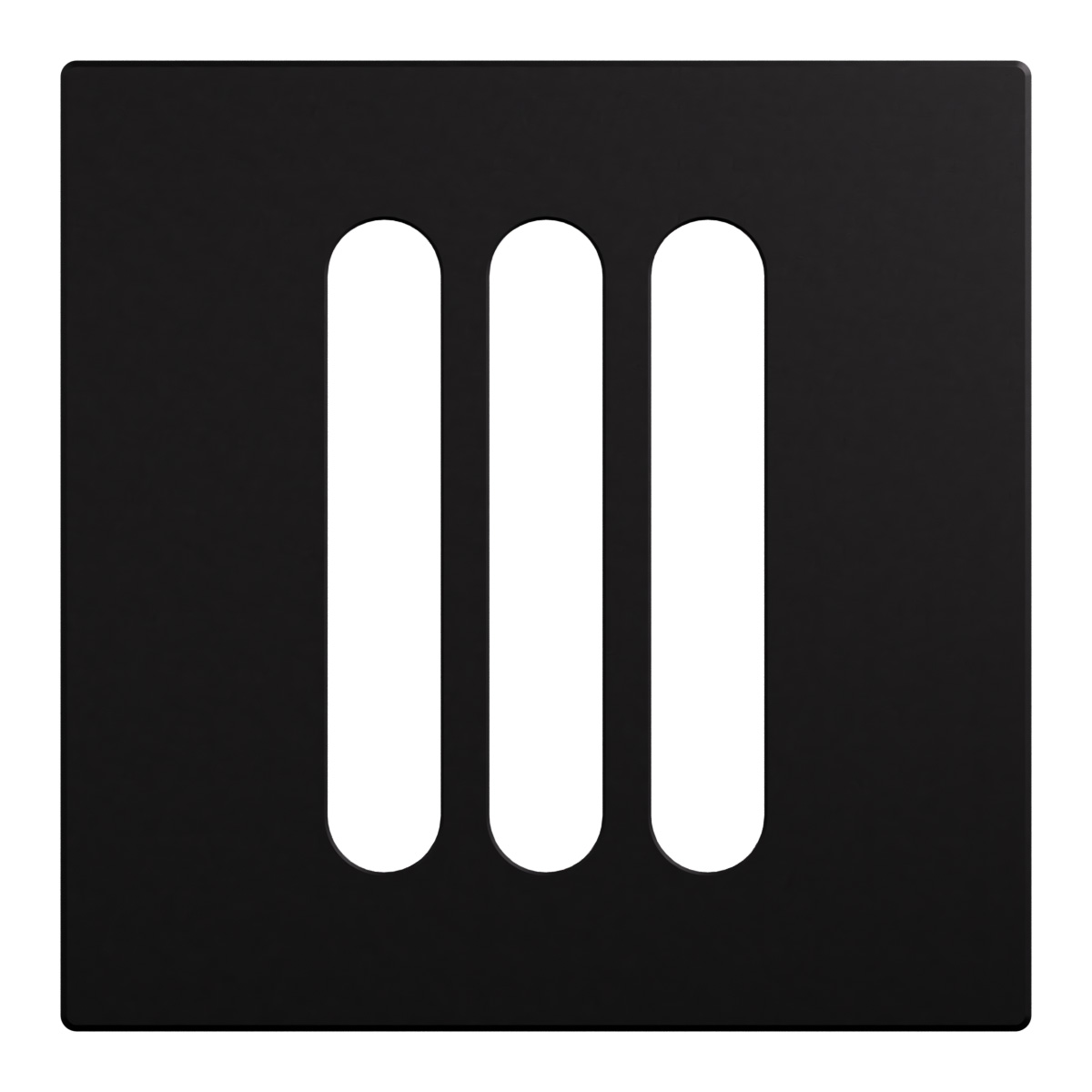

Arteor Advance - 1 gang plate for 3x1 module slender switches solid black - Matt lacquered aluminum - Horizontal flush-mounted frame

Arteor Advance Legrand

Arteor Advance - 1 gang plate for 3x1 module slender switches solid black - Matt lacquered aluminum - Horizontal flush-mounted frame

REF. AA1106SB EAN. 3414973082722
This 1 gang plate for 3x1 module slender switches in solid black offers a deep matt finish with a cool metal feel. Its snap fastening enables flush-mounted installation for Arteor Advance devices.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate for 3x1 module slender switches in solid black offers a deep matt finish with a cool metal feel. Its snap fastening enables flush-mounted installation for Arteor Advance devices.

Product characteristics
  • One-gang cover plate for three horizontal 1-module Arteor Advance switches, optimized for flush-mounted installation
  • Solid black deep matt finish with lacquered surface for a refined, contemporary aesthetic
  • Crystal polycarbonate front with aluminum metal body for enhanced rigidity and a cool metal touch
  • Slender 8.5mm profile with compact built-in dimensions (10.5x60.5mm) for a discreet wall projection
  • Snap-on fastening with integrated adjuster to ensure precise, perfectly aligned wall installation in indoor environments
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep black with a smooth matt aspect and cool sensation of metal
  • Refined design

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
