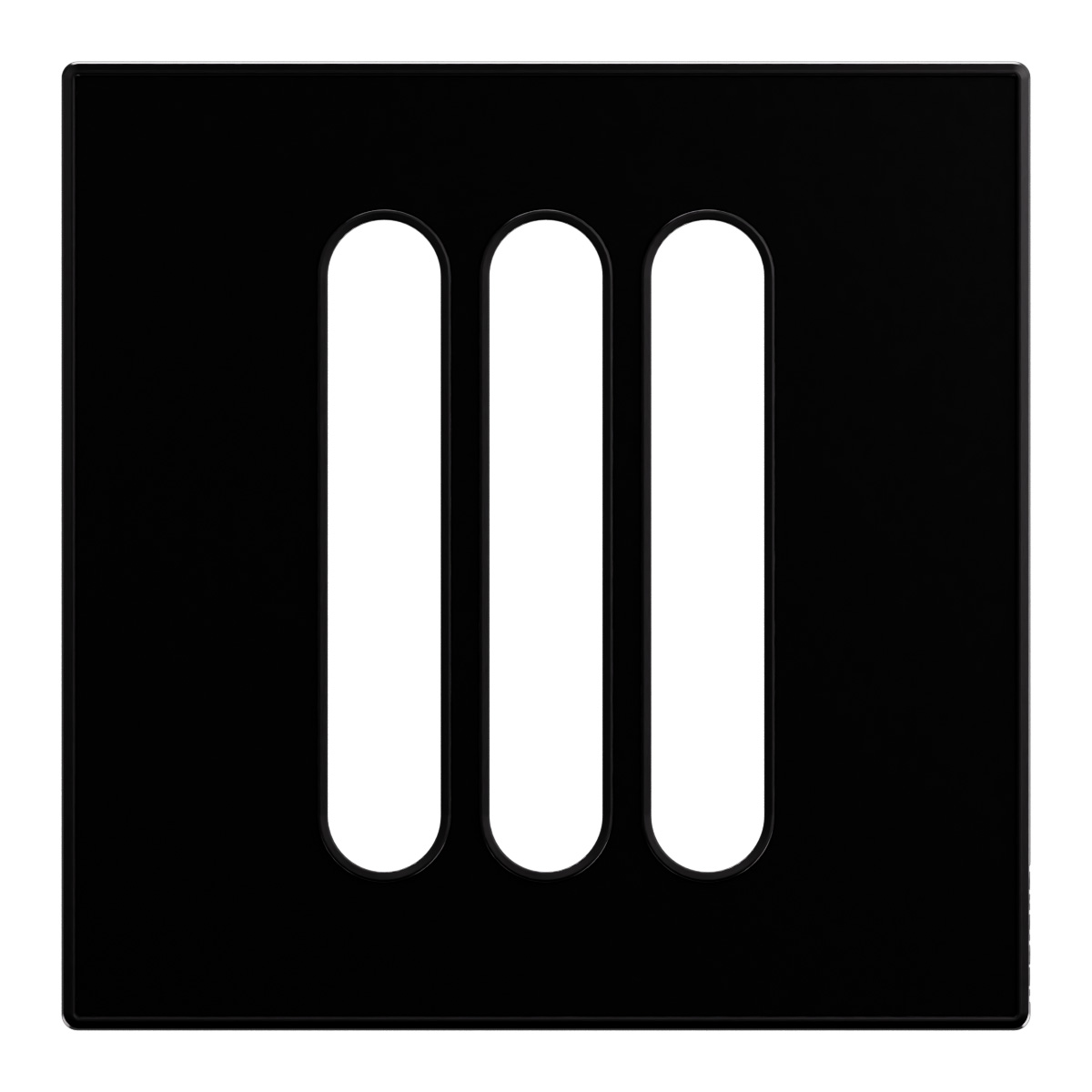

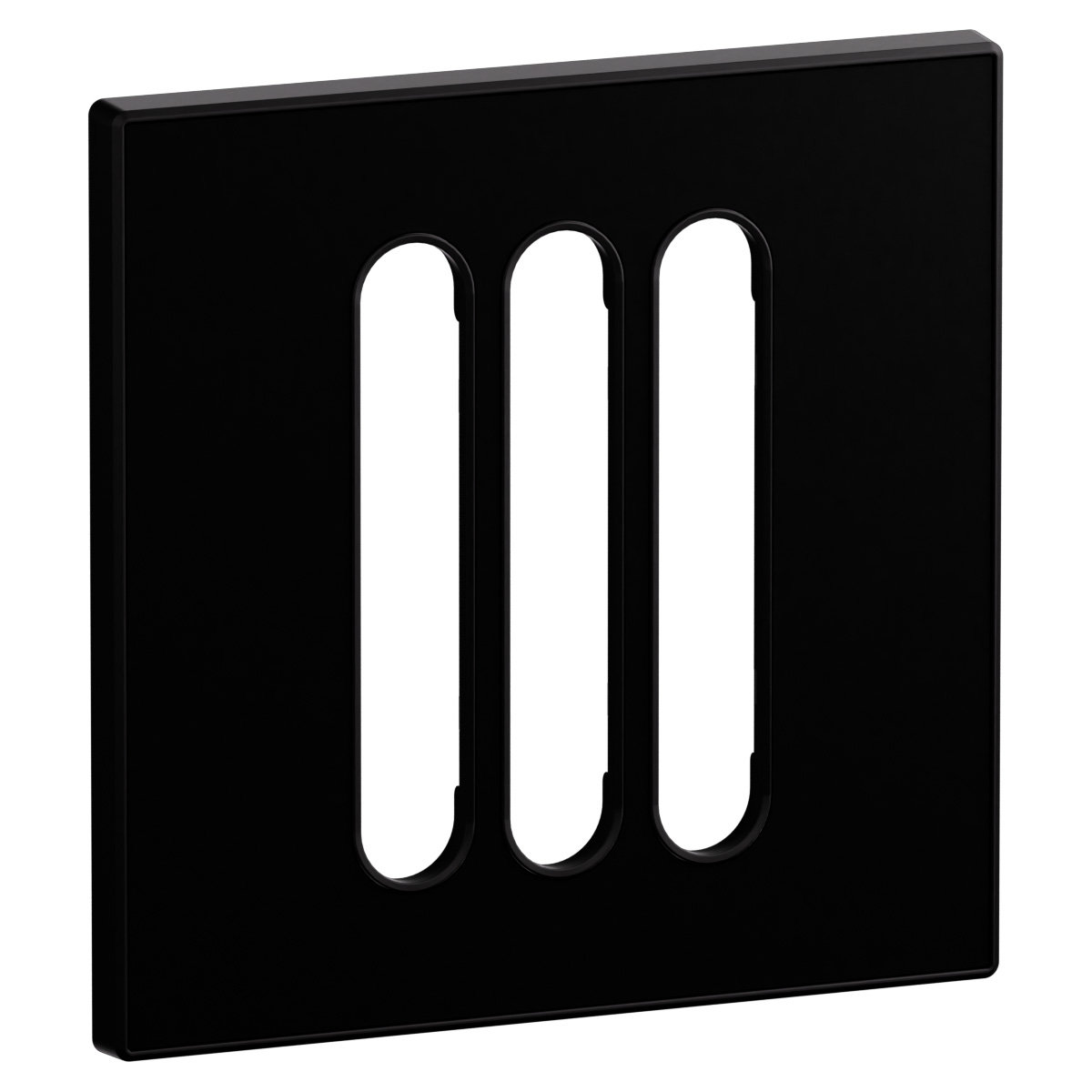

Arteor Advance - 1 gang plate for 3x1 module slender switches frosted black - Crystal polycarbonate matt finish

Arteor Advance Legrand

Arteor Advance - 1 gang plate for 3x1 module slender switches frosted black - Crystal polycarbonate matt finish

REF. AA1106FB EAN. 3414972954938
This 1 gang plate for 3x1 module slender switches in frosted black offers crystal polycarbonate construction, halogen-free thermoplastic safety, and a refined design.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate for 3x1 module slender switches in frosted black offers crystal polycarbonate construction, halogen-free thermoplastic safety, and a refined design.

Product characteristics
  • One-gang cover frame for three horizontal 1M modules, optimized for Arteor Advance domestic switching devices
  • Frosted black matte finish for reduced glare and seamless integration with contemporary black devices
  • Crystal polycarbonate thermoplastic plate offering high dimensional stability, black opacity, and velvet-touch surface
  • Ultra-slender 8.5mm profile with snap-on fastening for a refined, flush-mounted wall appearance
  • Integrated adjuster ensures precise alignment and perfect wall installation; recommended for indoor flush-mounted applications only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
