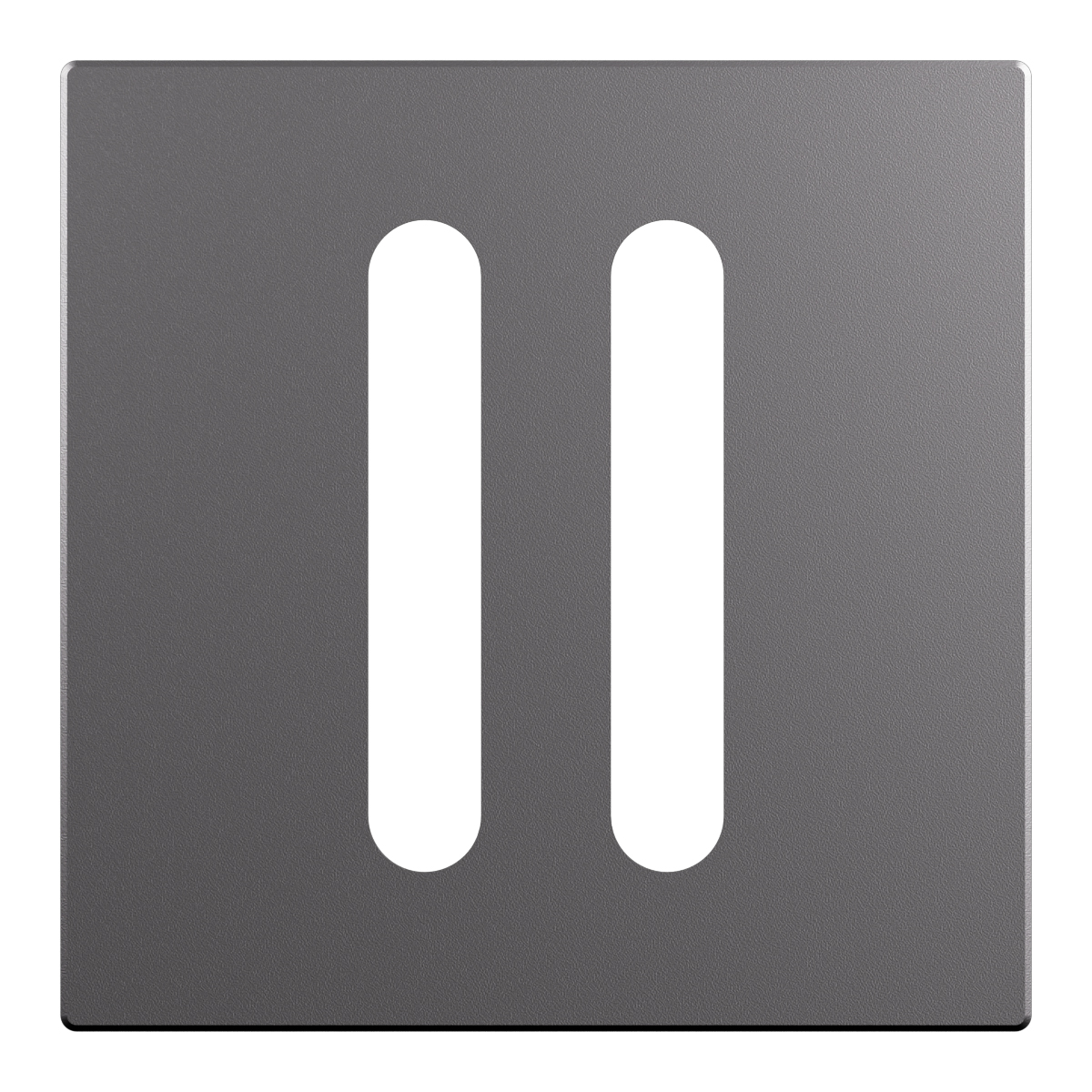

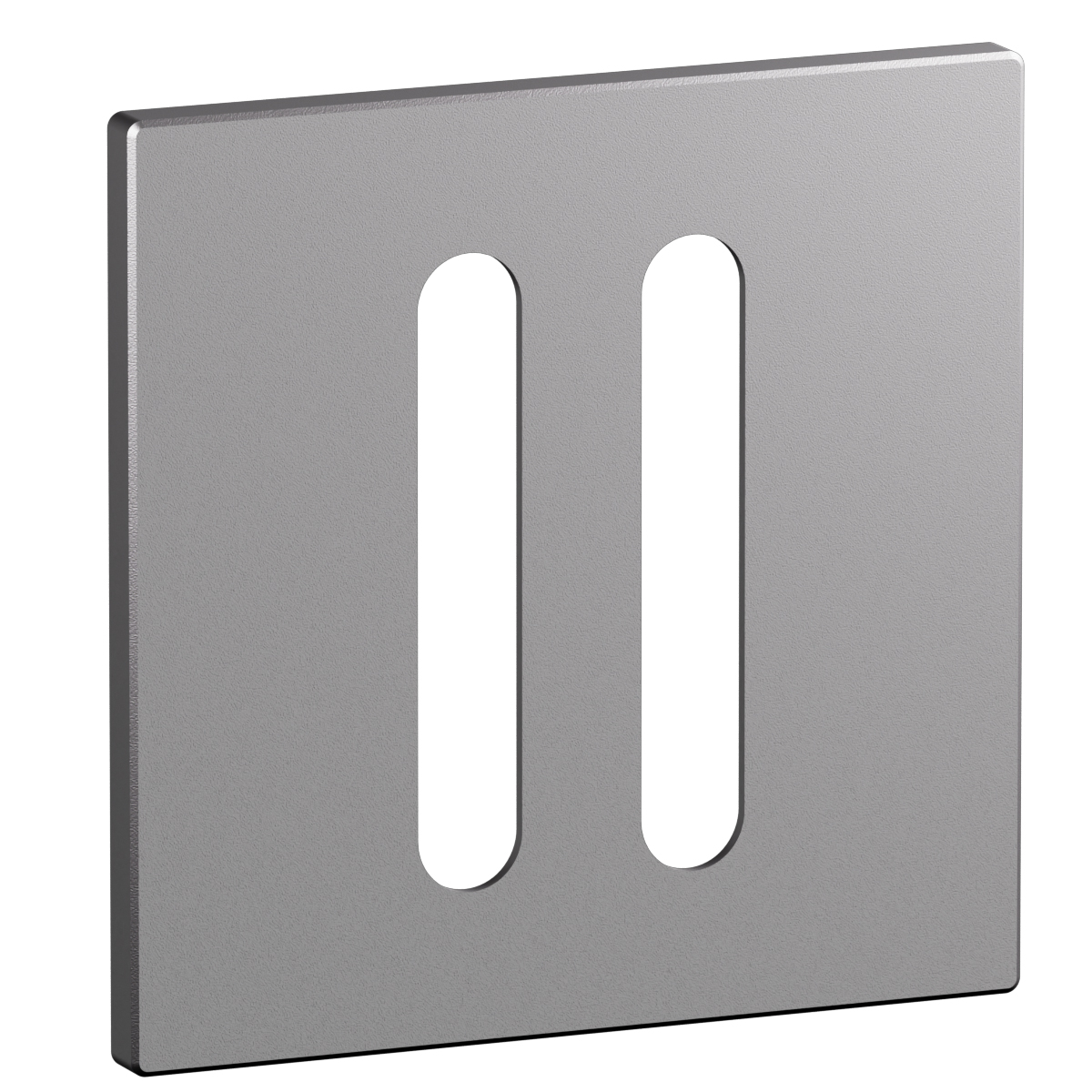

Arteor Advance - 1 gang plate for 2x1 module slender switches solid aluminium - Matt lacquered metal frame - Horizontal flush-mounted

Arteor Advance Legrand

Arteor Advance - 1 gang plate for 2x1 module slender switches solid aluminium - Matt lacquered metal frame - Horizontal flush-mounted

REF. AA1105SA EAN. 3414972720885
This 1 gang plate for 2x1 module slender switches in solid aluminum offers flush-mounted installation, halogen-free safety, and IK02 impact resistance. Its matt finish and snap fastening ensure refined wall integration.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate for 2x1 module slender switches in solid aluminum offers flush-mounted installation, halogen-free safety, and IK02 impact resistance. Its matt finish and snap fastening ensure refined wall integration.

Product characteristics
  • One-gang cover frame plate for 2x1-module switches, optimized for horizontal mounting in Arteor Advance installations
  • Solid aluminum construction with lacquered, matt surface for enhanced durability and muted reflection
  • Plates are made of real plain aluminum, halogen free and metal quality optimized for robust domestic switching applications
  • Slender 8.5mm depth profile delivering a refined, minimalist appearance that blends straight and organic lines
  • Snap-on fastening for flush-mounted installation, ensuring precise wall alignment with operating temperature range -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
