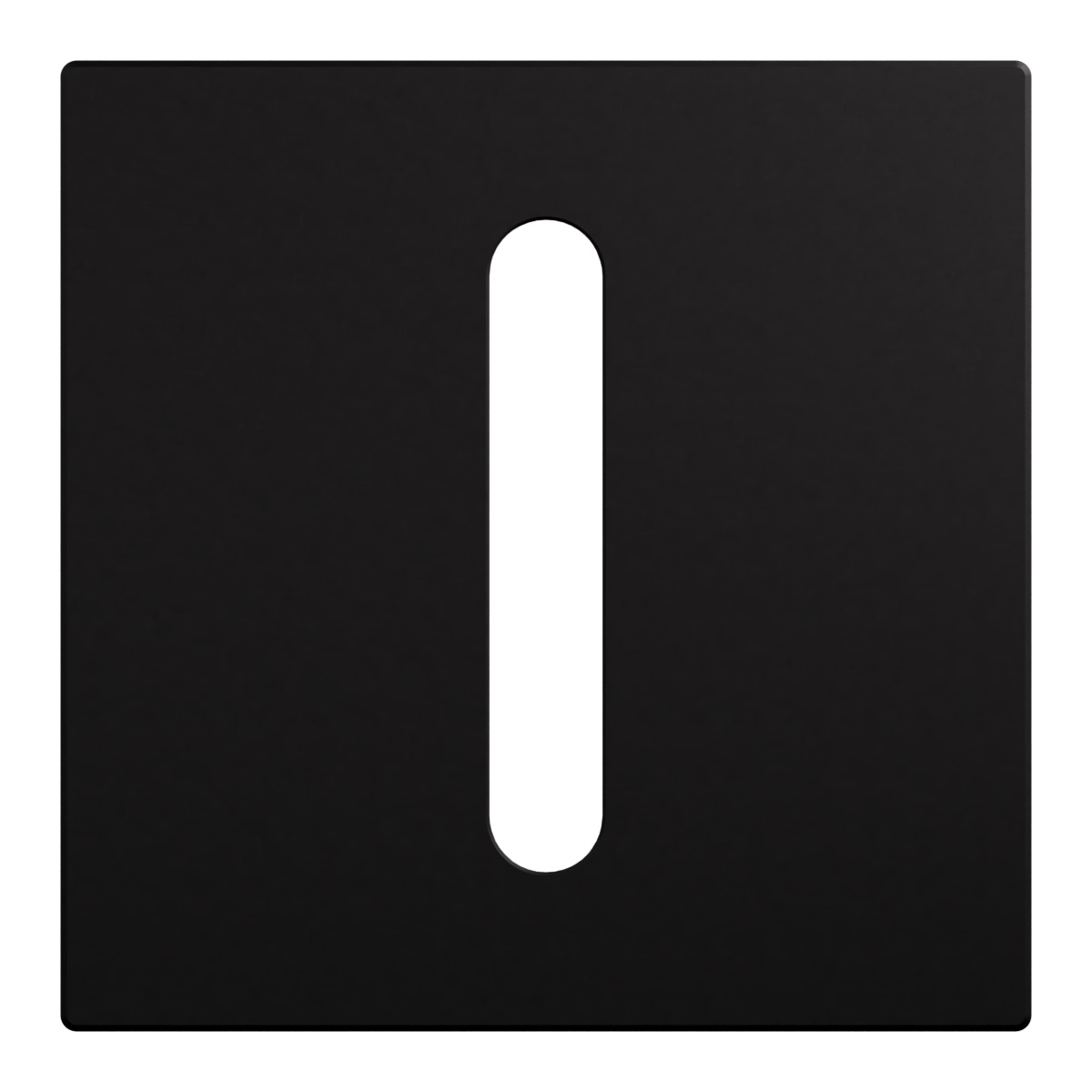

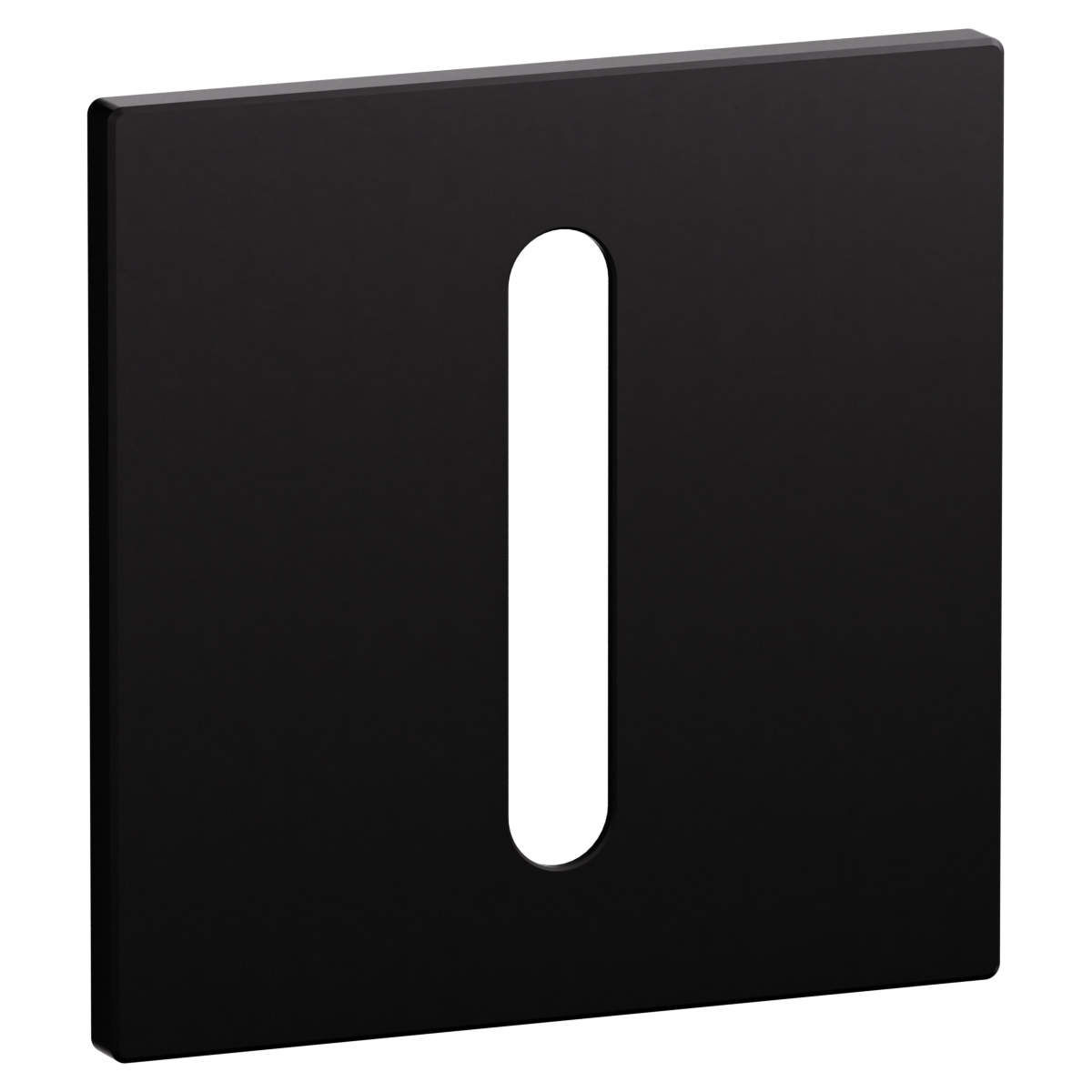

Arteor Advance - 1 gang plate for 1 module slender switch solid black - Matt lacquered aluminum - Flush-mounted refined design

Arteor Advance Legrand

Arteor Advance - 1 gang plate for 1 module slender switch solid black - Matt lacquered aluminum - Flush-mounted refined design

REF. AA1104SB EAN. 3414972973618
This 1 gang plate for 1 module slender switch in solid black offers refined matt aesthetics with a cool metal sensation. Its halogen-free lacquered aluminum construction and snap fastening ensure robust flush mounting.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate for 1 module slender switch in solid black offers refined matt aesthetics with a cool metal sensation. Its halogen-free lacquered aluminum construction and snap fastening ensure robust flush mounting.

Product characteristics
  • One-gang cover frame for a single-module domestic switching device, optimized for 1 horizontal or vertical unit.
  • Solid black finish with deep, uniform color for consistent visual integration in modern electrical installations.
  • Plate manufactured from lacquered aluminum, halogen free, with matt surface for a cool metal touch and enhanced durability.
  • Slender 8.5mm profile enabling a refined, low-projection appearance in flush-mounted wall installations.
  • Snap-on fastening for quick mounting, IK02 impact resistance, and operating temperature range from -5° C to 35° C for indoor use.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep black with a smooth matte aspect and cool sensation of metal
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
