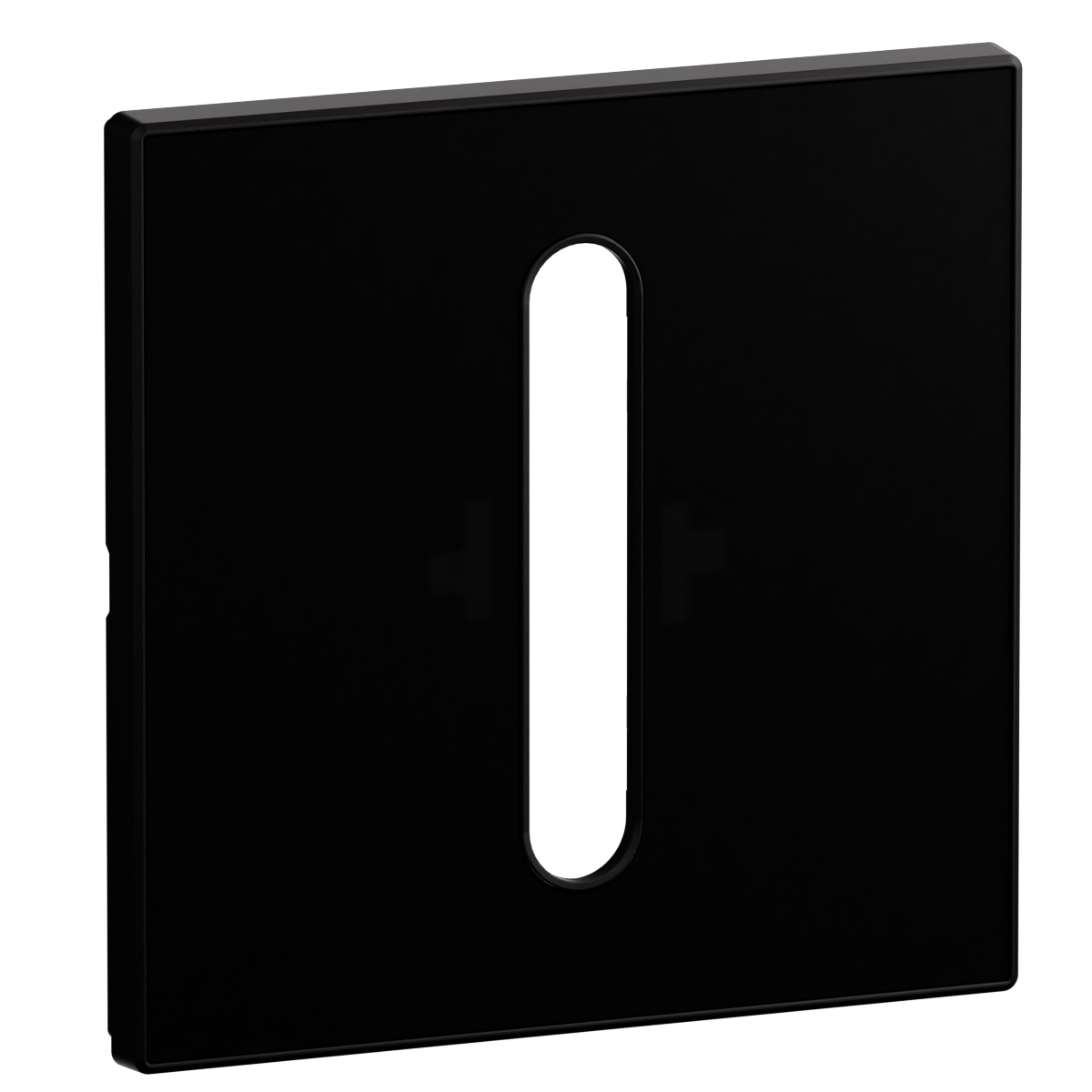

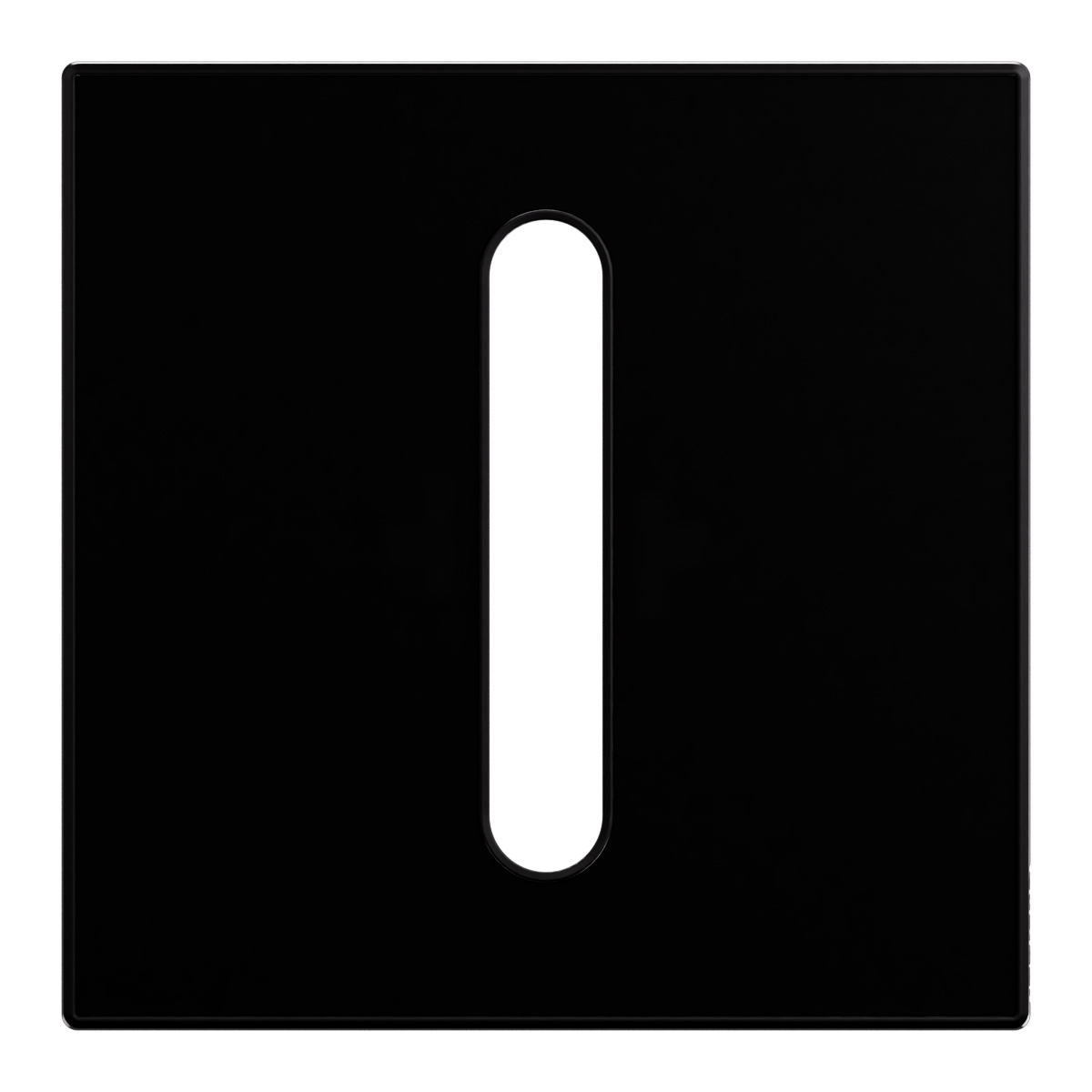

Arteor Advance - 1 gang plate for 1 module slender switch frosted black - Crystal polycarbonate matt finish

Arteor Advance Legrand

Arteor Advance - 1 gang plate for 1 module slender switch frosted black - Crystal polycarbonate matt finish

REF. AA1104FB EAN. 3414972720649
This 1 gang plate for 1 module slender switch in frosted black offers refined design with crystal polycarbonate construction for velvet touch and full opacity.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang plate for 1 module slender switch in frosted black offers refined design with crystal polycarbonate construction for velvet touch and full opacity.

Product characteristics
  • One-gang cover frame for 1-module slender switch, optimized for single-point control in domestic installations
  • Frosted black matte finish for reduced glare and refined visual integration with contemporary interiors
  • Crystal polycarbonate plate in a cradle structure, delivering high mechanical stability, black opacity, and velvet touch surface quality
  • Ultra-slender 8.5mm profile enabling a low-projection, flush-mounted aesthetic on standard wall boxes
  • Snap-on fastening without mounting grid, ensuring quick installation and precise wall alignment via integrated adjuster; recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
