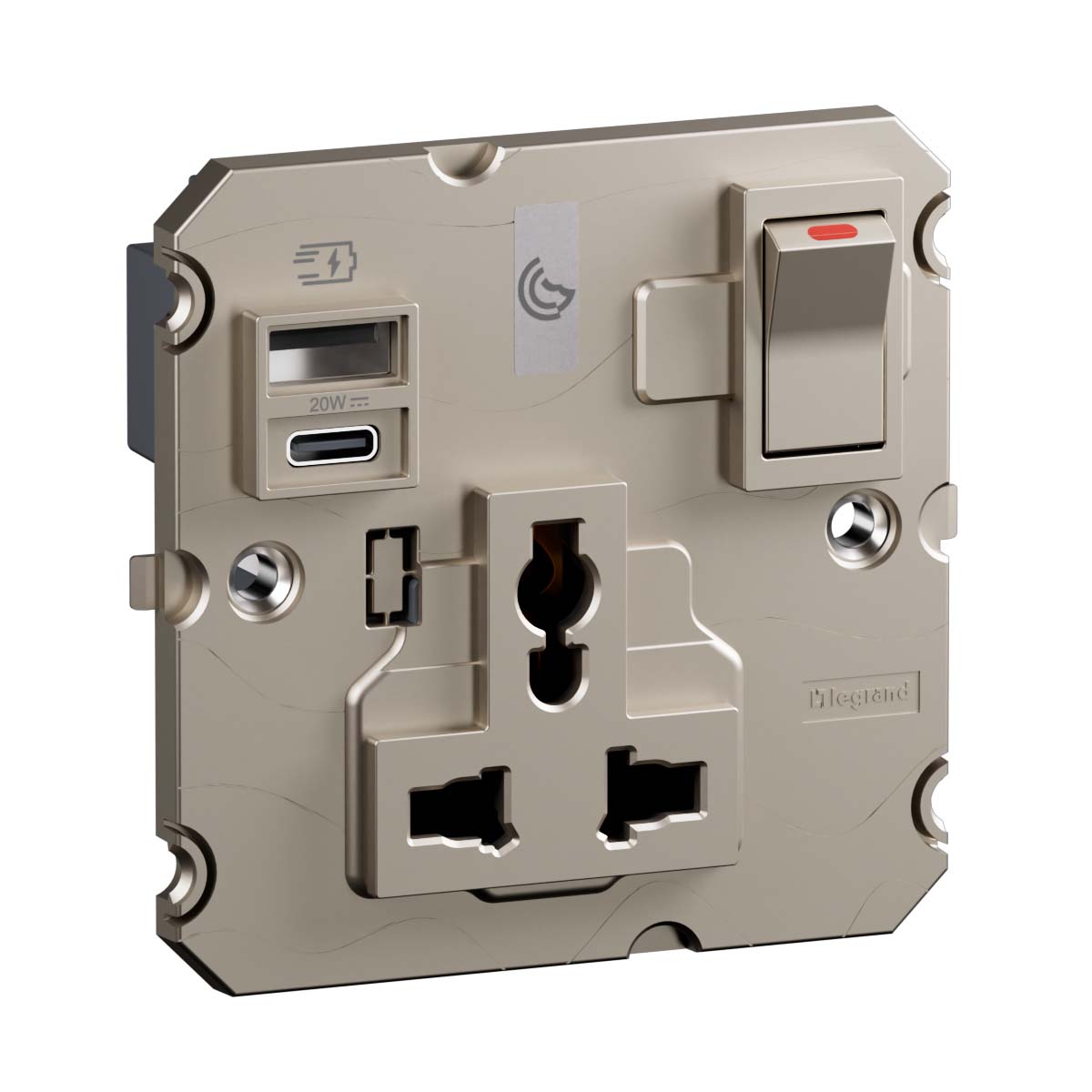

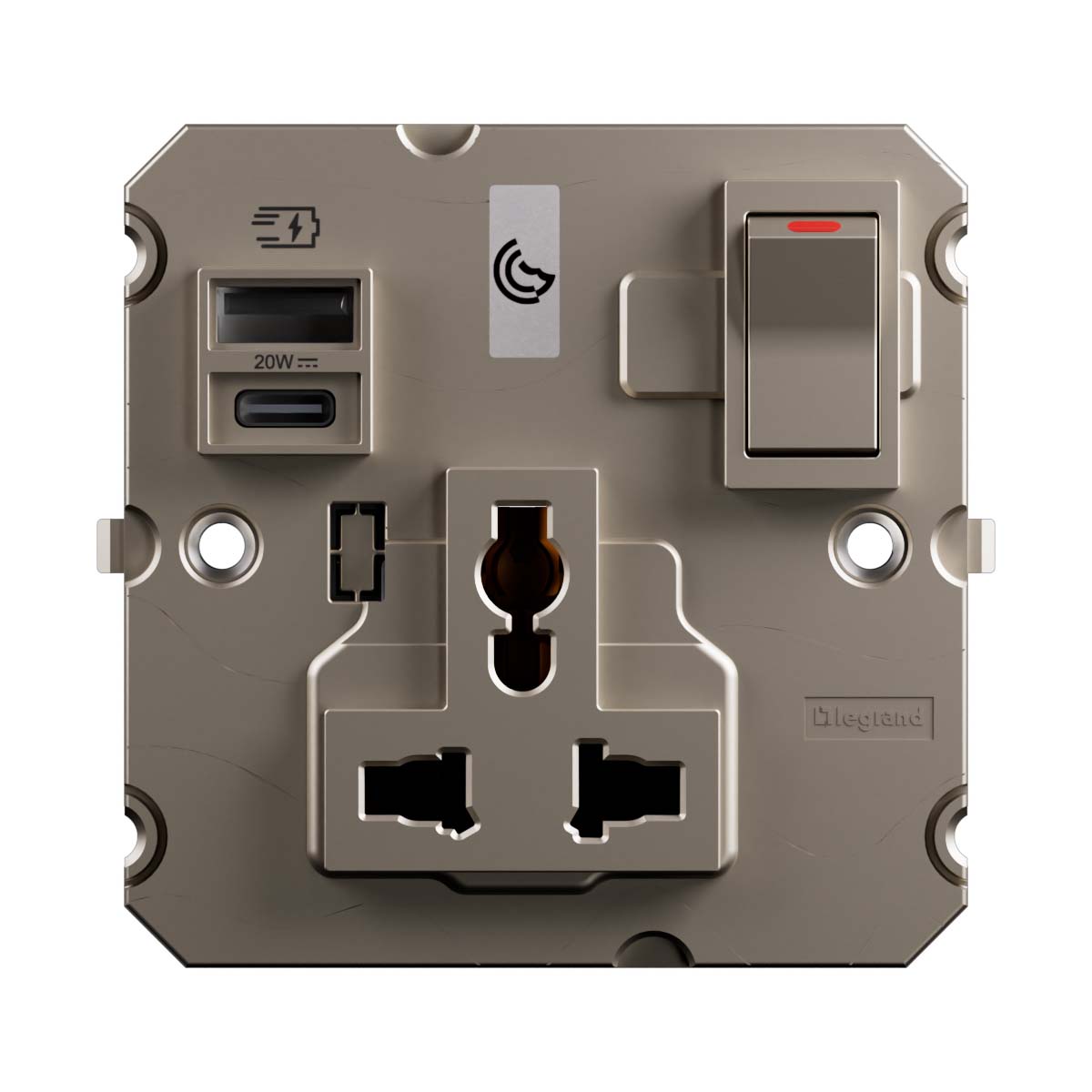

Arteor Advance - 1 gang multistandard switched socket power delivery 2 USB A+C 20W champagne - 250V AC - Flush-mounted IP20

Arteor Advance Legrand

Arteor Advance - 1 gang multistandard switched socket power delivery 2 USB A+C 20W champagne - 250V AC - Flush-mounted IP20

REF. AA3347CH EAN. 3414972921176
Combines a power outlet with USB-A and USB-C for easy charging, delivering up to 20W via USB power delivery. Its multi-standard 250V socket with safety shutters and fault current protection enhances safety.
Download product sheet
Finition :
Number of socket outlets :
You can only compare 4 products, you must remove 1 to add this one

Description

Combines a power outlet with USB-A and USB-C for easy charging, delivering up to 20W via USB power delivery. Its multi-standard 250V socket with safety shutters and fault current protection enhances safety.

Product characteristics
  • One-gang multistandard switched socket with integrated USB-A and USB-C ports delivering up to 20W total output for combined power and charging applications
  • Champagne gold, matt lacquered thermoplastic finish aligned with the Arteor Advance range for a premium, coordinated aesthetic
  • Integrated Power Delivery with 250V AC/DC supply and up to 3A USB current rating for fast, high-power charging of compatible devices
  • Clearly marked screwed terminals with terminal marking indication and 1mm² to 6mm² flexible or rigid cable capacity for fast, error-free wiring
  • Flush-mounted IP20 socket outlet with 1 switchable outlet, fault current protection, miniature fuse, and safety shutters for enhanced indoor user safety
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximize protection
Avantages
  • All-in-one convenience for powering and charging devices.
  • Warm gray finish infused with ivory hues highlights silky elegance
  • Compact design integrating USB ports efficiently

Technical characteristics

Model Multi-standard socket
Concurrently switching neutral conductor No
Protective contact Other
Number of active contacts (round) 2
Number of active contacts (flat) 2
Number of active contacts (square) 2
Mounting direction Horizontal and vertical
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 1
Number of empty module positions 1
Max. current rating of USB power supply 3 A
Number of socket outlets 1
Socket outlets phase-separated No
Number of socket outlets switchable 1
Connection type Screwed terminal
Label space/information surface Yes
Colour Gold
Transparent No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection Yes
With miniature fuse Yes
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch Yes
Colour of switch operator Gold
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 83.5 mm
Device height 78.5 mm
Device depth 37.7 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
Compliant with UK Building Regulations Part M Yes
Built-in depth 26.6 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC/DC
Power Delivery Yes
USB Output Power 20 W
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-6 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-6 mm²
Connected object No
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
