Arteor Advance - 1 gang British Standard plate for 13A unswitched socket - Real brushed stainless steel matt finish - Flush-mounted

Arteor Advance Legrand

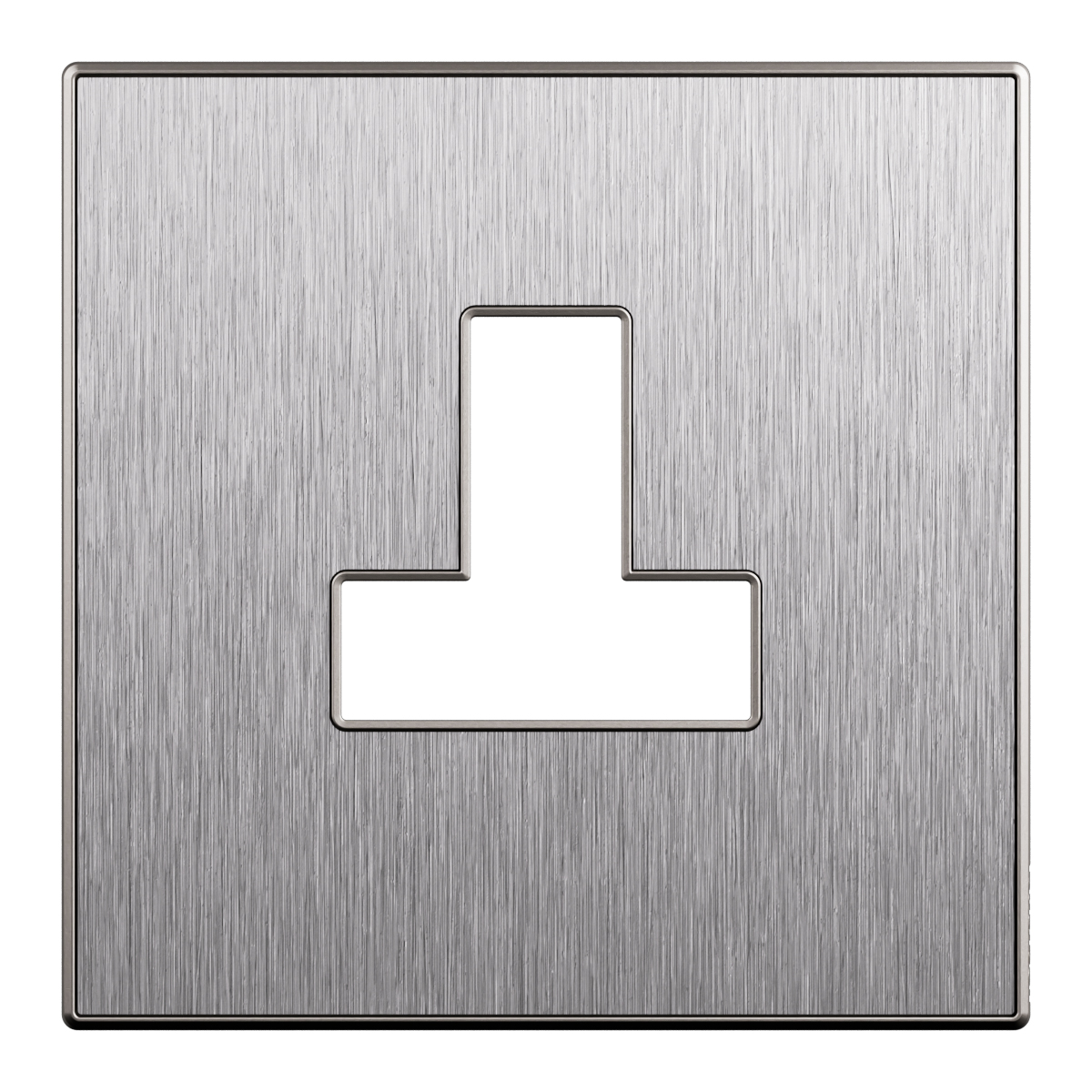

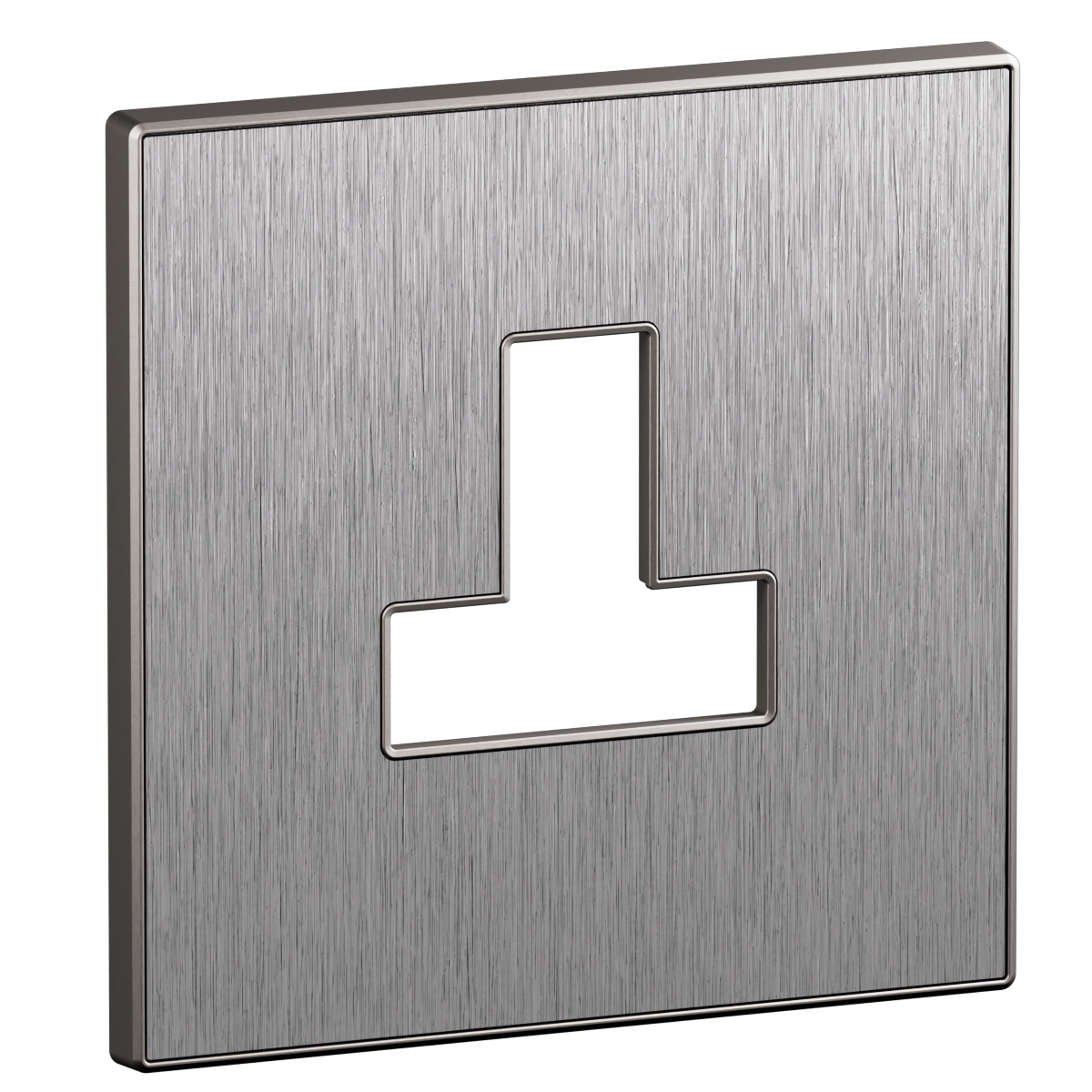

Arteor Advance - 1 gang British Standard plate for 13A unswitched socket - Real brushed stainless steel matt finish - Flush-mounted

REF. AA1102BS EAN. 3414972720083
This 1 gang Arteor Advance British Standard plate features a refined, slender monobloc design in real brushed, halogen-free matt stainless steel. Ideal for durable flush-mounted 13A unswitched socket installations in interior environments.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang Arteor Advance British Standard plate features a refined, slender monobloc design in real brushed, halogen-free matt stainless steel. Ideal for durable flush-mounted 13A unswitched socket installations in interior environments.

Product characteristics
  • One-gang British Standard plate for 13A unswitched socket, 1 unit, horizontal or vertical mounting
  • Brushed stainless steel metal plate with matt surface finish for a refined, professional appearance
  • Plates are made of real brushed stainless steel, halogen free and IK02 impact rated for robust performance
  • Slender monobloc cover frame design with snap fastening for flush-mounted installation
  • Operating temperature range -5° C to 35° C and storage temperature range -10° C to 70° C, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04499EN-01.pdf pdf (0.51 Mo)
