Arteor Advance - 1 gang British standard plate for 13A unswitched socket - Pink matt thermoplastic plate - Flush-mounted design

Arteor Advance Legrand

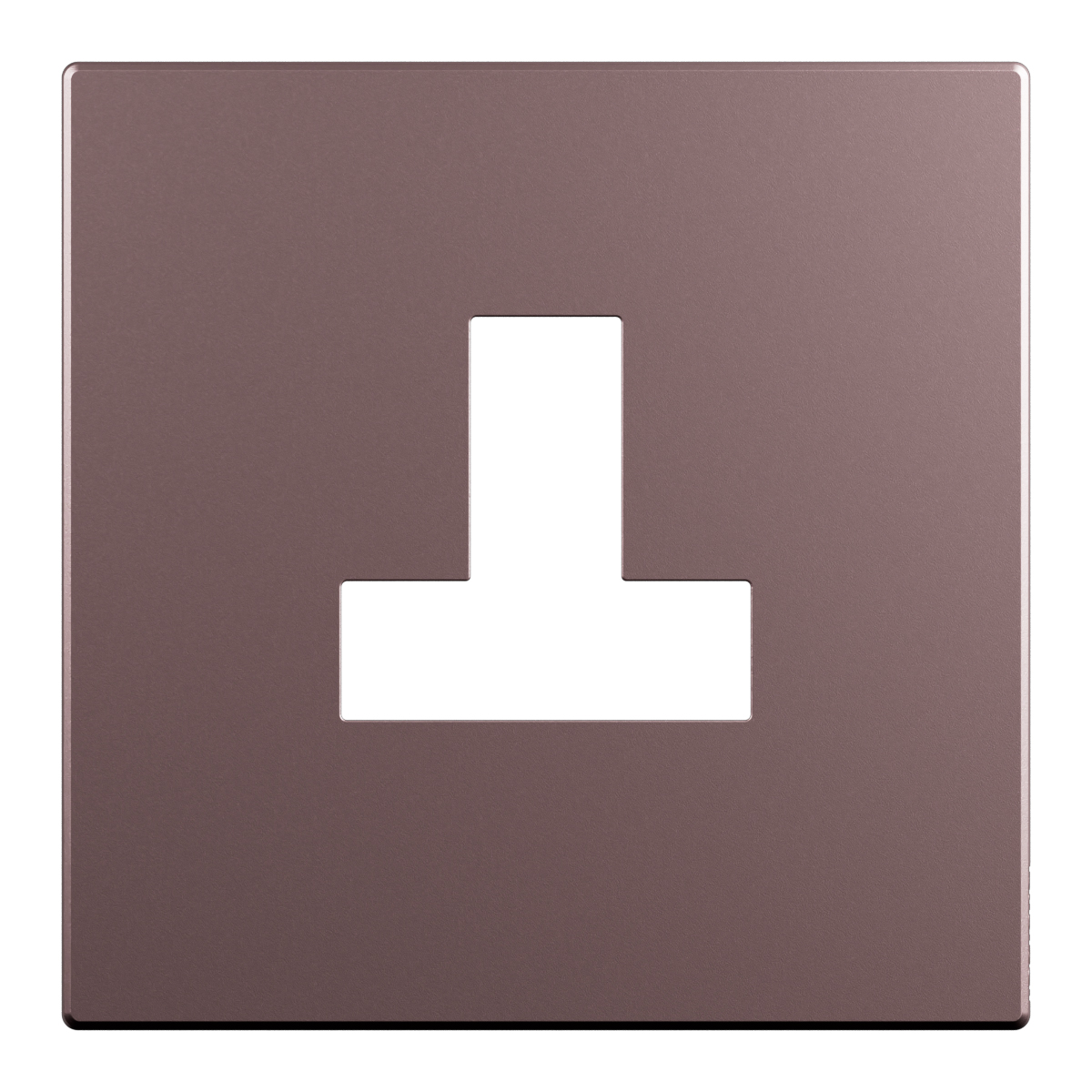

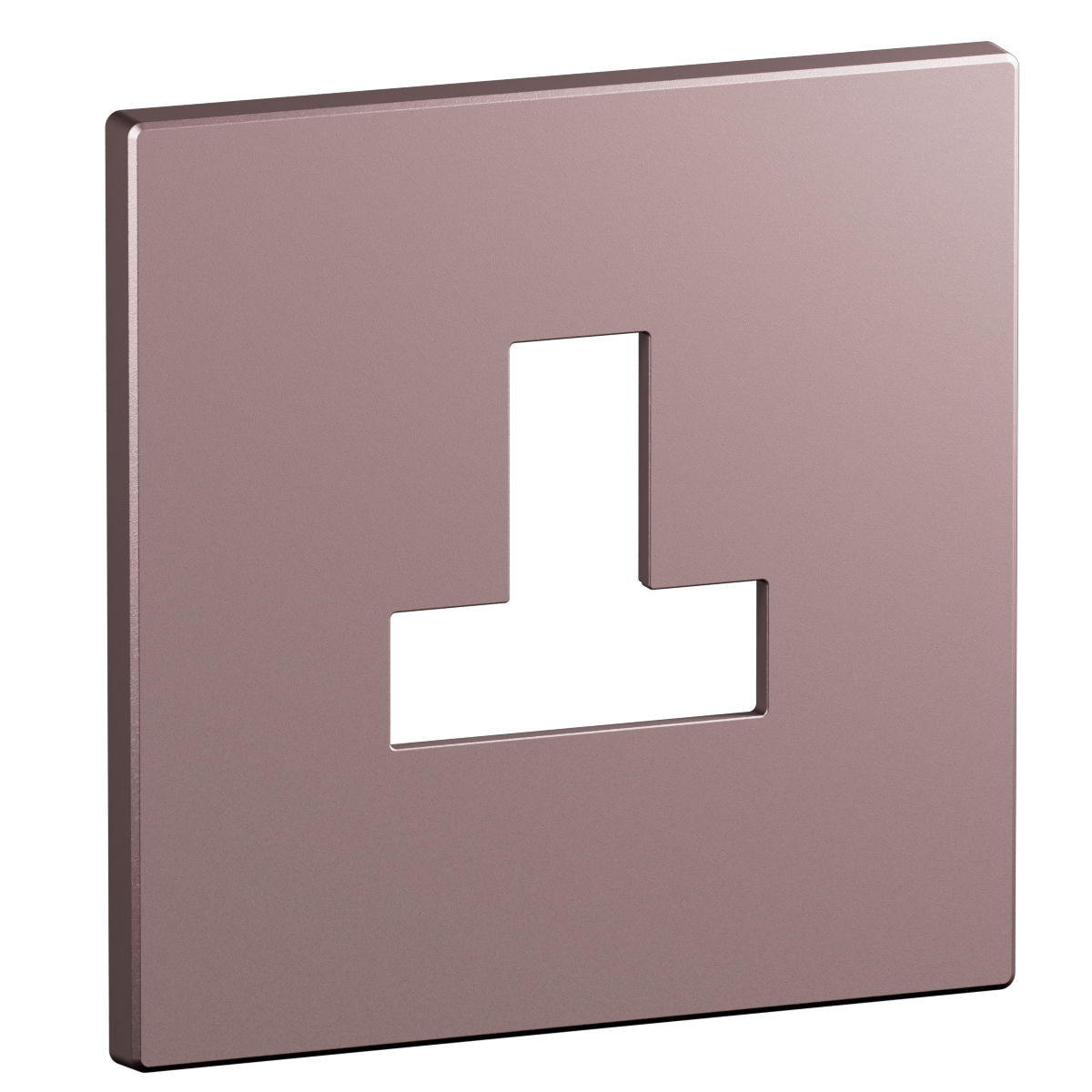

Arteor Advance - 1 gang British standard plate for 13A unswitched socket - Pink matt thermoplastic plate - Flush-mounted design

REF. AA1102RS EAN. 3414972918893
This 1 gang British Standard plate for 13A unswitched socket rose delivers flush-mounted, snap-on installation and IK02 impact resistance. Its halogen-free thermoplastic construction with lacquered matt pink finish offers a minimalist
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang British Standard plate for 13A unswitched socket rose delivers flush-mounted, snap-on installation and IK02 impact resistance. Its halogen-free thermoplastic construction with lacquered matt pink finish offers a minimalist

Product characteristics
  • One-gang British Standard plate designed for a single 13A unswitched socket outlet
  • Rose (pink) matt lacquered finish providing a subtle blush aesthetic within the Arteor Advance range
  • Plate manufactured from halogen-free thermoplastic polycarbonate for enhanced mechanical strength and safety
  • Slender monobloc cover frame for flush-mounted horizontal installation with snap-on fastening
  • 90x90x8mm compact plate with IK02 impact resistance, operating temperature range -5° C to 35° C, recommended for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Pink finish evoking subtle blush effect
  • Minimalist design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Pink
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04498EN-01.pdf pdf (0.51 Mo)
