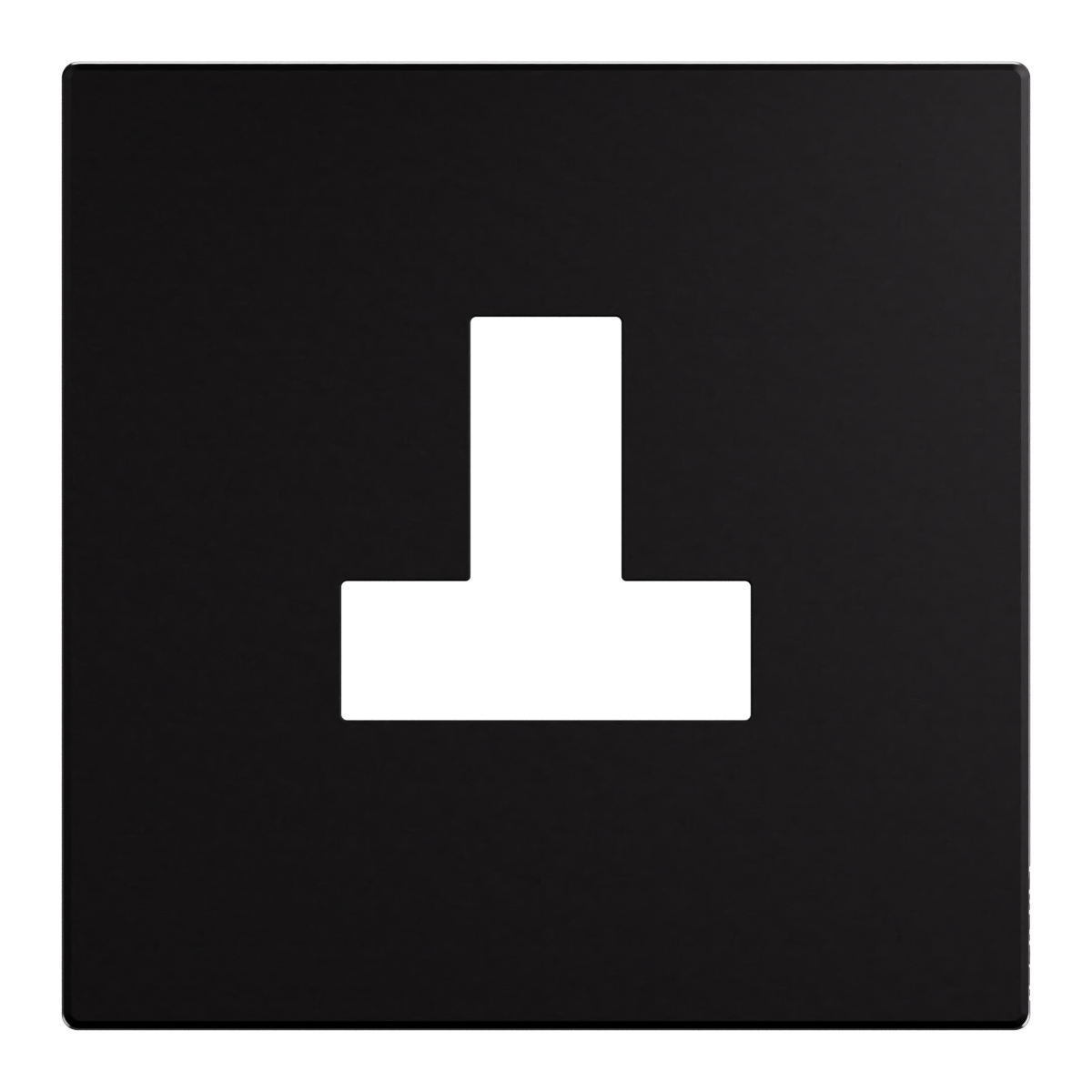

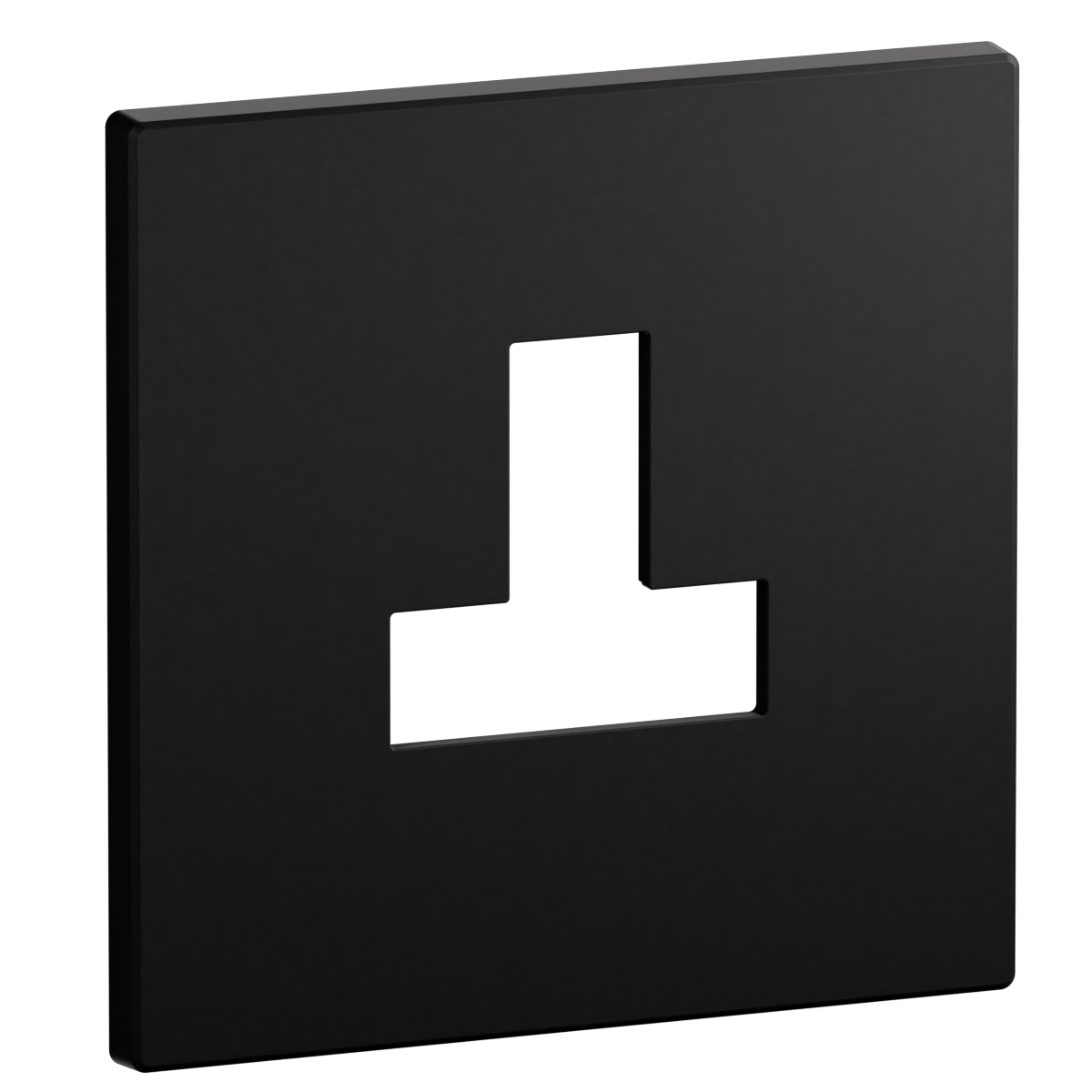

Arteor Advance - 1 gang British Standard plate for 13A unswitched socket matt black - Flush-mounted thermoplastic minimalist design

Arteor Advance Legrand

Arteor Advance - 1 gang British Standard plate for 13A unswitched socket matt black - Flush-mounted thermoplastic minimalist design

REF. AA1102MB EAN. 3414972720205
This 1 gang British Standard plate for 13A unswitched sockets delivers a deep black matt finish in robust thermoplastic. Its slender monobloc design supports flush-mounted installation and snap fastening, with halogen-free construction.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang British Standard plate for 13A unswitched sockets delivers a deep black matt finish in robust thermoplastic. Its slender monobloc design supports flush-mounted installation and snap fastening, with halogen-free construction.

Product characteristics
  • One-gang British Standard plate for 13A unswitched socket outlets, optimized for single-point power distribution
  • Deep matt black finish for reduced glare and seamless integration in contemporary electrical installations
  • Plate manufactured from thermoplastic polycarbonate, halogen free and impact rated IK02 for robust, safe operation
  • Slender monobloc design with 8mm depth for a minimalist, flush-mounted appearance in Arteor Advance installations
  • Horizontal flush-mounted cover frame, 1 unit (2 modules horizontal x 1 module vertical), snap-on fastening, for indoor use from -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Deep black with a smooth matt aspect
  • Minimalist design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04498EN-01.pdf pdf (0.51 Mo)
