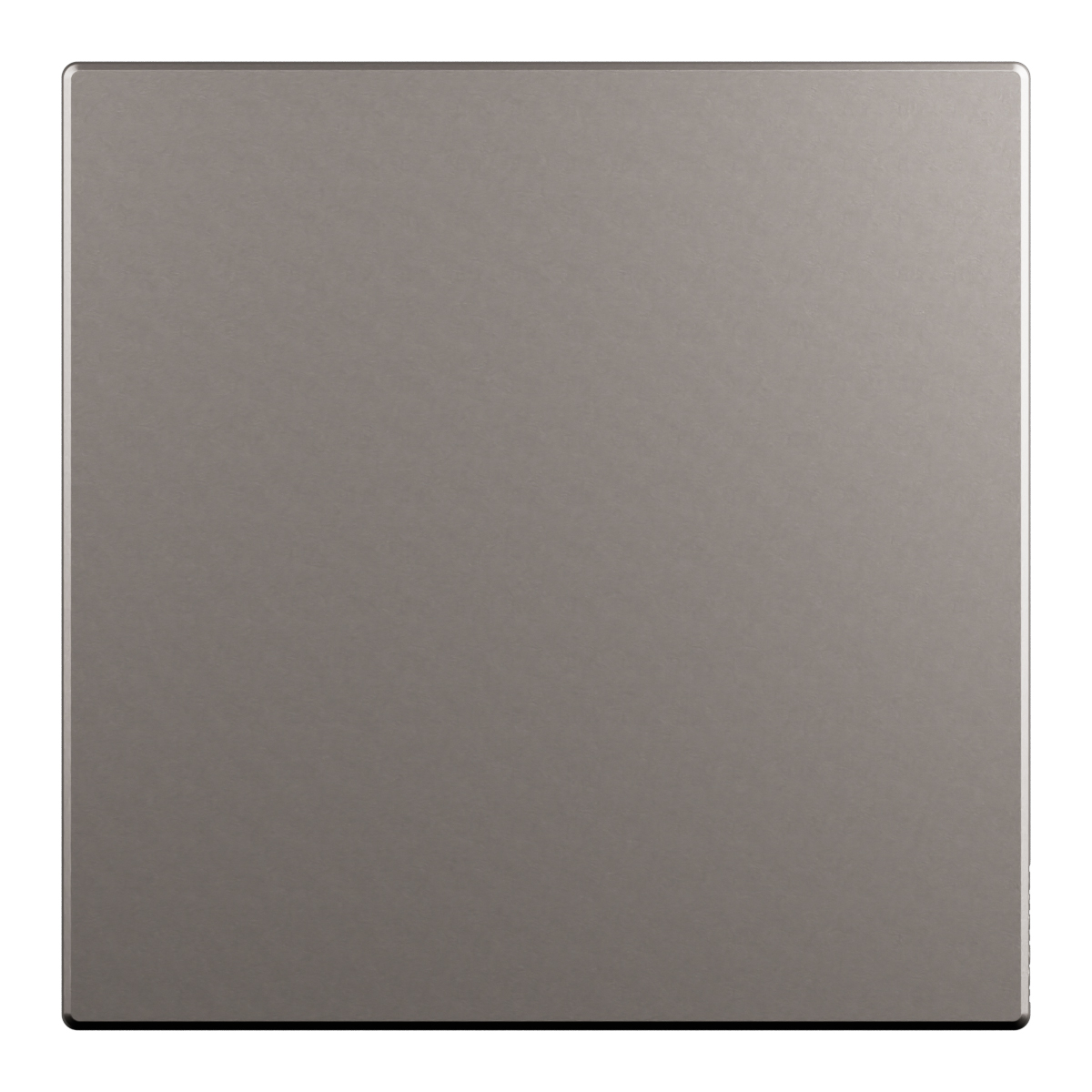

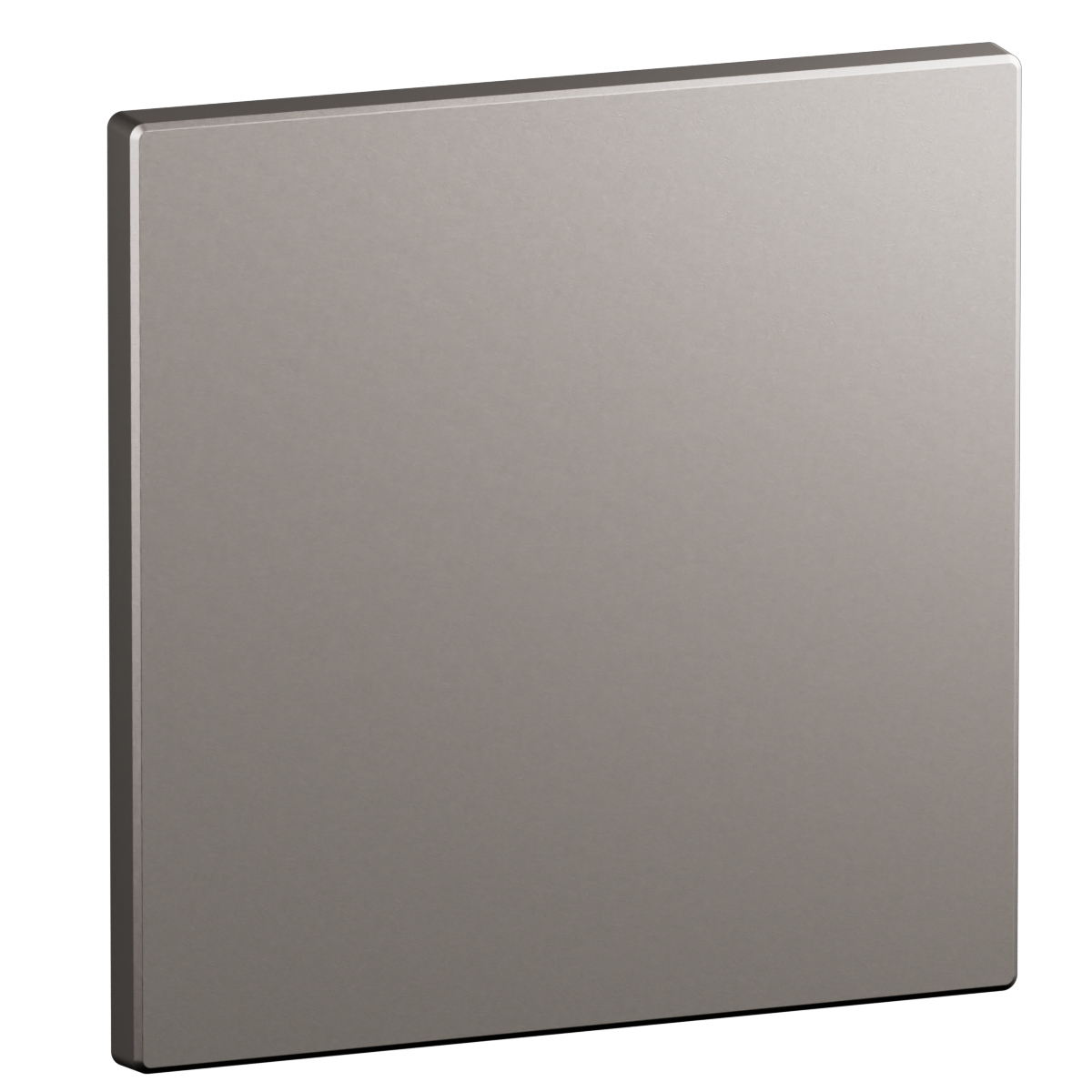

Arteor Advance - 1 gang British Standard blanking plate matt titanium - Square polycarbonate plate - Flush-mounted snap-on installation

Arteor Advance Legrand

Arteor Advance - 1 gang British Standard blanking plate matt titanium - Square polycarbonate plate - Flush-mounted snap-on installation

REF. AC1501MT EAN. 3414972739863
This 1 gang British Standard blanking plate in matt titanium delivers minimalist square design and modular flexibility in a compact 90x90x8mm format.
Download product sheet
Finition :
Number of units :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang British Standard blanking plate in matt titanium delivers minimalist square design and modular flexibility in a compact 90x90x8mm format.

Product characteristics
  • One-gang British Standard blanking plate for domestic switching devices, providing a single cover point in the installation grid
  • Matt titanium finish for a contemporary, low-glare aesthetic that coordinates with Arteor Advance devices
  • Plate manufactured from thermoplastic polycarbonate, halogen free and impact rated IK02 for robust, safe use
  • Square 90x90mm form factor with 8mm depth, enabling modularity and flexibility in compact configurations
  • Flush-mounted, snap-on fastening design for precise in-wall installation; recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Titanium with a smooth matte aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 0
Number of modules vertical (module system) 0
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04610EN-00.pdf pdf (0.49 Mo)
