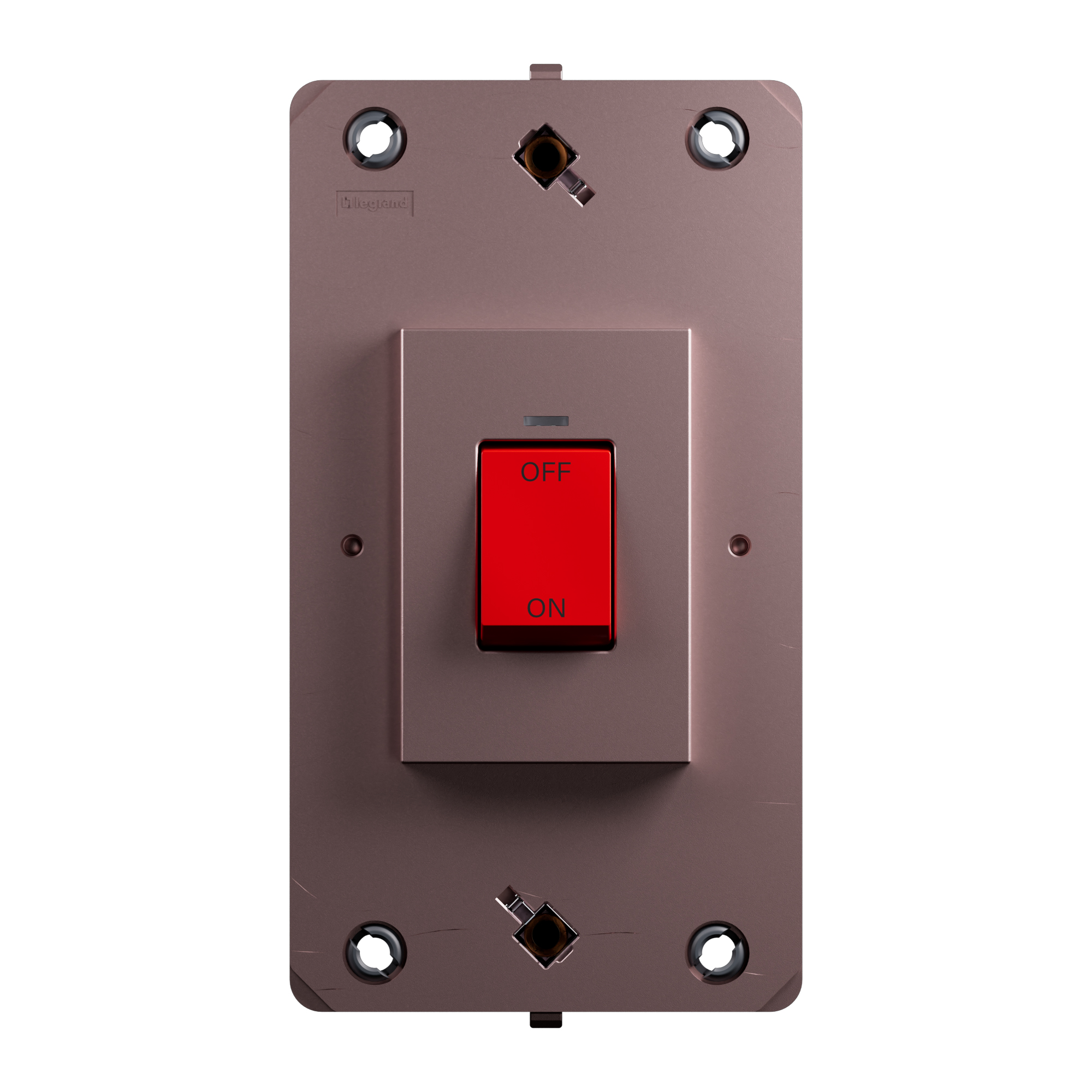

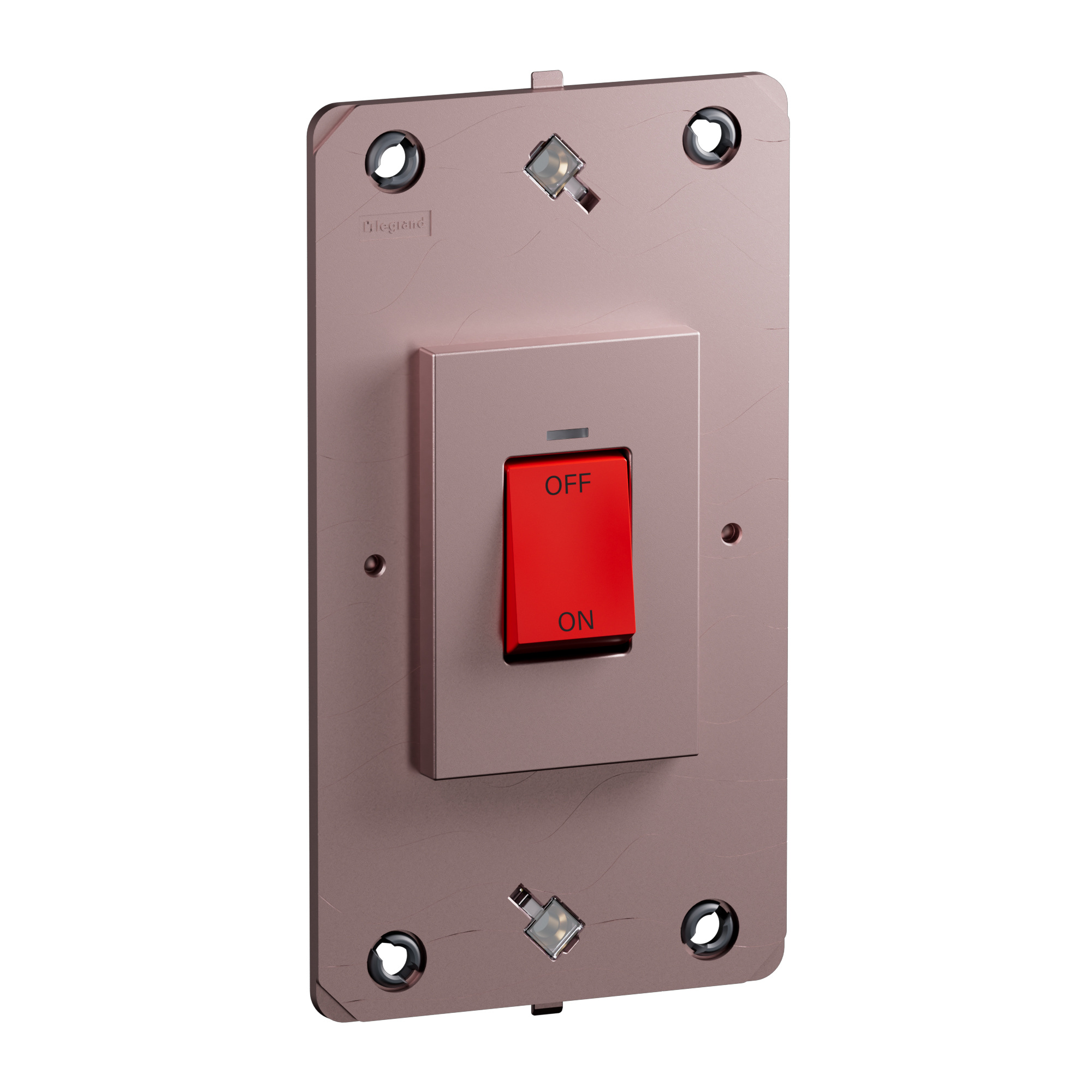

Arteor Advance - 1 gang 45A double pole switch with LED indicator - 45A 250V AC high-load control - Flush-mounted screw terminals

Arteor Advance Legrand

Arteor Advance - 1 gang 45A double pole switch with LED indicator - 45A 250V AC high-load control - Flush-mounted screw terminals

REF. AC20102RS EAN. 3414972922708
The power control switch safely turns high-powered equipment on and off, combining a 45A 250V AC double pole mechanism with screw terminals and glow indicator, while the flush-mounted thermoplastic body delivers durable indoor IP20
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The power control switch safely turns high-powered equipment on and off, combining a 45A 250V AC double pole mechanism with screw terminals and glow indicator, while the flush-mounted thermoplastic body delivers durable indoor IP20

Product characteristics
  • 1 gang 45A double pole switch for high-load power control on 250V AC circuits
  • Vertical rose configuration matching Arteor Advance aesthetic for coordinated installations
  • Integrated glow-lamp indicator for clear control and orientation status in low-light conditions
  • Flush-mounted rocker lever mechanism with screw terminals for secure 6mm² to 10mm² flexible or rigid conductors
  • Monobloc thermoplastic, halogen-free body with matt lacquered finish, IP20 and IK04 rated for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker lever
Assembly arrangement Basic element with adaptor plate
Push button switch No
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Colour of switch operator Red
Lighting Yes
Function lighting Illuminated (on)
Type of lighting Glow lamp
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 45 A
Switching current for fluorescent lamps 45 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 149.5 mm
Device height 79.5 mm
Device depth 34 mm
Built-in depth 21.6 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 6-10 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 6-10 mm²
