Arteor Advance - 1 gang 45A cable outlet rose - Flush-mounted appliance connection box - Screw terminal - Thermoplastic halogen free

Arteor Advance Legrand

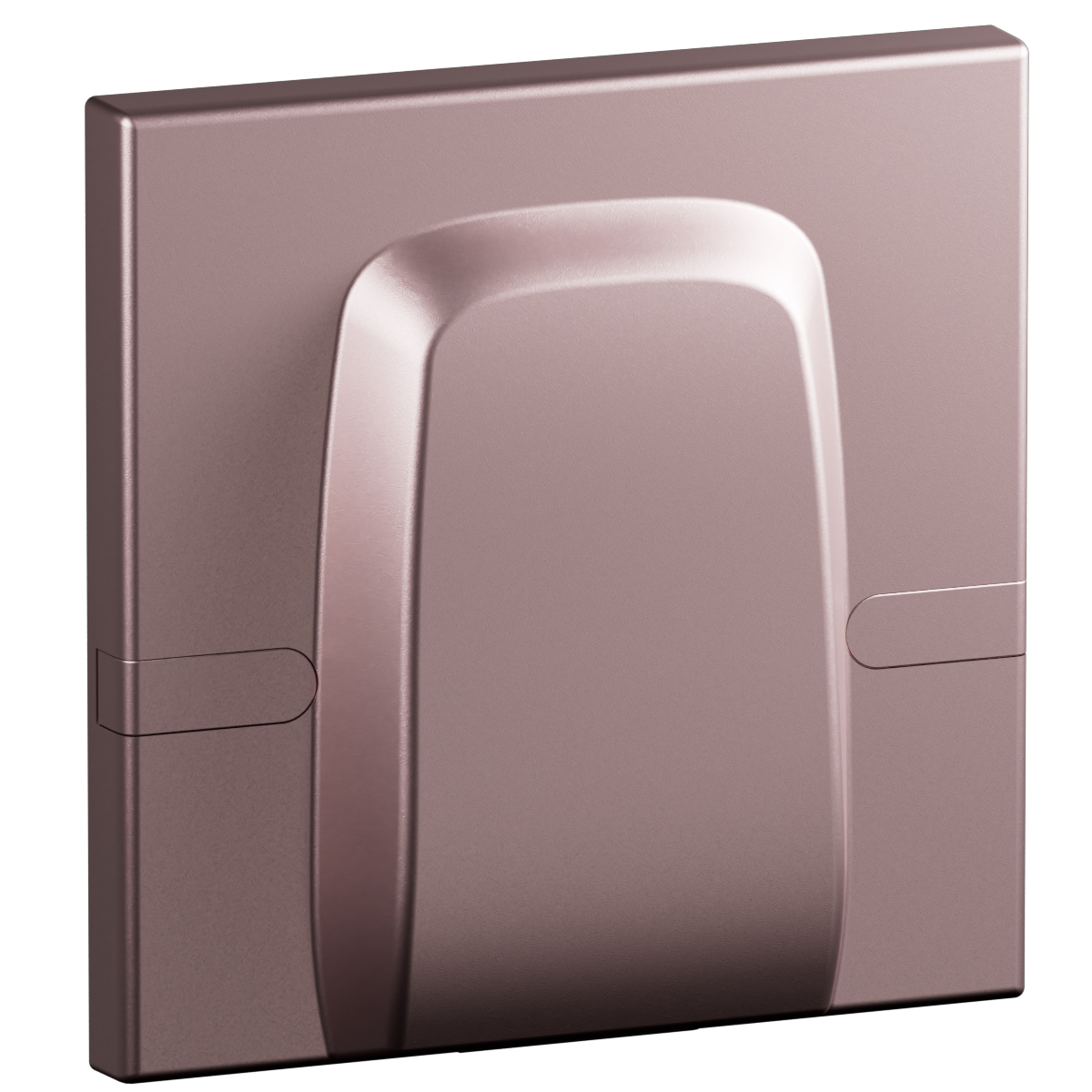

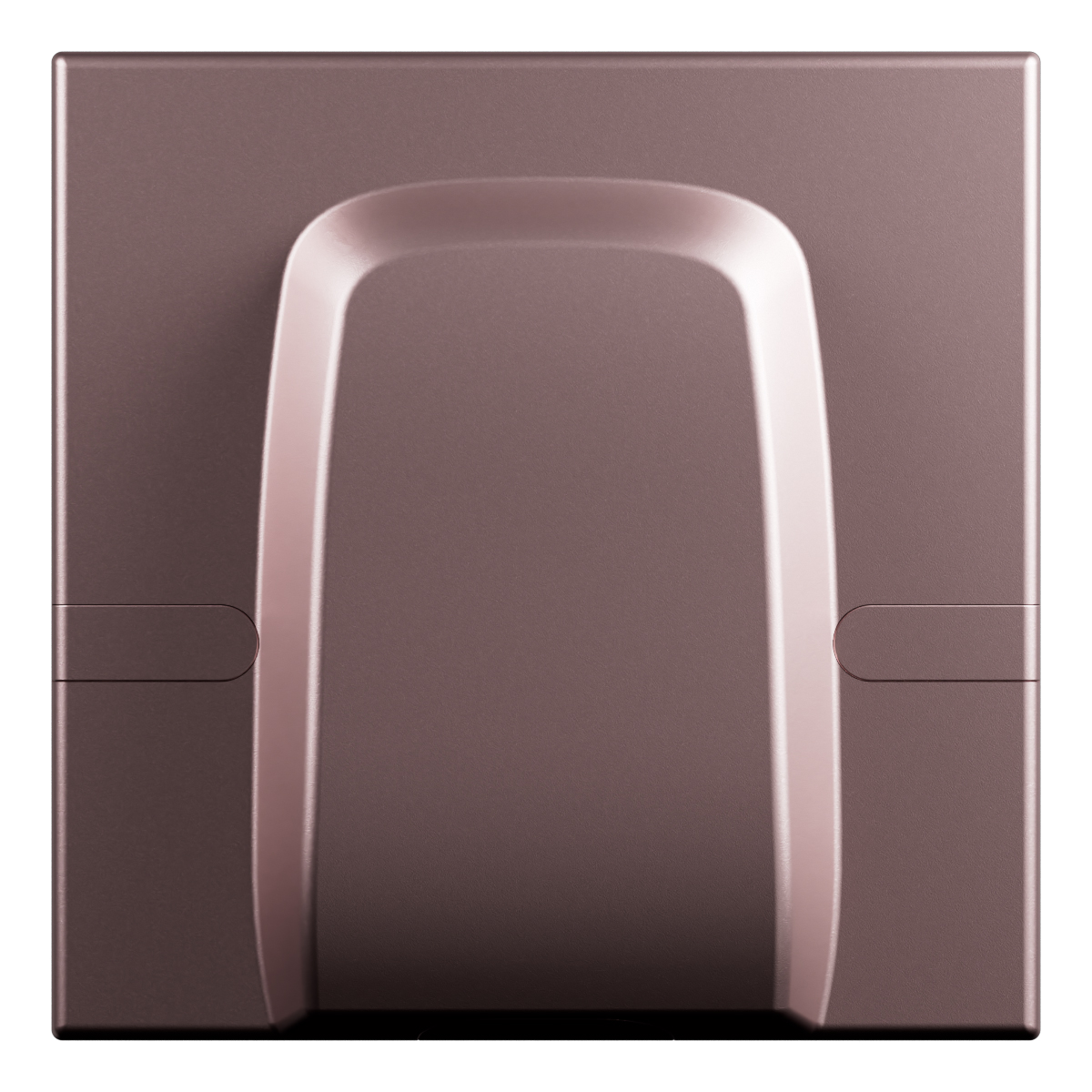

Arteor Advance - 1 gang 45A cable outlet rose - Flush-mounted appliance connection box - Screw terminal - Thermoplastic halogen free

REF. AC352RS EAN. 3414972926690
The socket outlet allows a cord to be connected through a one gang 45A cable outlet rose. Its flush-mounted design with screwed terminals ensures secure wiring. Thermoplastic, halogen-free construction and IK04 robustness suit
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

The socket outlet allows a cord to be connected through a one gang 45A cable outlet rose. Its flush-mounted design with screwed terminals ensures secure wiring. Thermoplastic, halogen-free construction and IK04 robustness suit

Product characteristics
  • One-gang 45A cable outlet appliance connection box for high-load circuits
  • Rose finish front plate providing a distinctive aesthetic within the Arteor Advance range
  • Flush-mounted thermoplastic, halogen-free construction with IP20 rating for indoor use
  • Screw-type terminal connection system for secure, reliable wiring and easy installation
  • Compact square format (approx. 90x90x44.2mm, 25.2mm built-in depth) enabling modular wall integration
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Pink finish evoking subtle blush effect
  • The square format enables modularity

Technical characteristics

Mounting method Flush-mounted
Clamps Other
Connection system Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Colour Other
Suitable for degree of protection (IP) IP20
Device width 90 mm
Device height 90 mm
Device depth 44.2 mm
Built-in depth 25.2 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No

Documentation

2 documents
RoHS DIRECTIVE
REACH DECLARATION
1 document
BIM Data
