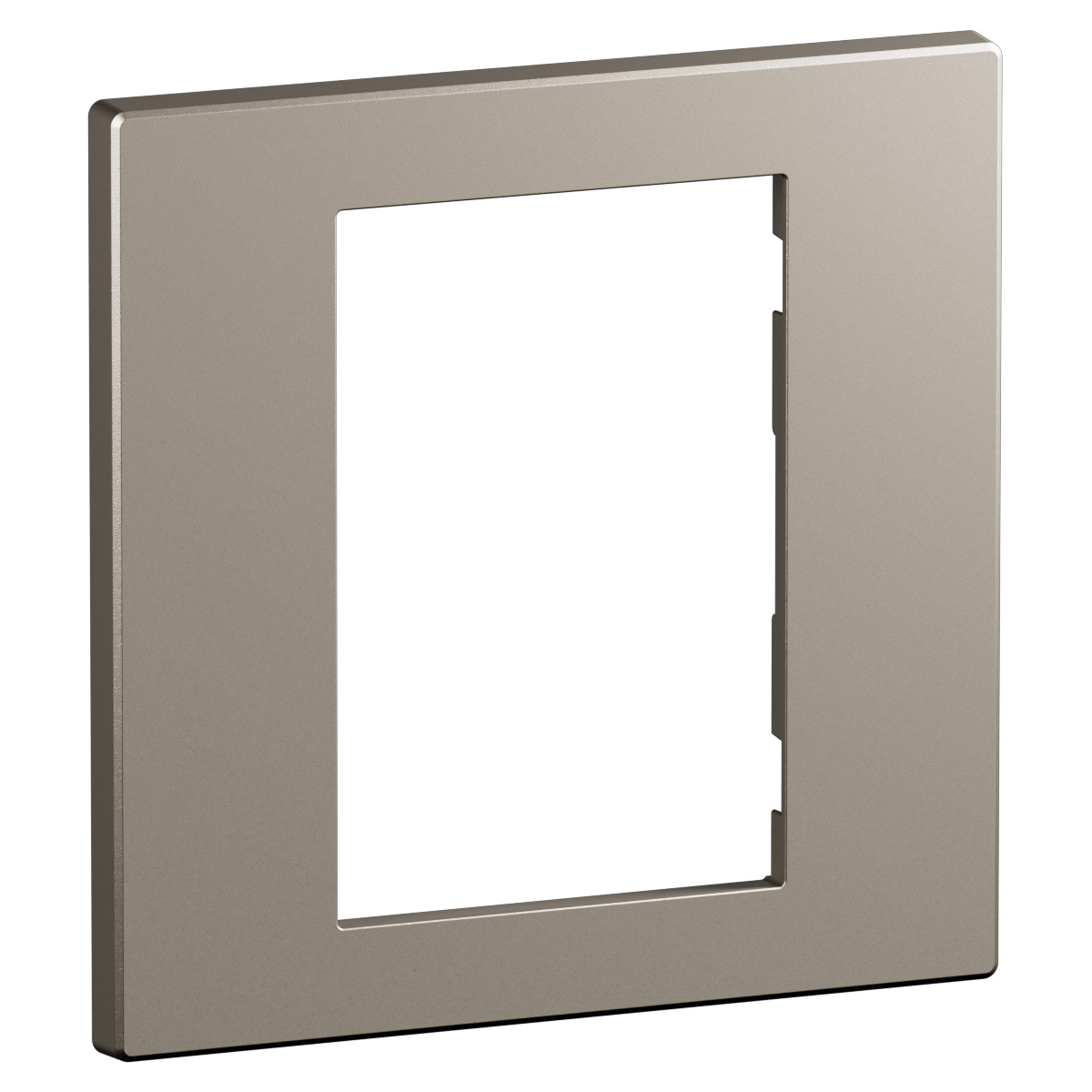

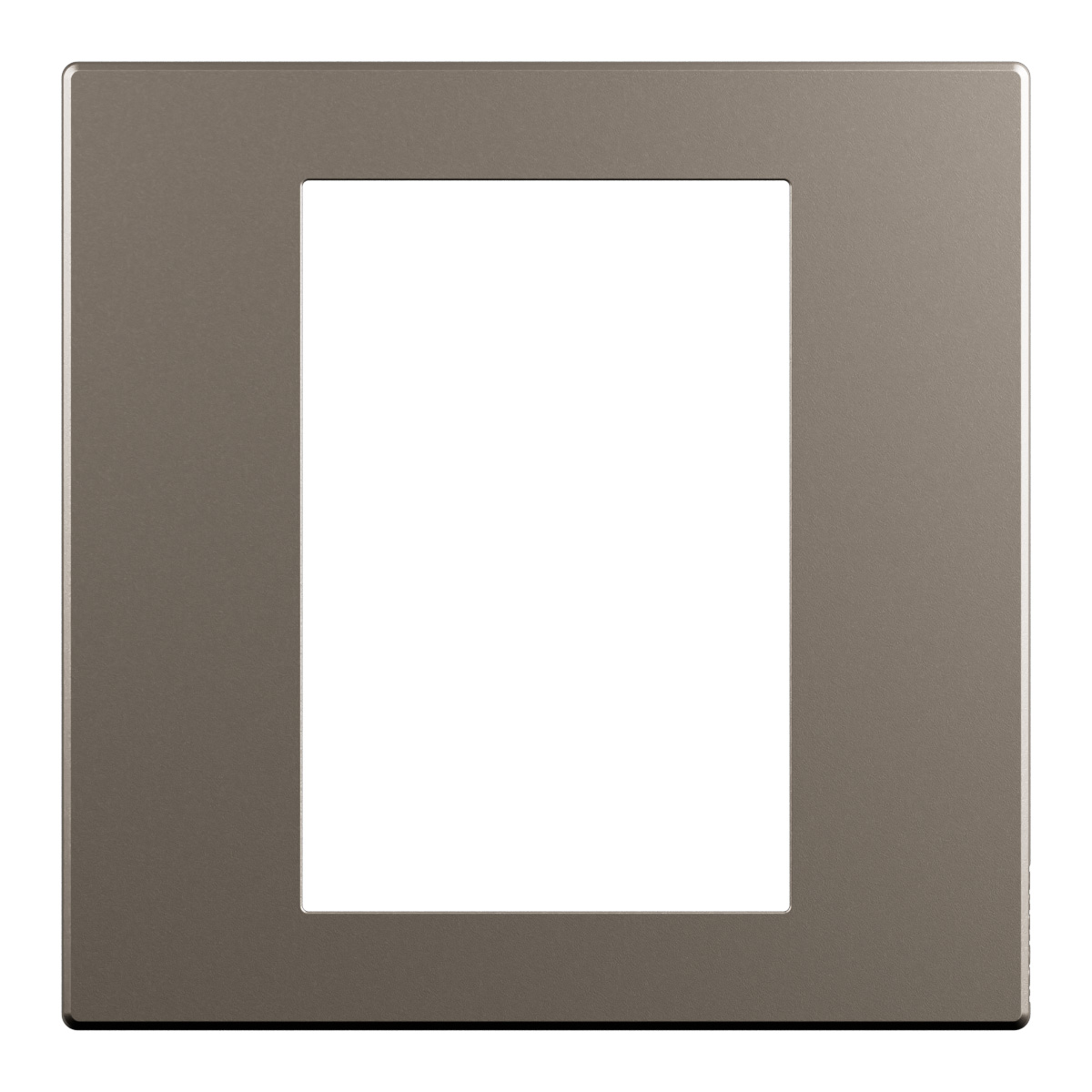

Arteor Advance - 1 gang 3 modules British standard plate - Solid champagne matt lacquered aluminum - Square modular design

Arteor Advance Legrand

Arteor Advance - 1 gang 3 modules British standard plate - Solid champagne matt lacquered aluminum - Square modular design

REF. AC1104SC EAN. 3414972976527
This 1 gang, 3 modules British Standard plate features a solid champagne, matt lacquered aluminum finish and minimalist square design. Its snap fastening, flush-mounted installation and halogen-free construction support reliable indoor use
Download product sheet
Finition :
Number of units horizontal :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang, 3 modules British Standard plate features a solid champagne, matt lacquered aluminum finish and minimalist square design. Its snap fastening, flush-mounted installation and halogen-free construction support reliable indoor use

Product characteristics
  • One-gang, three-module British Standard cover frame enabling compact multi-function configurations
  • Solid champagne matt lacquered finish in warm gray-gold tone for a refined metallic aesthetic
  • Cover plate manufactured from lacquered aluminum, halogen free and non-transparent for robust, safe installations
  • Square 90x90mm form factor with 8.5mm depth for minimalist, flush-mounted wall integration
  • Horizontal/vertical mounting flexibility with snap fastening, IK02 impact resistance, and -5 to 35° C operating temperature range for reliable indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
