Arteor Advance - 1 gang 3 modules British standard plate matt titanium - Square polycarbonate cover frame - Matt titanium design

Arteor Advance Legrand

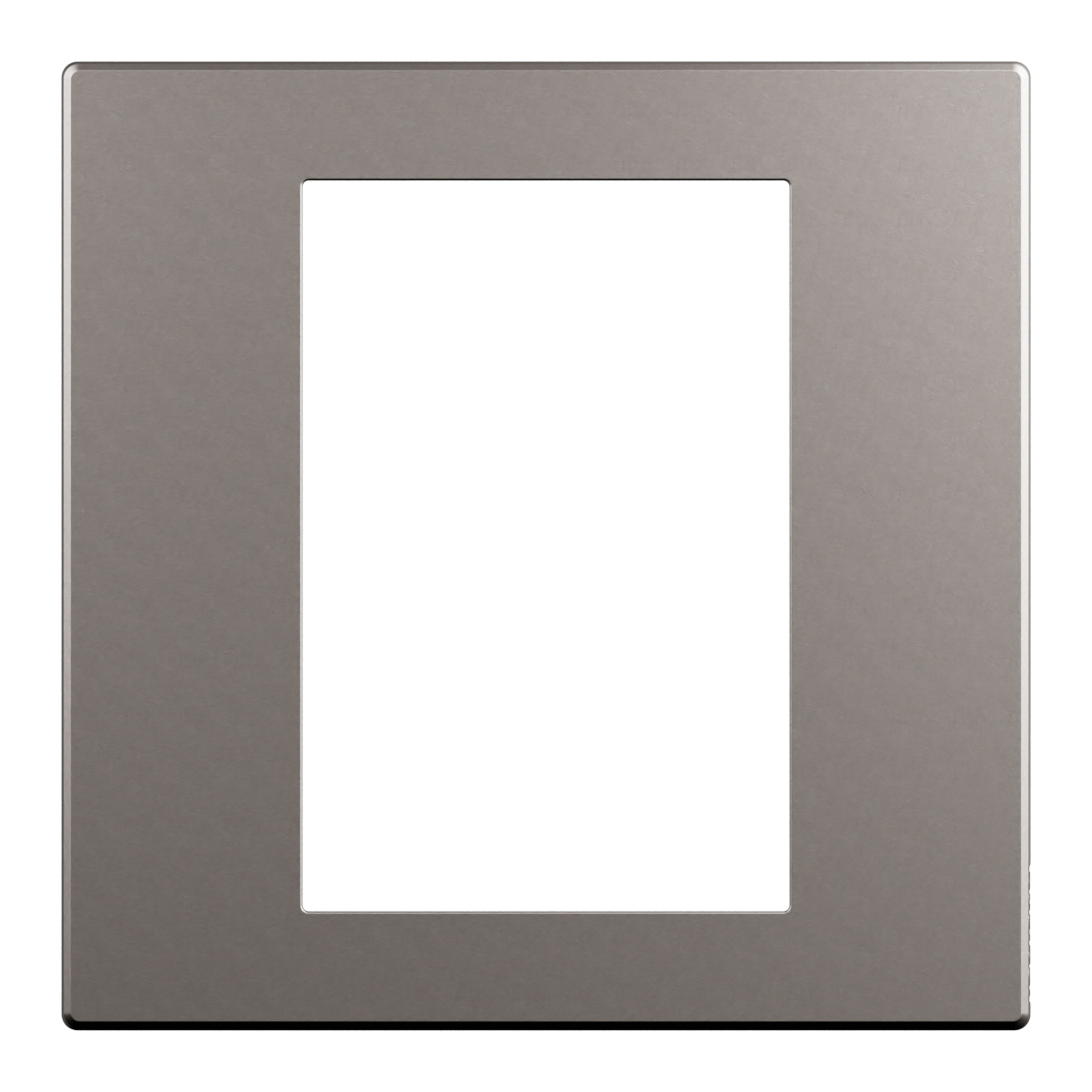

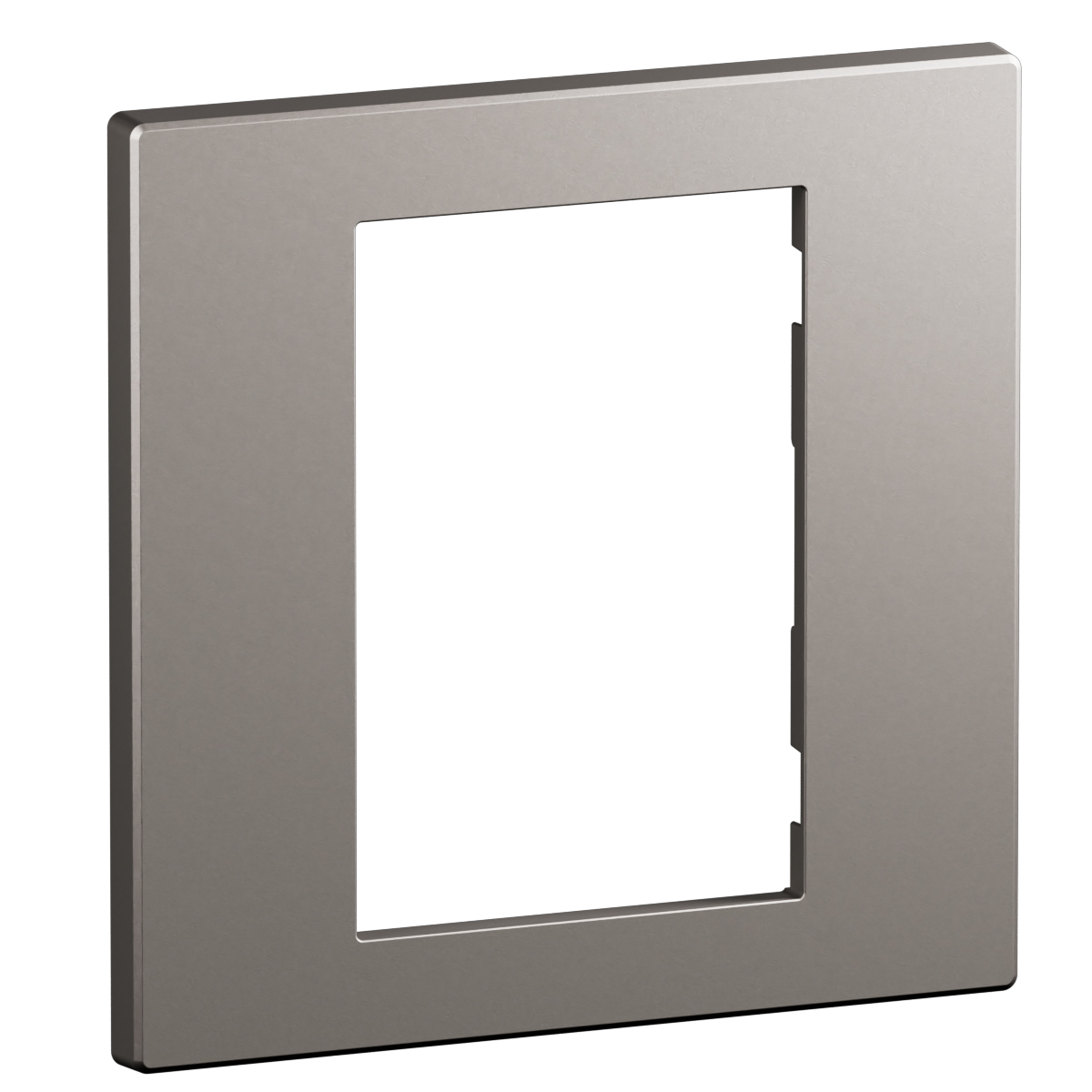

Arteor Advance - 1 gang 3 modules British standard plate matt titanium - Square polycarbonate cover frame - Matt titanium design

REF. AC1104MT EAN. 3414972734844
This 1 gang, 3 modules British Standard plate in matt titanium delivers minimalist, square design and IK02 impact resistance. Its halogen-free thermoplastic construction supports flush-mounted installation.
Download product sheet
Finition :
Number of units horizontal :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang, 3 modules British Standard plate in matt titanium delivers minimalist, square design and IK02 impact resistance. Its halogen-free thermoplastic construction supports flush-mounted installation.

Product characteristics
  • One-gang, three-module British Standard cover frame enabling horizontal or vertical mounting for modular domestic switching devices
  • Matt titanium finish with smooth, low-gloss surface for a contemporary, minimalist aesthetic and reduced fingerprint visibility
  • Square plate made of halogen-free thermoplastic polycarbonate for high mechanical stability and improved fire performance
  • Compact square 90x90mm form factor with 8.5mm depth and snap-on fastening for precise flush-mounted installation
  • Designed for indoor flush-mount applications within -5 to 35° C operating temperature range, providing modularity and flexibility in a compact configuration
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Titanium with a smooth matte aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04493EN-00.pdf pdf (0.51 Mo)
