Arteor Advance - 1 gang 3 modules British standard plate - Matt lacquered aluminum - Square minimalist design - Pink blush metal finish

Arteor Advance Legrand

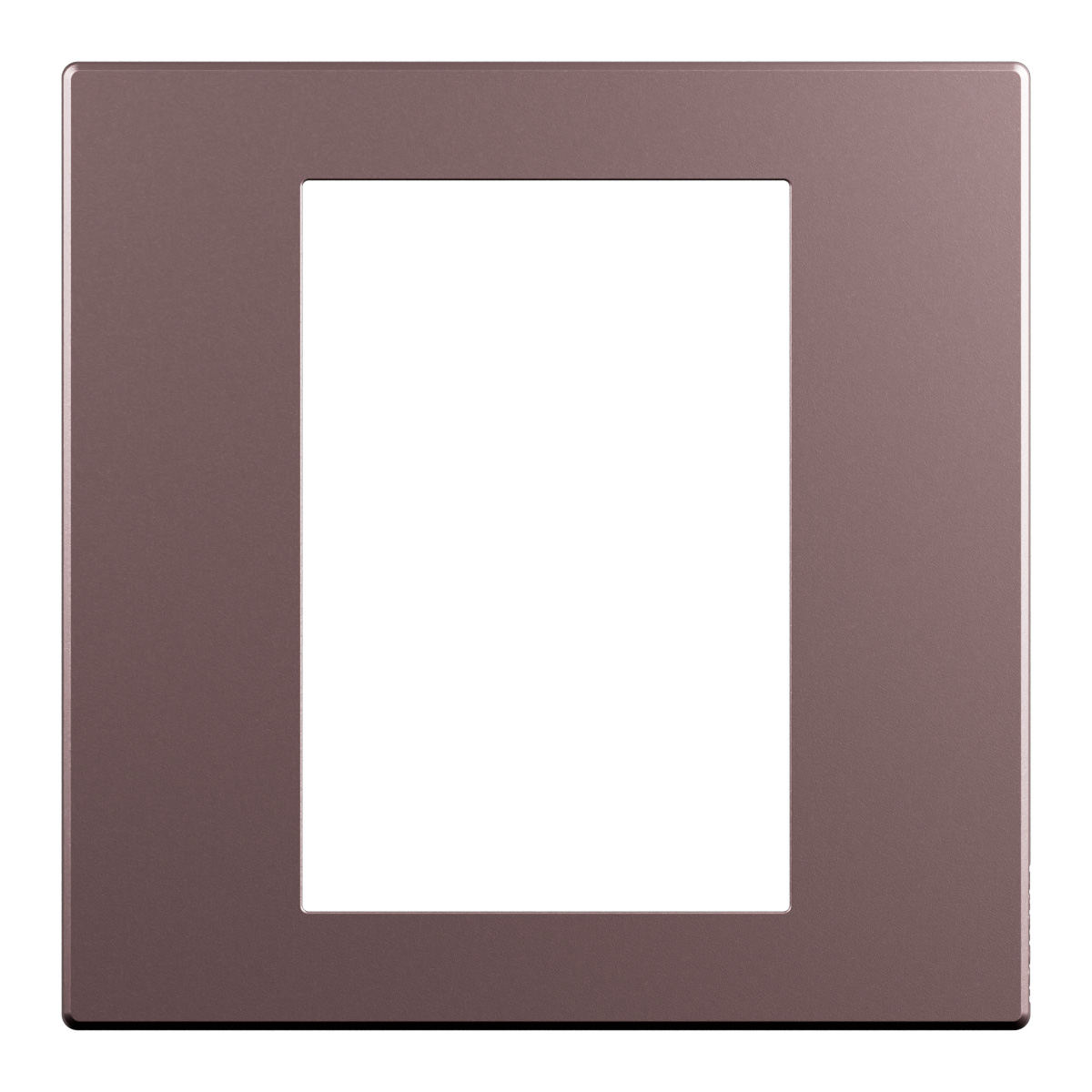

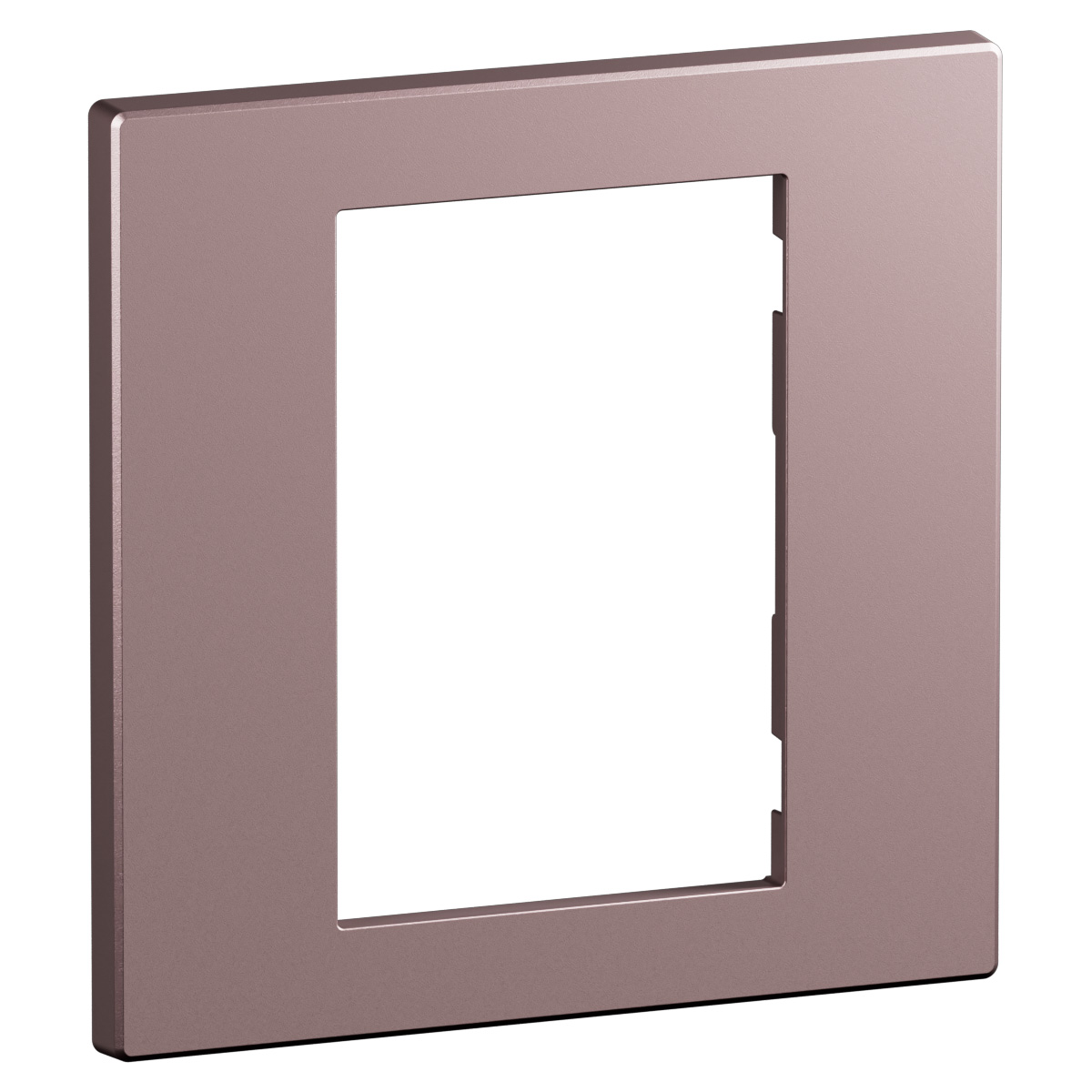

Arteor Advance - 1 gang 3 modules British standard plate - Matt lacquered aluminum - Square minimalist design - Pink blush metal finish

REF. AC1104SR EAN. 3414972976589
This 1 gang, 3 modules British Standard plate in Solid Rose offers horizontal/vertical mounting flexibility and halogen-free, matt lacquered aluminum construction. Its square, minimalist design with snap fastening ensures precise flush
Download product sheet
Finition :
Number of units horizontal :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang, 3 modules British Standard plate in Solid Rose offers horizontal/vertical mounting flexibility and halogen-free, matt lacquered aluminum construction. Its square, minimalist design with snap fastening ensures precise flush

Product characteristics
  • One-gang, three-module British Standard cover frame enabling compact multi-function configurations
  • Solid rose pink, matt lacquered metal finish delivering a subtle blush effect with a cool metallic feel
  • Cover plate manufactured from lacquered aluminum, halogen free and IK02 impact rated for robust residential use
  • Square geometry supporting horizontal or vertical mounting for modularity and flexible device layout
  • Flush-mounted snap-on plate for Arteor Advance domestic switching devices, optimized for indoor wall installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Pink finish evoking a subtle blush effect with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Pink
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
