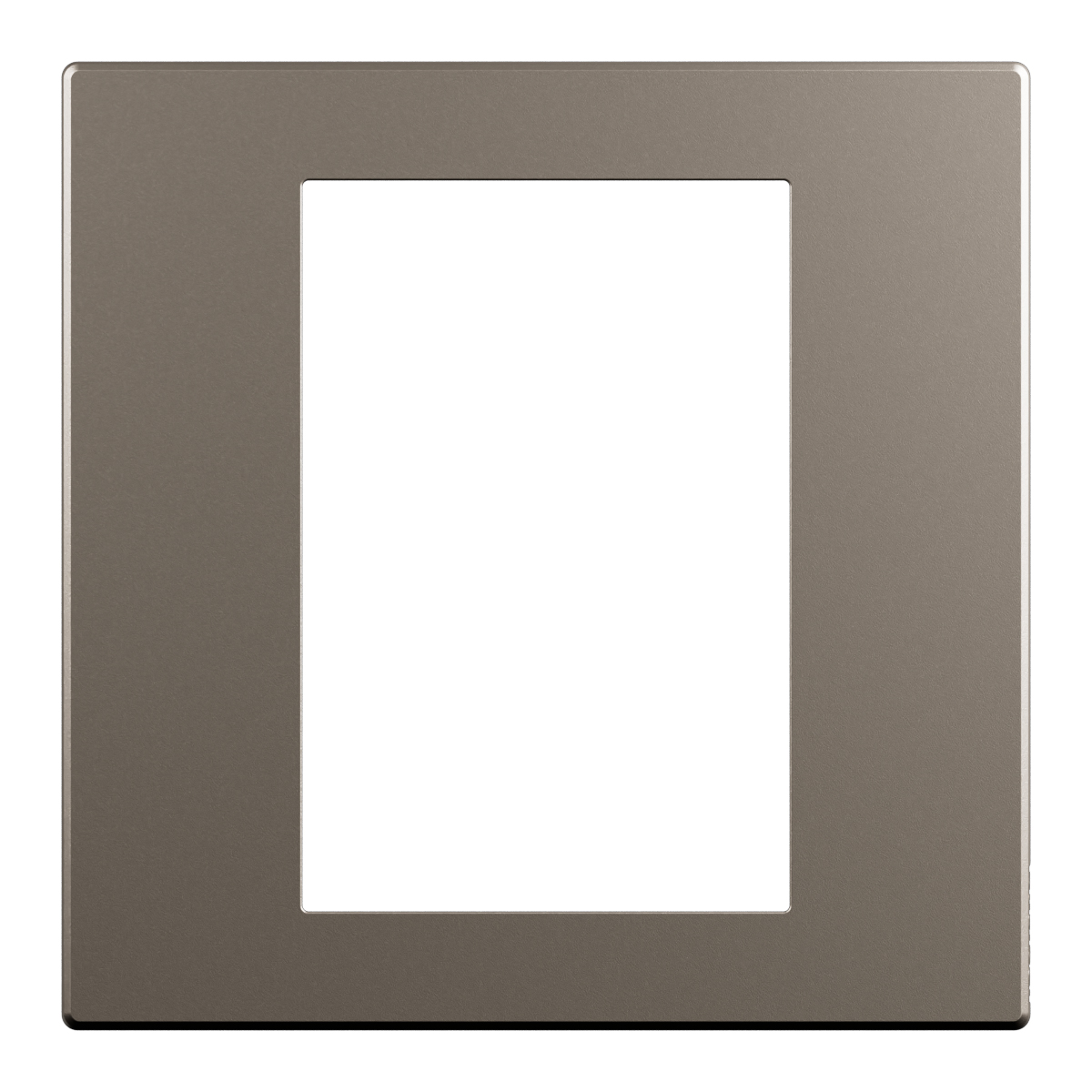

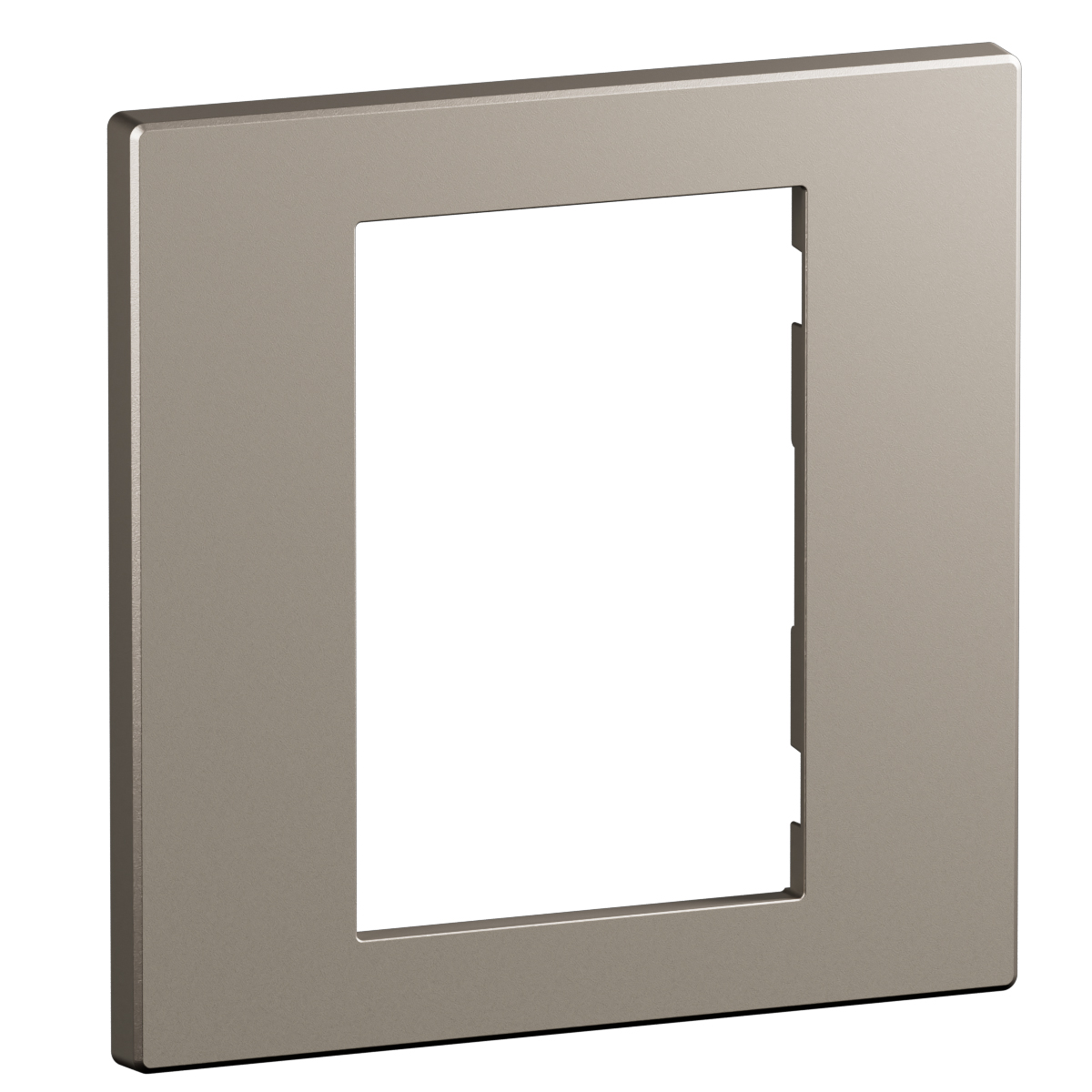

Arteor Advance - 1 gang 3 modules British Standard horizontal/vertical plate - Matt thermoplastic cover frame - Warm gray champagne

Arteor Advance Legrand

Arteor Advance - 1 gang 3 modules British Standard horizontal/vertical plate - Matt thermoplastic cover frame - Warm gray champagne

REF. AC1104CH EAN. 3414972921473
This 1 gang, 3 modules British Standard plate in champagne offers flush-mounted installation with snap fastening. Its matt lacquered thermoplastic construction is halogen free and impact rated IK02. The square, minimalist design supports
Download product sheet
Finition :
Number of units horizontal :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang, 3 modules British Standard plate in champagne offers flush-mounted installation with snap fastening. Its matt lacquered thermoplastic construction is halogen free and impact rated IK02. The square, minimalist design supports

Product characteristics
  • One-gang, three-module British Standard cover frame enabling compact multi-function configurations
  • Champagne gold matt lacquered finish providing a warm, minimalist aesthetic for premium interiors
  • High-quality thermoplastic polycarbonate plate, halogen free and impact rated IK02 for robust residential use
  • Square 90x90mm profile for horizontal or vertical mounting, ensuring modularity and layout flexibility
  • Flush-mounted snap-on design with 8.5mm depth, optimized for indoor wall installations in the Arteor Advance range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04493EN-00.pdf pdf (0.51 Mo)
