Arteor Advance - 1 gang 3 modules British standard horizontal/vertical plate dark bronze - Matt thermoplastic cover frame

Arteor Advance Legrand

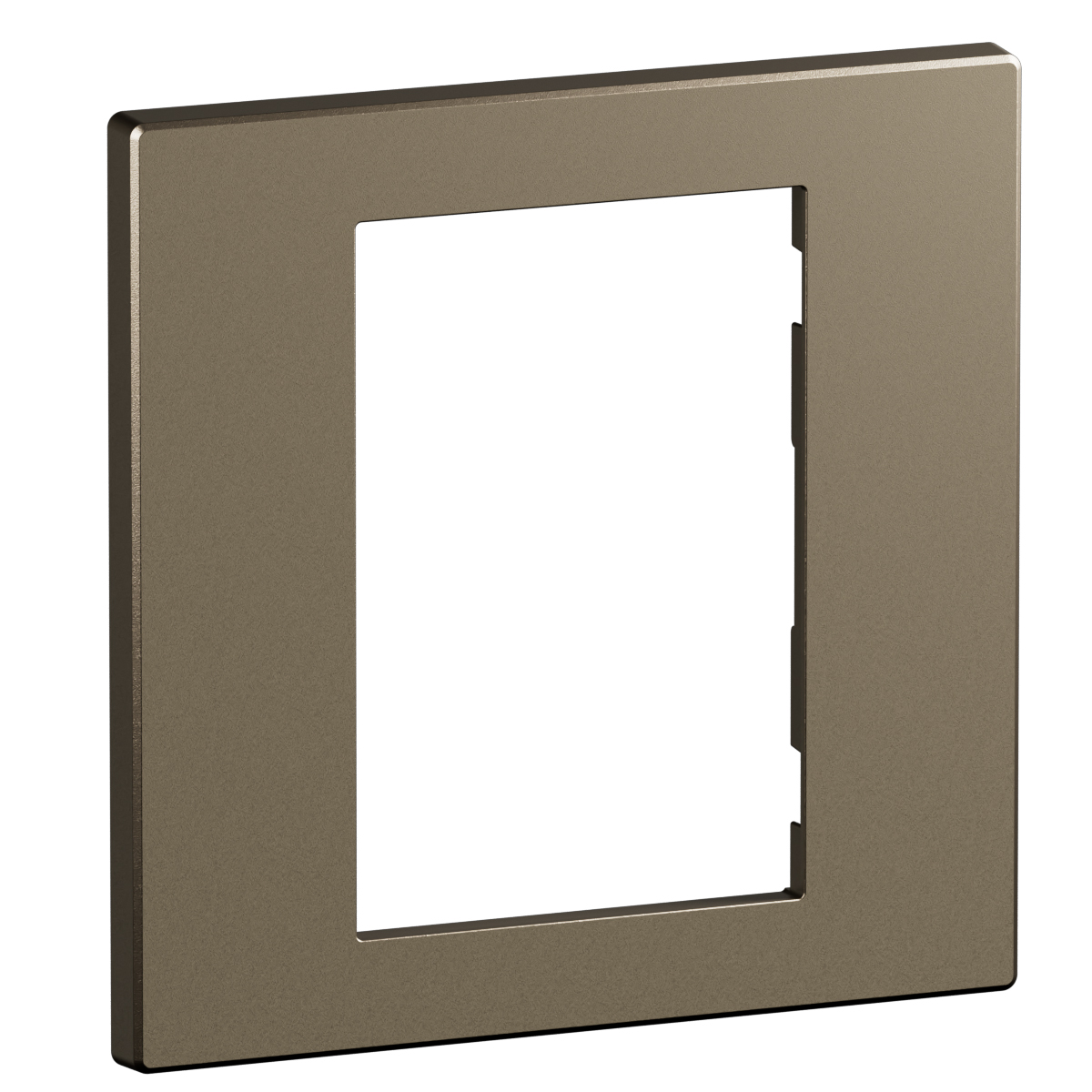

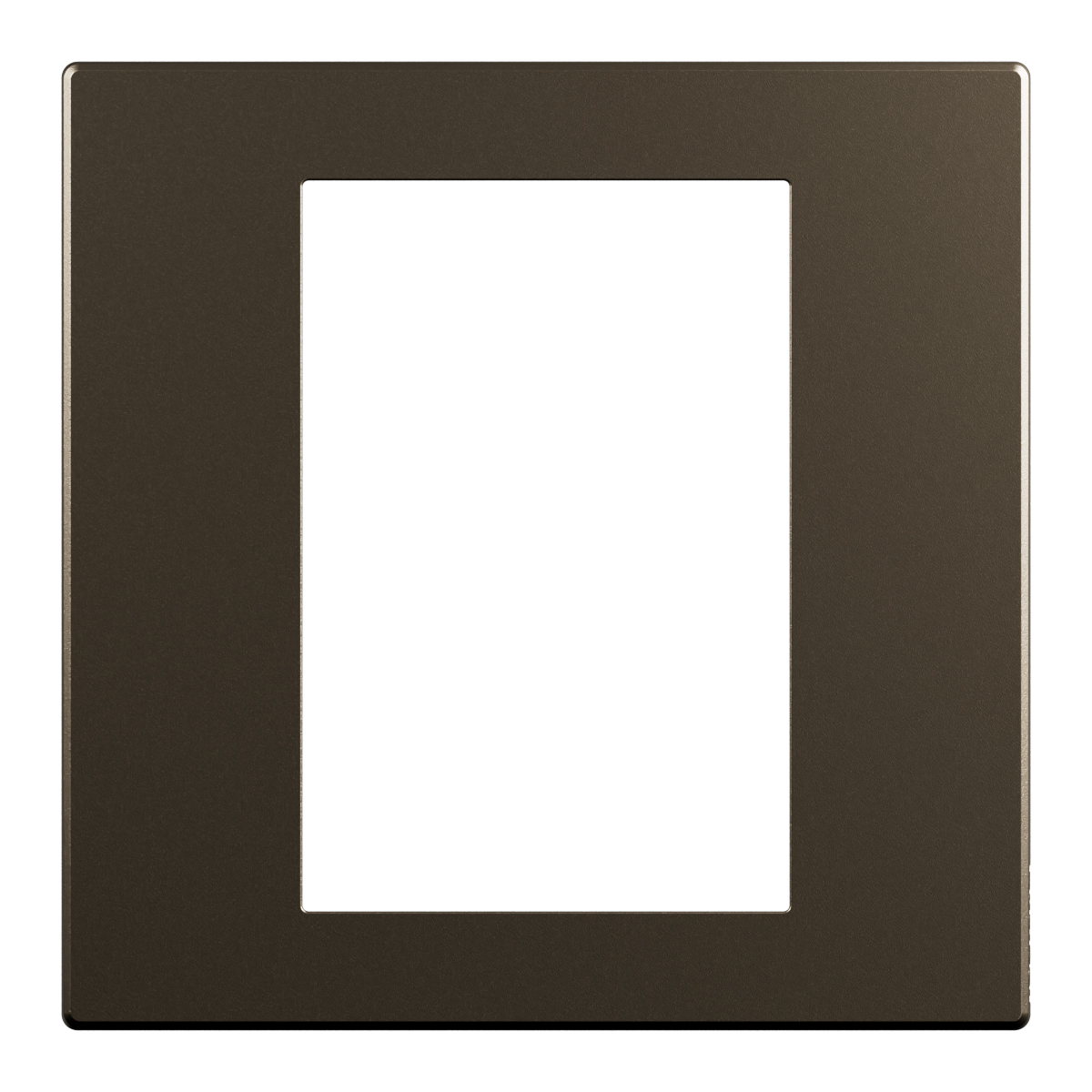

Arteor Advance - 1 gang 3 modules British standard horizontal/vertical plate dark bronze - Matt thermoplastic cover frame

REF. AC1104DB EAN. 3414972921503
This 1 gang, 3 modules British Standard plate offers horizontal/vertical mounting flexibility and precise flush alignment via its integrated adjuster. Its dark bronze, matt lacquered thermoplastic is halogen free, IK02 impact-resistant.
Download product sheet
Finition :
Number of units horizontal :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang, 3 modules British Standard plate offers horizontal/vertical mounting flexibility and precise flush alignment via its integrated adjuster. Its dark bronze, matt lacquered thermoplastic is halogen free, IK02 impact-resistant.

Product characteristics
  • One-gang, three-module British Standard cover frame enabling compact multi-function configurations
  • Dark bronze, deep lacquered matt finish delivering a minimalist, classic aesthetic for premium interiors
  • High-quality thermoplastic polycarbonate plate, halogen free and impact rated IK02 for robust, safe installations
  • Square 90x90mm flush-mounted plate with engage (snap) fastening for precise alignment and modular flexibility
  • Horizontal/vertical mounting capability with integrated adjuster for perfect wall installation in indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep bronze finish evoking classic ambiance
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04493EN-00.pdf pdf (0.51 Mo)
