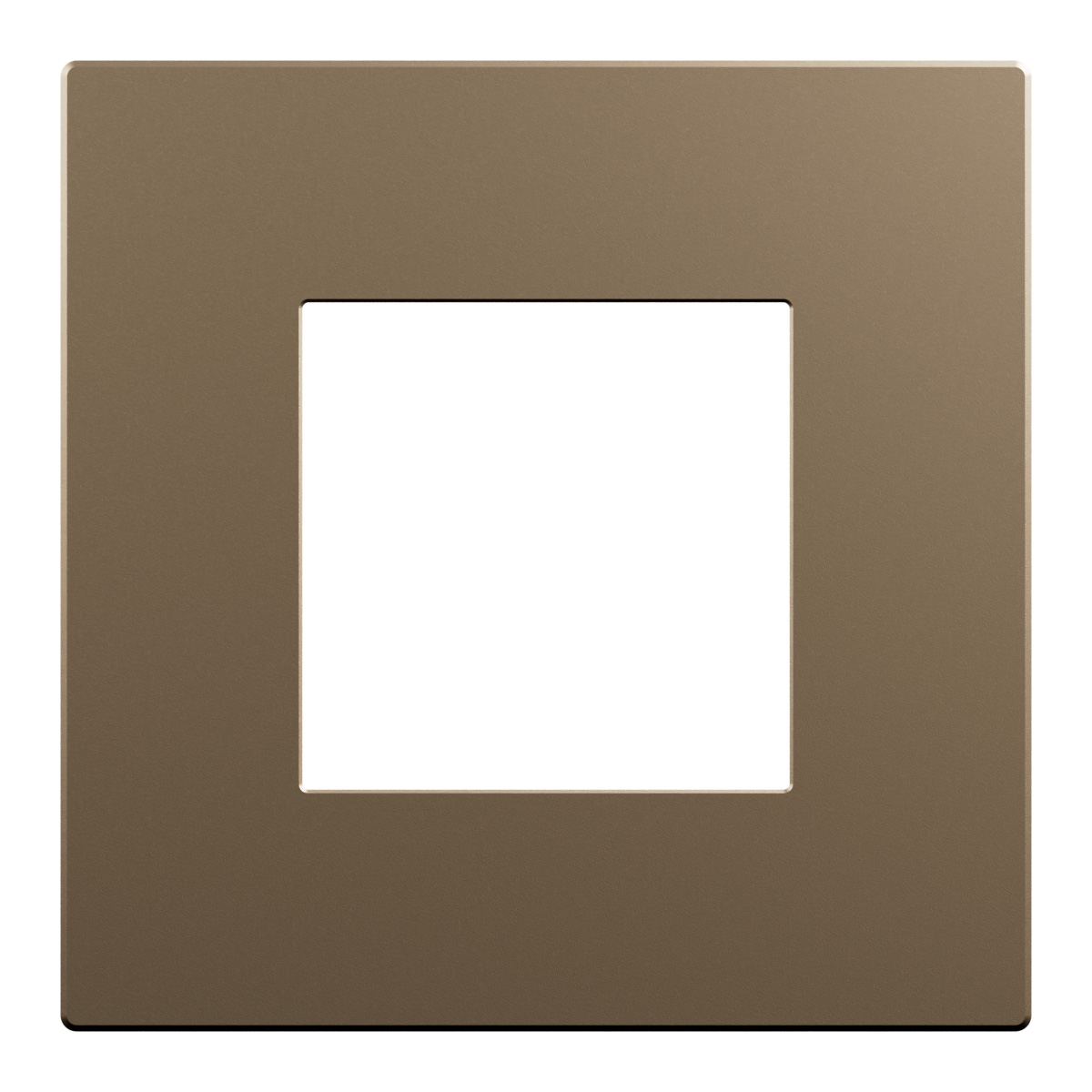

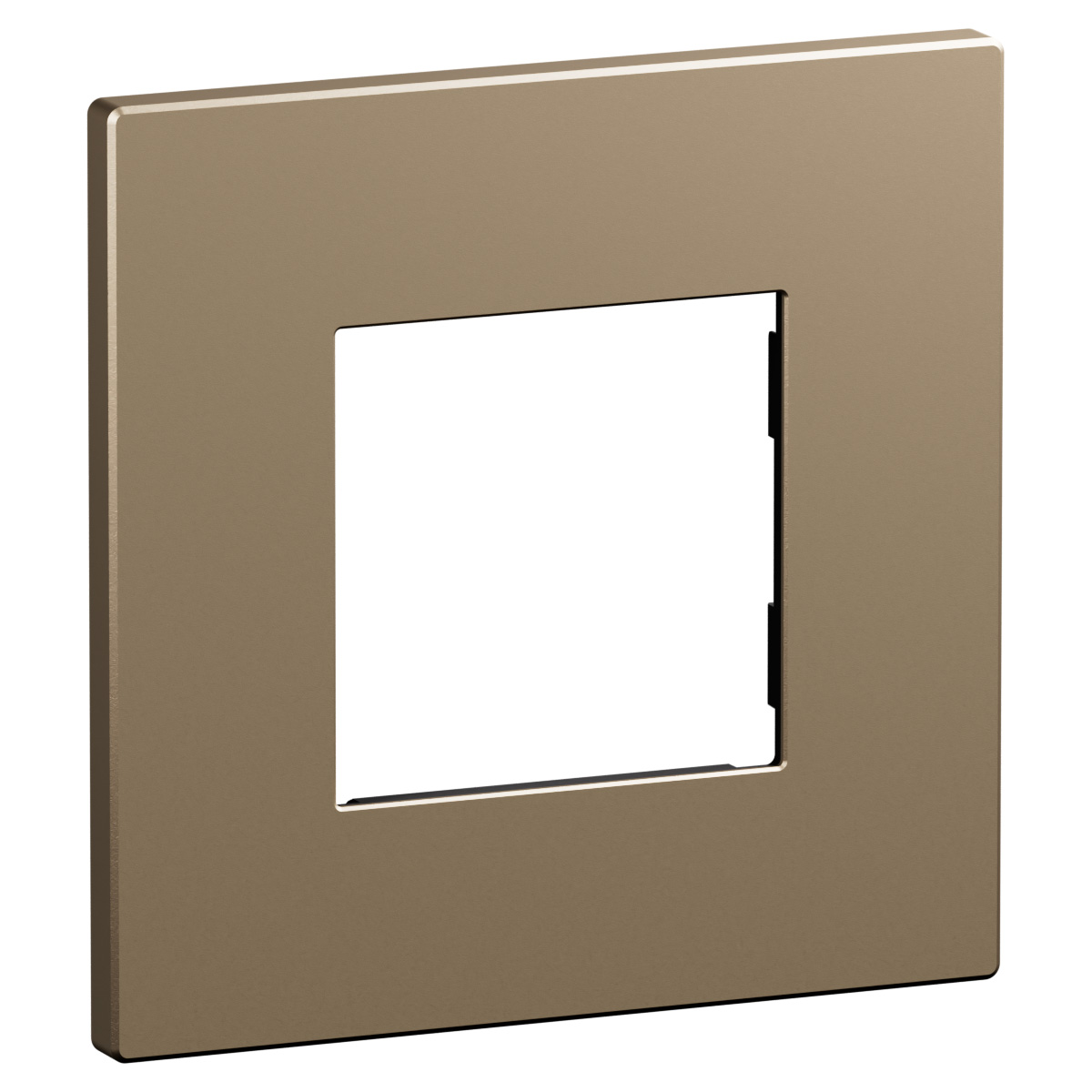

Arteor Advance - 1 gang 2 modules British standard plate - Matt lacquered aluminum - Square minimalist sandy gold finish

Arteor Advance Legrand

Arteor Advance - 1 gang 2 modules British standard plate - Matt lacquered aluminum - Square minimalist sandy gold finish

REF. AC1102SD EAN. 3414972976374
This 1 gang, 2 modules British Standard plate in solid sand offers minimalist square design and modular flexibility. Its lacquered matt aluminum construction is halogen free and impact rated IK02 for precise flush-mounted installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang, 2 modules British Standard plate in solid sand offers minimalist square design and modular flexibility. Its lacquered matt aluminum construction is halogen free and impact rated IK02 for precise flush-mounted installation.

Product characteristics
  • One-gang, two-module British Standard plate providing a compact interface for domestic switching devices
  • Solid sand sandy-gold finish delivering a mineral-inspired aesthetic with a cool metallic sensation
  • Plate manufactured from aluminum, halogen-free and lacquered matt for enhanced durability and safety
  • Square, minimalist design enabling modularity and flexibility in a compact configuration
  • Flush-mounted, snap-on cover frame from the Arteor Advance range, optimized for indoor wall installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Sandy gold finish reminiscent of natural mineral elegance with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Beige
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
