Arteor Advance - 1 gang 2 modules British standard plate champagne - Square thermoplastic cover frame - Matt gold finish

Arteor Advance Legrand

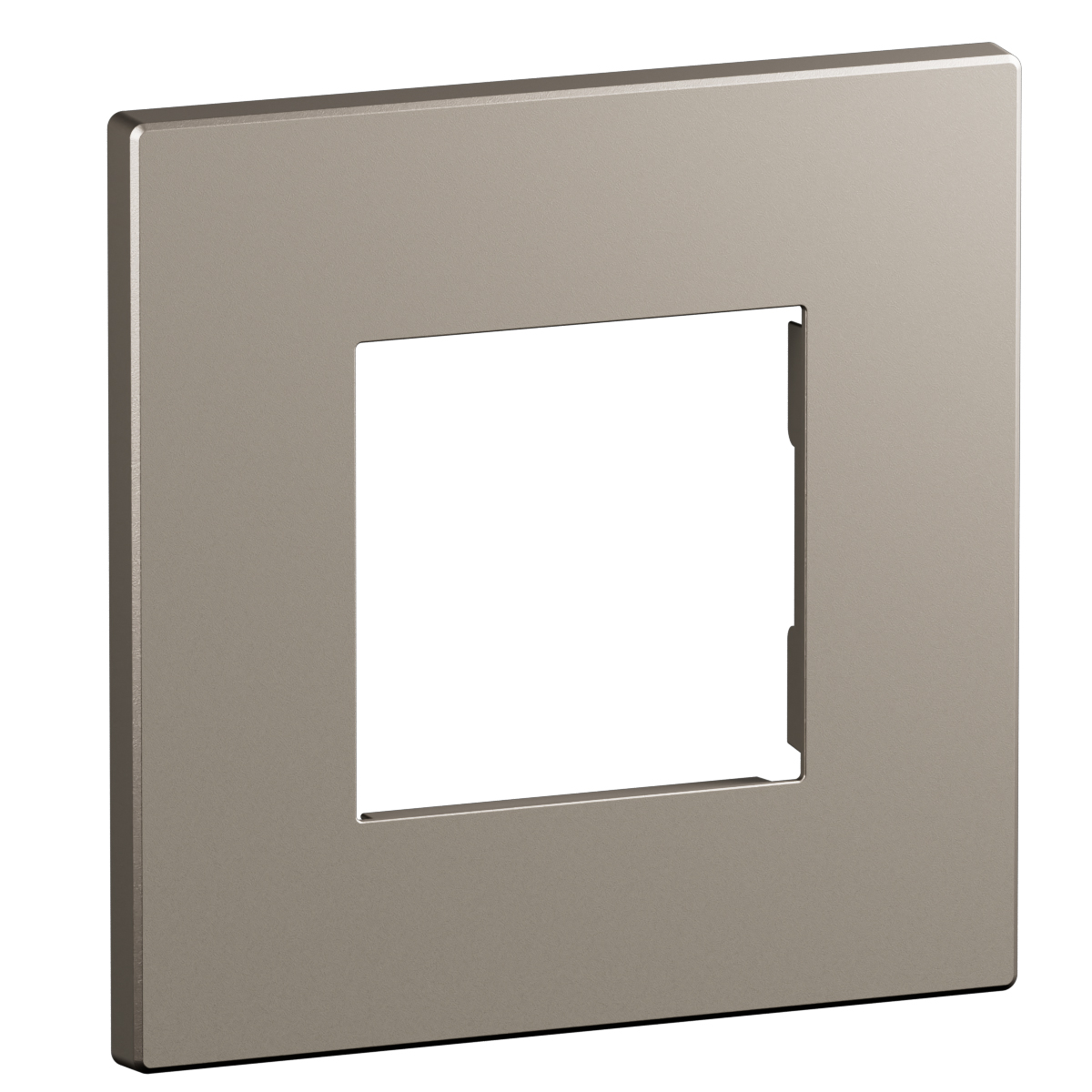

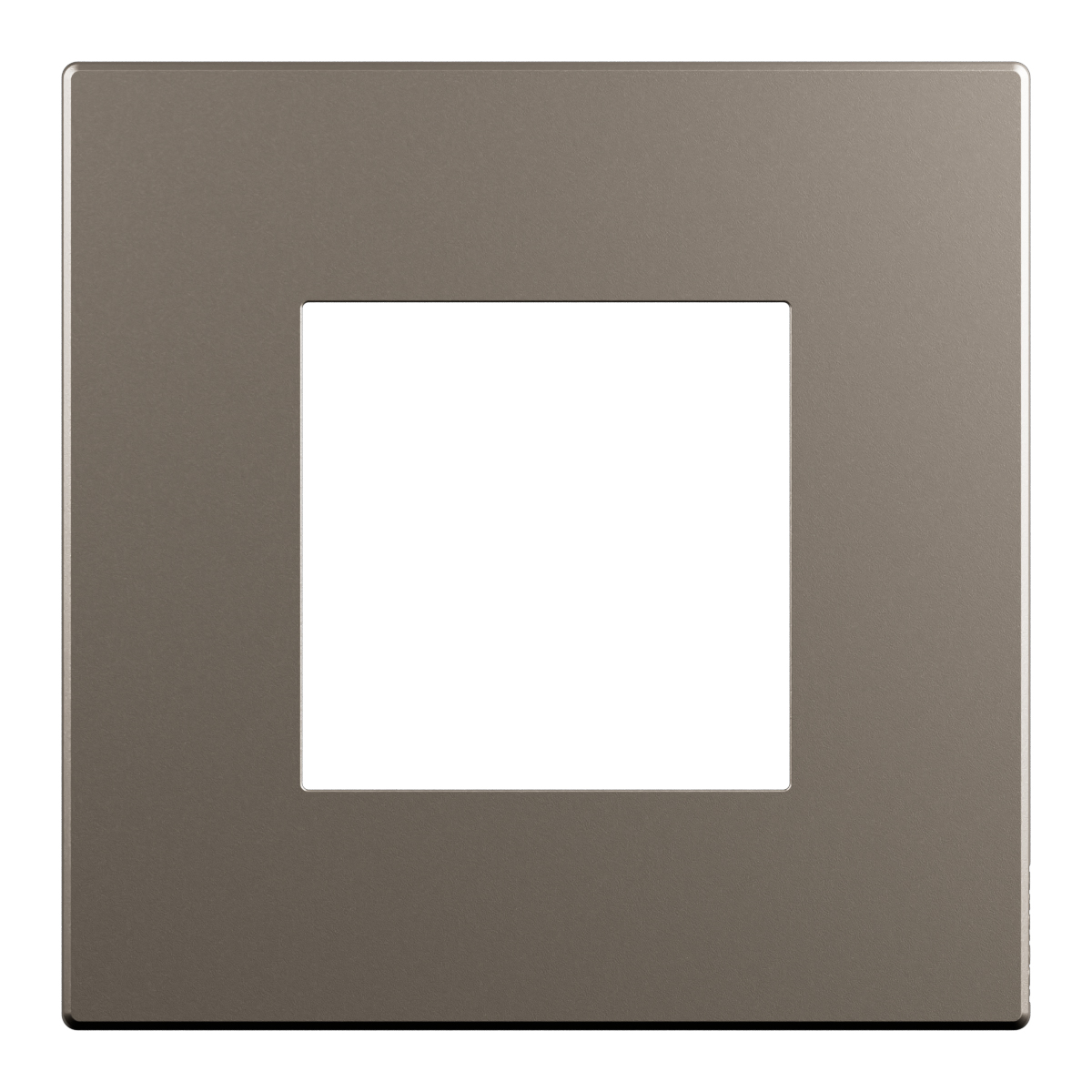

Arteor Advance - 1 gang 2 modules British standard plate champagne - Square thermoplastic cover frame - Matt gold finish

REF. AC1102CH EAN. 3414972921381
This 1 gang 2 modules British Standard plate in champagne offers halogen-free thermoplastic construction, matt lacquered surface, and IK02 impact resistance.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang 2 modules British Standard plate in champagne offers halogen-free thermoplastic construction, matt lacquered surface, and IK02 impact resistance.

Product characteristics
  • One-gang, two-module British Standard cover plate for domestic switching devices, providing a compact 1G 2M interface for modular functions
  • Champagne gold matt lacquered finish delivering a warm, minimalist aesthetic suitable for premium interior specifications
  • Thermoplastic polycarbonate plate, halogen free and impact rated IK02 for robust, safe flush-mounted installations
  • Square 90x90mm form factor with 8.5mm depth, enabling modularity and flexibility in a compact, horizontal or vertical configuration
  • Snap-on fastening without mounting grid, optimized for indoor flush-mounted wall boxes with operating temperature from -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04493EN-00.pdf pdf (0.51 Mo)
1 document
Product Environmental Profile (PEP)
LGRP-01930-V01.02-EN.pdf pdf (0.81 Mo)
1 document
BIM Data
