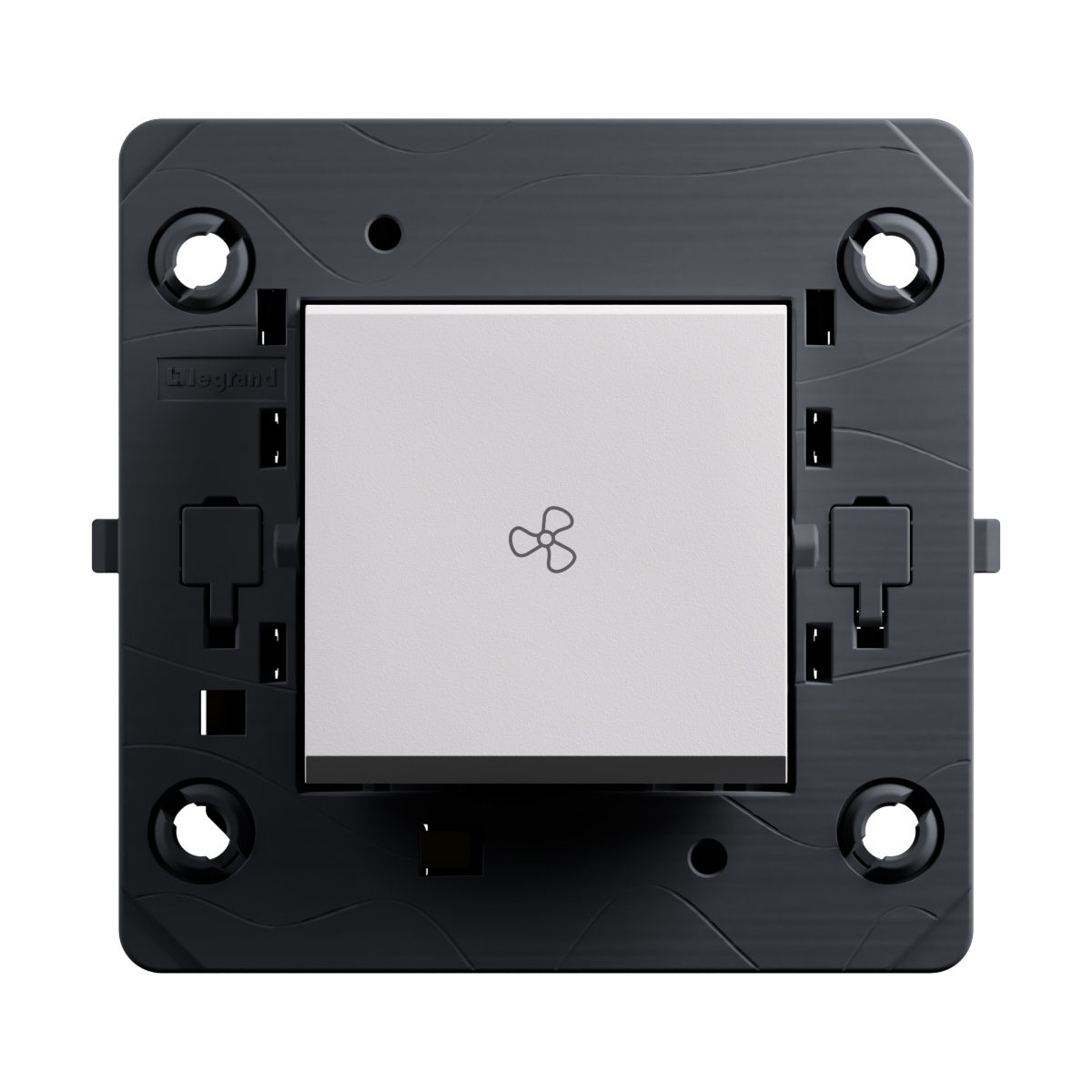

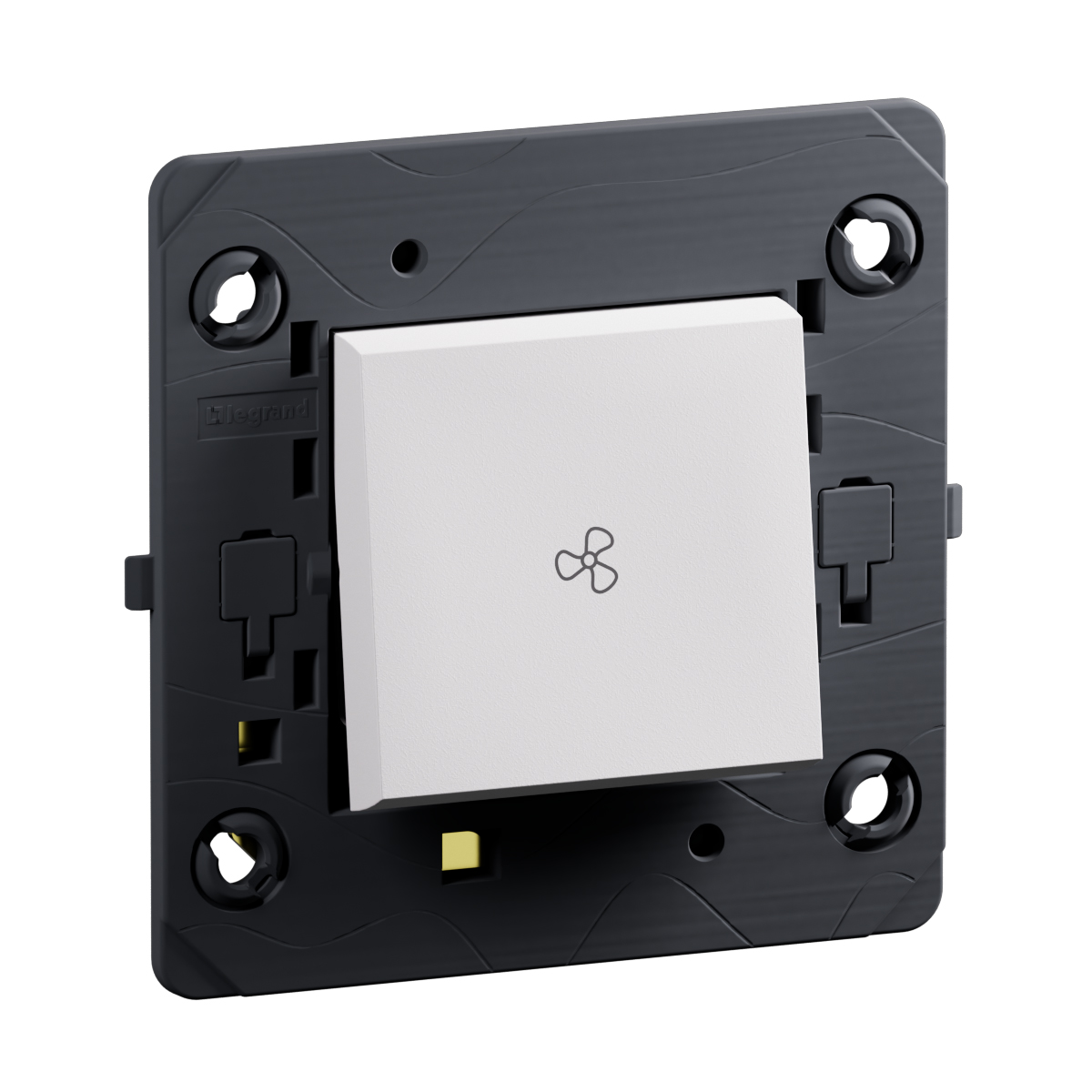

Arteor Advance - 1 gang 10A rotary triple pole monobloc fan controller matt white - Flush-mounted - 230V to 250V AC - IP20 indoor use

Arteor Advance Legrand

Arteor Advance - 1 gang 10A rotary triple pole monobloc fan controller matt white - Flush-mounted - 230V to 250V AC - IP20 indoor use

REF. AC666MW EAN. 3414973018301
Rotary fan isolator switch, 1 gang 10A triple-pole, ensures reliable 230V to 250V fan control. Flush-mounted monobloc design with screw-type terminals. Matt white finish for interiors, IP20-rated for indoor use only.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Rotary fan isolator switch, 1 gang 10A triple-pole, ensures reliable 230V to 250V fan control. Flush-mounted monobloc design with screw-type terminals. Matt white finish for interiors, IP20-rated for indoor use only.

Product characteristics
  • One-gang 10A 3-pole fan speed controller for 230 to 250V applications
  • Matt white finish matching Arteor Advance aesthetics for coordinated installations
  • Flush-mounted monobloc design with basic element without cover for integration into modular wiring devices
  • Rocker-operated, single-step speed control with no integrated lighting or temperature sensor, rated IP20 for indoor use
  • Compact dimensions (79.5x84.5x17.4mm) with screw-type terminals for secure and efficient wiring in 3-phase circuits
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Mounting method Flush-mounted
Colour White
Nominal current 10 A
Output voltage (Min-Max) 230-250 V
Number of phases 3
Power control stepless No
Number of steps 1
Basic element without cover Yes
Method of operation Rocker
Lighting None
Switching contact No
With temperature sensor No
Height 79.5 mm
Width 84.5 mm
Depth 17.4 mm
Degree of protection (IP) IP20

Documentation

1 document
Technical Sheet
F04411EN-00.pdf pdf (0.59 Mo)
1 document
REACH DECLARATION
1 document
BIM Data
1 document
Agreement
OC / CB-CNCVC1894 (1.69 Mo)
