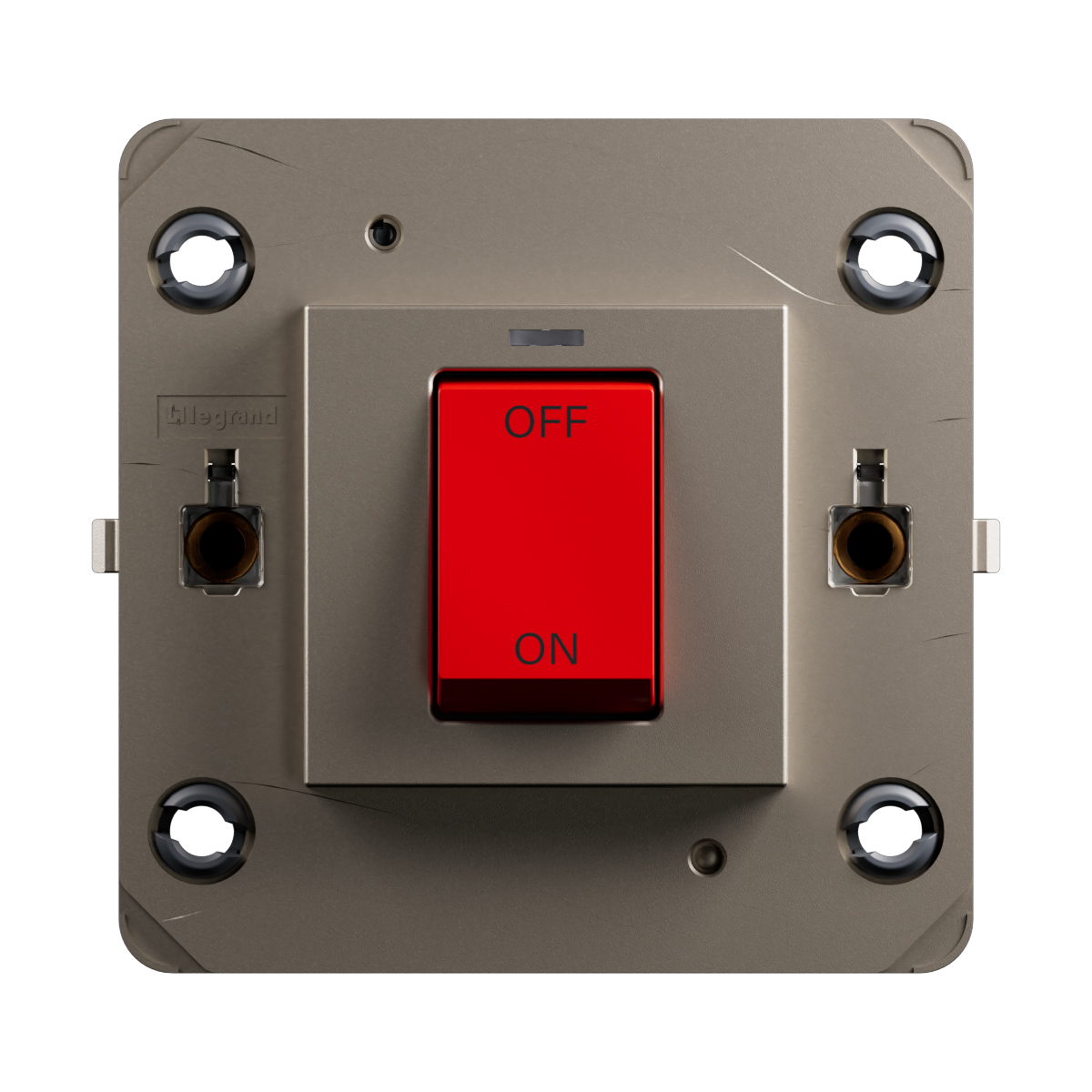

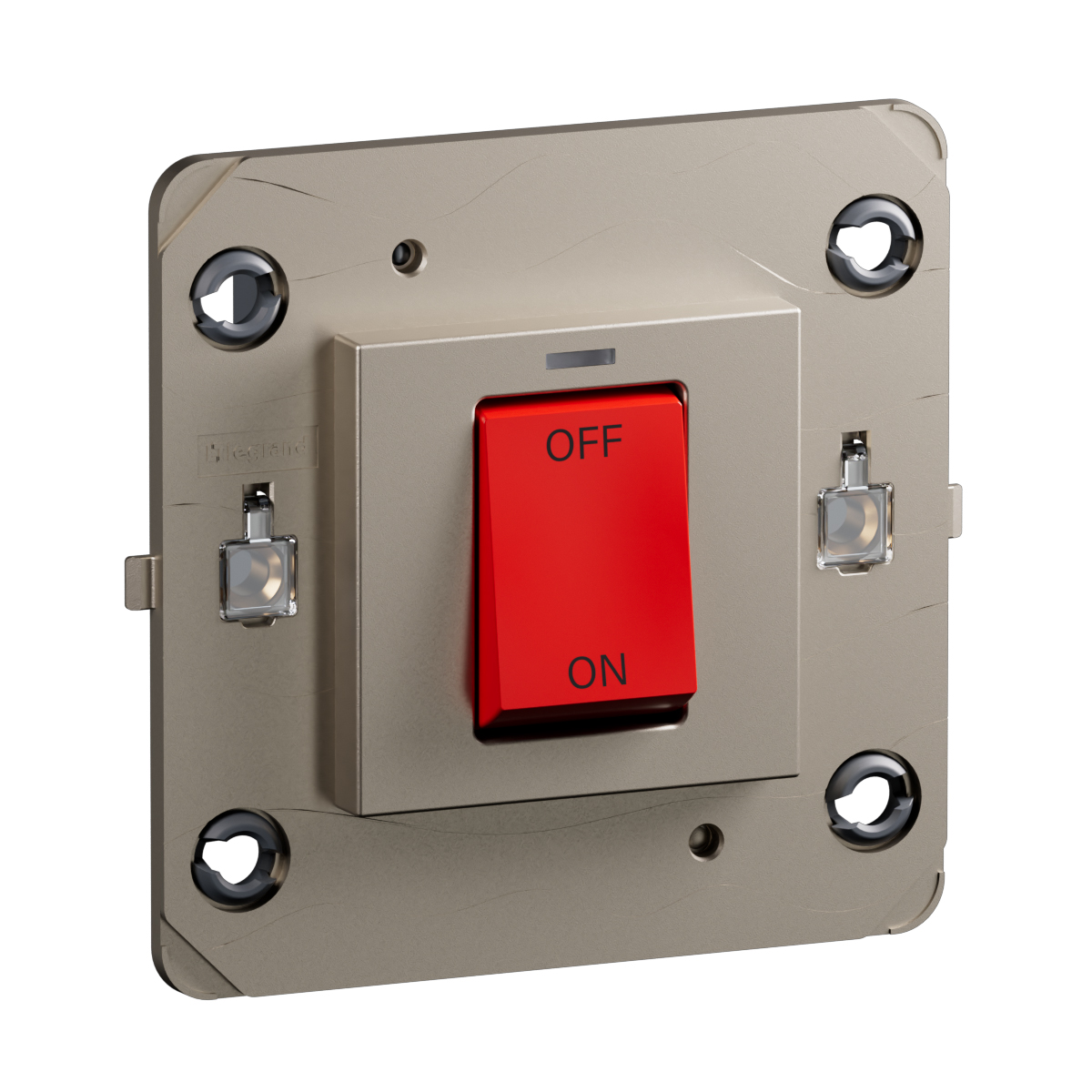

Arteor Advance - 1 gang 1 way 45A double pole switch with LED indicator champagne - 250V AC high-load control - Flush-mounted

Arteor Advance Legrand

Arteor Advance - 1 gang 1 way 45A double pole switch with LED indicator champagne - 250V AC high-load control - Flush-mounted

REF. AC20104CH EAN. 3414972918381
The power control switch safely turns high-powered equipment on and off, with a robust 45A 250VAC double-pole rating. Its built-in LED indicator ensures clear status visibility, while screw terminals and flush-mounted design provide.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The power control switch safely turns high-powered equipment on and off, with a robust 45A 250VAC double-pole rating. Its built-in LED indicator ensures clear status visibility, while screw terminals and flush-mounted design provide.

Product characteristics
  • One gang, one way 45A double-pole switch for high-load power control at 250V AC, 50 to 60Hz
  • Champagne matt lacquered thermoplastic finish with warm gray, ivory-toned aesthetic for premium interiors
  • Integrated glow-lamp LED indicator provides control and orientation lighting with red rocker for clear status visibility
  • Flush-mounted monobloc basic element with adaptor plate, screw mounting and screwed terminals for 6mm² to 10mm² flexible or rigid cables (min. Box depth 35mm)
  • IP20, IK04-rated monobloc device (84.5x79.5x34mm, built-in depth 21.6mm) designed for indoor use and long service life (up to 10,000 operation cycles)
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker lever
Assembly arrangement Basic element with adaptor plate
Push button switch No
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Colour of switch operator Red
Lighting Yes
Function lighting Illuminated (on)
Type of lighting Glow lamp
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 45 A
Switching current for fluorescent lamps 45 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 84.5 mm
Device height 79.5 mm
Device depth 34 mm
Built-in depth 21.6 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 6-10 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 6-10 mm²
