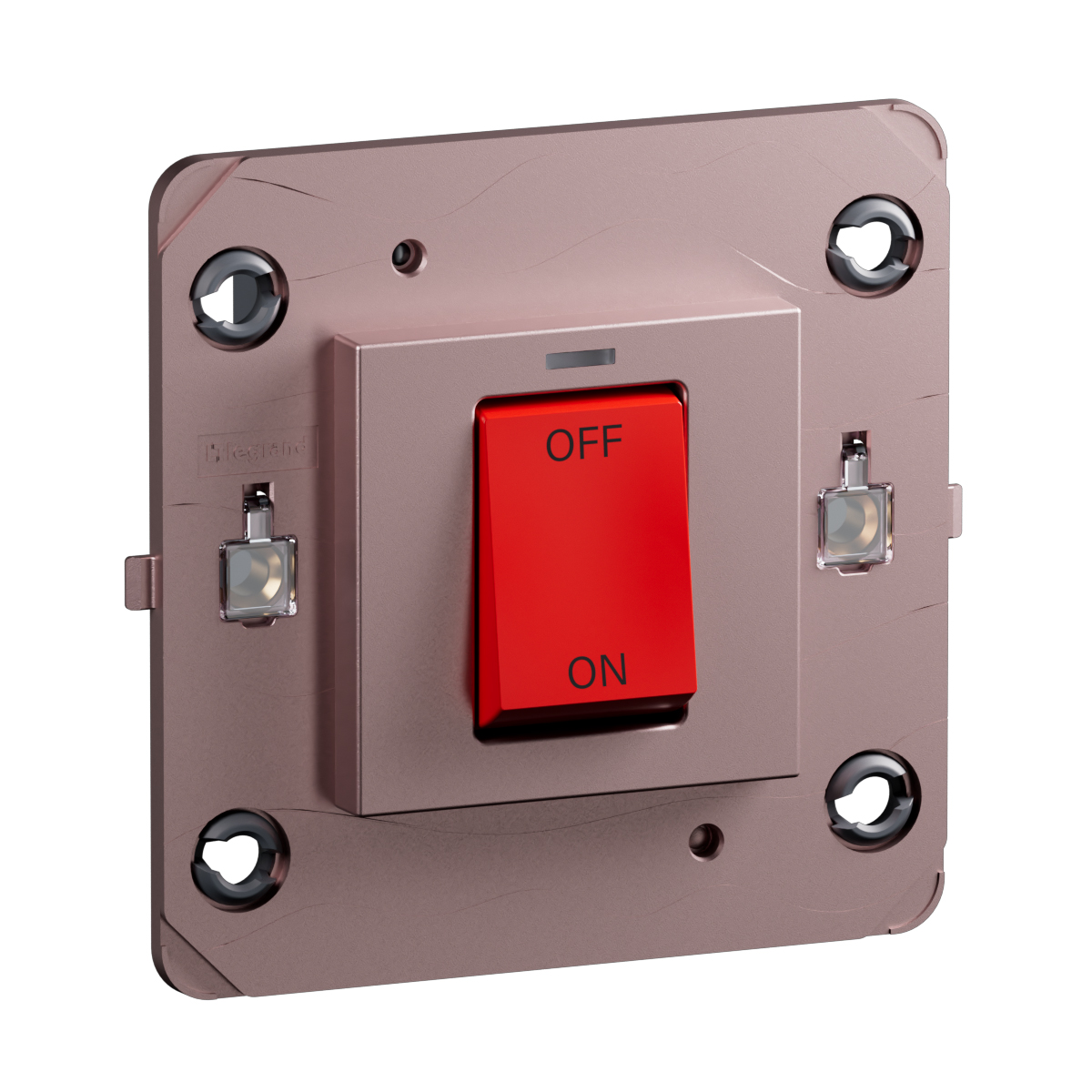

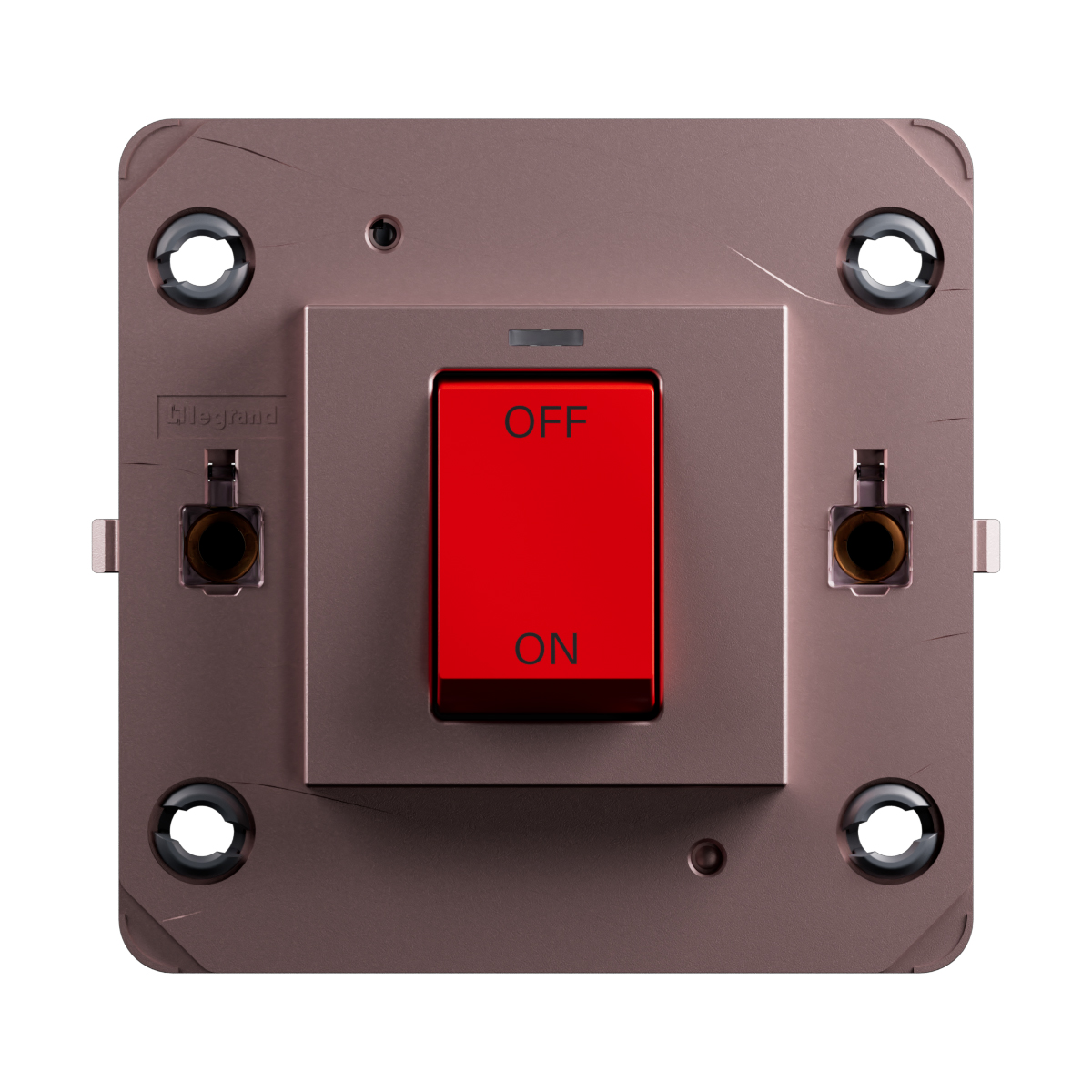

Arteor Advance - 1 gang 1 way 45A double pole switch with indicator - 250V AC 45A rated - Flush-mounted rocker IP20

Arteor Advance Legrand

Arteor Advance - 1 gang 1 way 45A double pole switch with indicator - 250V AC 45A rated - Flush-mounted rocker IP20

REF. AC20104RS EAN. 3414972918442
The power control switch is a robust, high-capacity 1 gang, 1 way 45A double pole device for safely switching high-powered equipment. Its built-in glow indicator and durable monobloc construction deliver reliable indoor performance.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The power control switch is a robust, high-capacity 1 gang, 1 way 45A double pole device for safely switching high-powered equipment. Its built-in glow indicator and durable monobloc construction deliver reliable indoor performance.

Product characteristics
  • One gang, one way, 45A double-pole installation switch for safe isolation of high-load circuits at 250V AC, 50-60Hz
  • Rose finish front plate providing a distinctive aesthetic suitable for coordinated interior schemes
  • Integrated glow-lamp LED indicator for clear control and orientation lighting, visible in low-light conditions
  • Flush-mounted thermoplastic, halogen-free monobloc device with screw terminals for 6mm² to 10mm² flexible or rigid conductors
  • Compact monobloc design (84.5x79.5x34mm, IP20, IK04) ensuring robust in-wall installation with a minimum 35mm back box depth
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker lever
Assembly arrangement Basic element with adaptor plate
Push button switch No
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Colour of switch operator Red
Lighting Yes
Function lighting Illuminated (on)
Type of lighting Glow lamp
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 45 A
Switching current for fluorescent lamps 45 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 84.5 mm
Device height 79.5 mm
Device depth 34 mm
Built-in depth 21.6 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 6-10 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 6-10 mm²
