Arteor Advance - 1 gang 1 module British standard plate solid dark bronze - Matt lacquered aluminum plate - Square 1G 1M cover frame

Arteor Advance Legrand

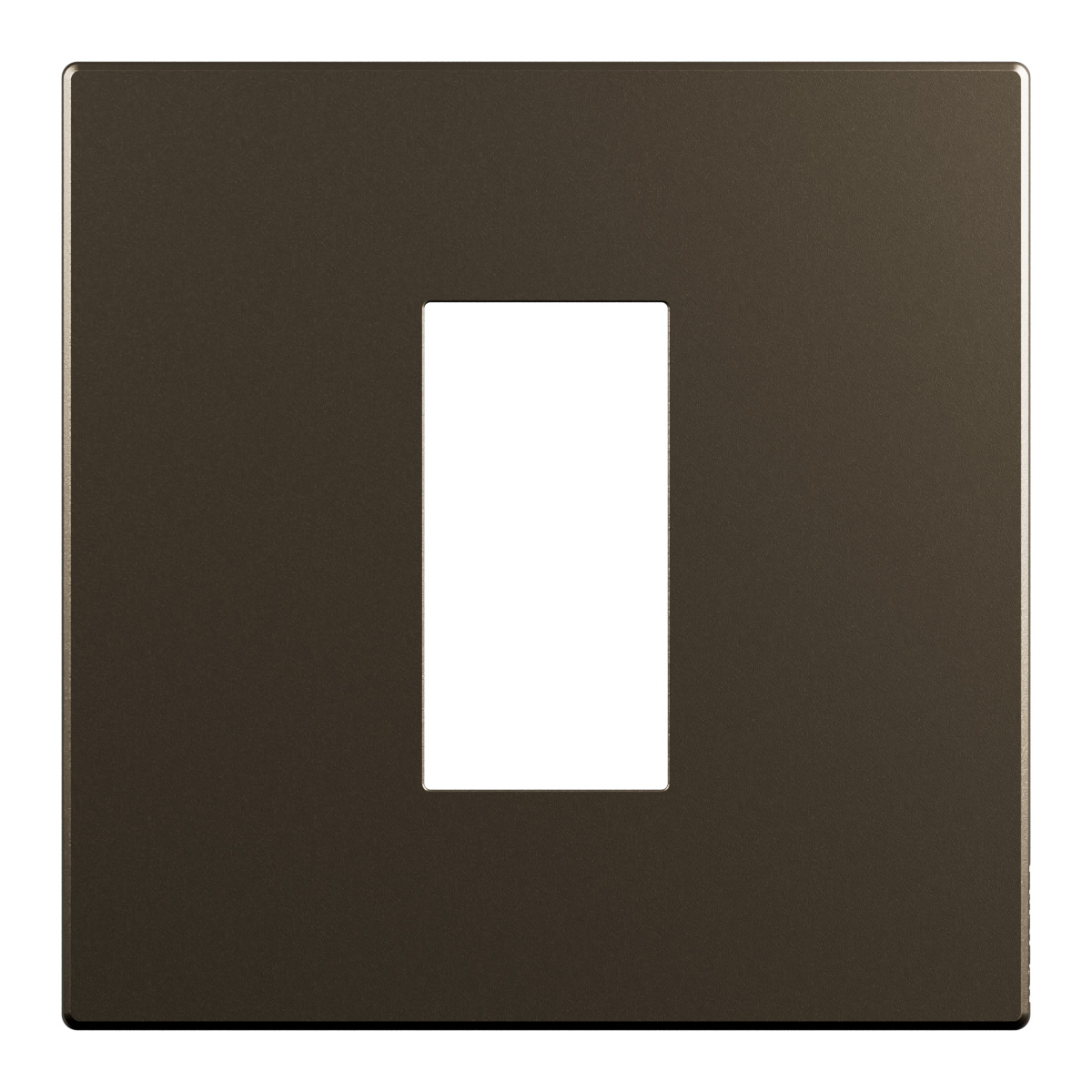

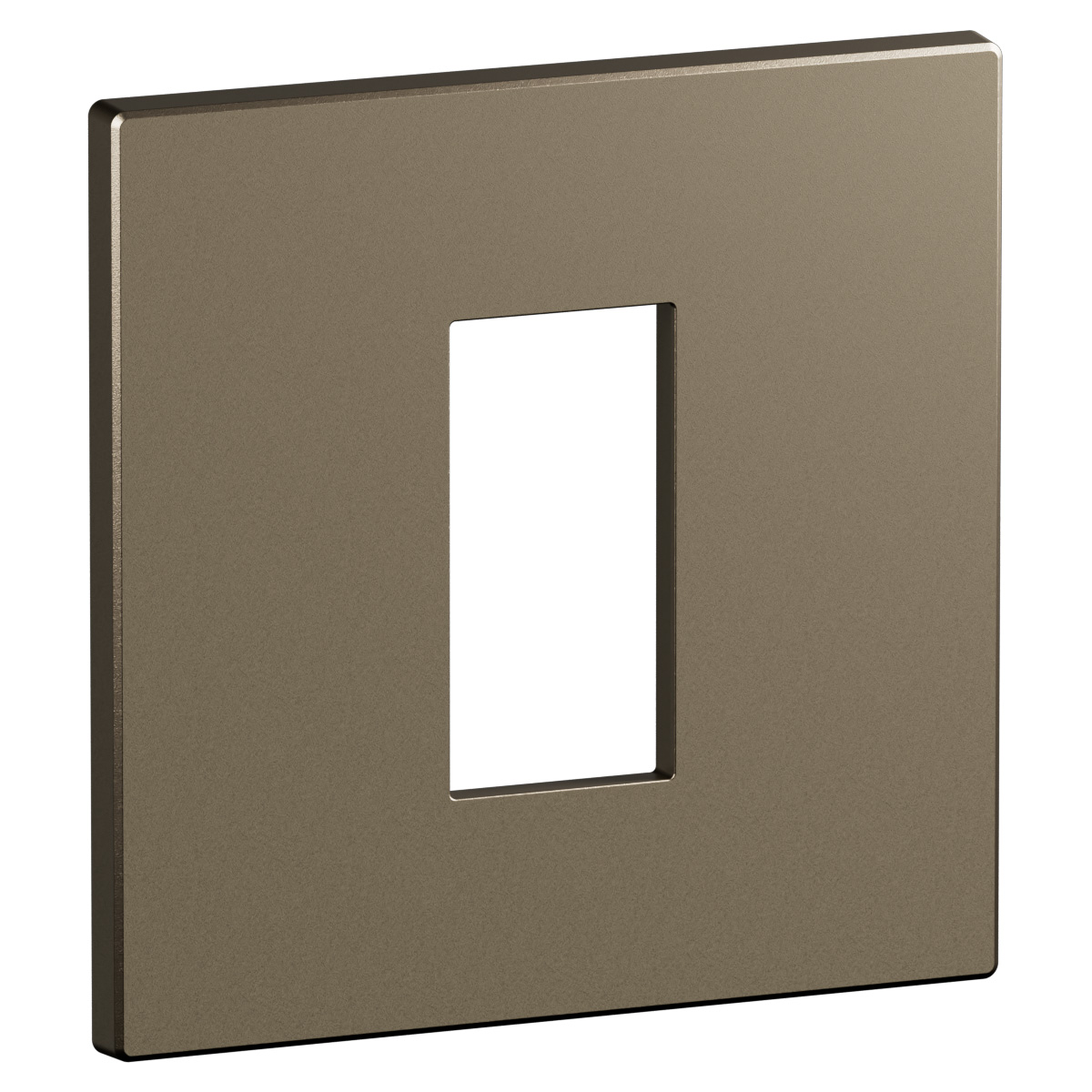

Arteor Advance - 1 gang 1 module British standard plate solid dark bronze - Matt lacquered aluminum plate - Square 1G 1M cover frame

REF. AC1100SZ EAN. 3414972976251
This 1 gang, 1 module British Standard plate in solid dark bronze combines a minimalist square design with robust lacquered aluminum construction. Its snap fastening and integrated adjuster ensure precise flush-mounted installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 gang, 1 module British Standard plate in solid dark bronze combines a minimalist square design with robust lacquered aluminum construction. Its snap fastening and integrated adjuster ensure precise flush-mounted installation.

Product characteristics
  • 1-gang, 1-module British Standard cover plate for domestic switching devices, providing a single wiring device aperture in compact format
  • Solid dark bronze, matt lacquered aluminum plate delivering a deep metallic finish that enhances premium, minimalist aesthetics
  • Metal construction in aluminum, halogen free and non-transparent, ensuring robust mechanical performance and compliance with demanding interior specifications
  • Square 90x90mm form factor with 8.5mm depth, enabling modularity and flexible layout in horizontal or vertical mounting configurations
  • Flush-mounted, snap-on fastening design for precise wall alignment, recommended for indoor installations within -5 to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep bronze finish evoking classic ambiance with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
