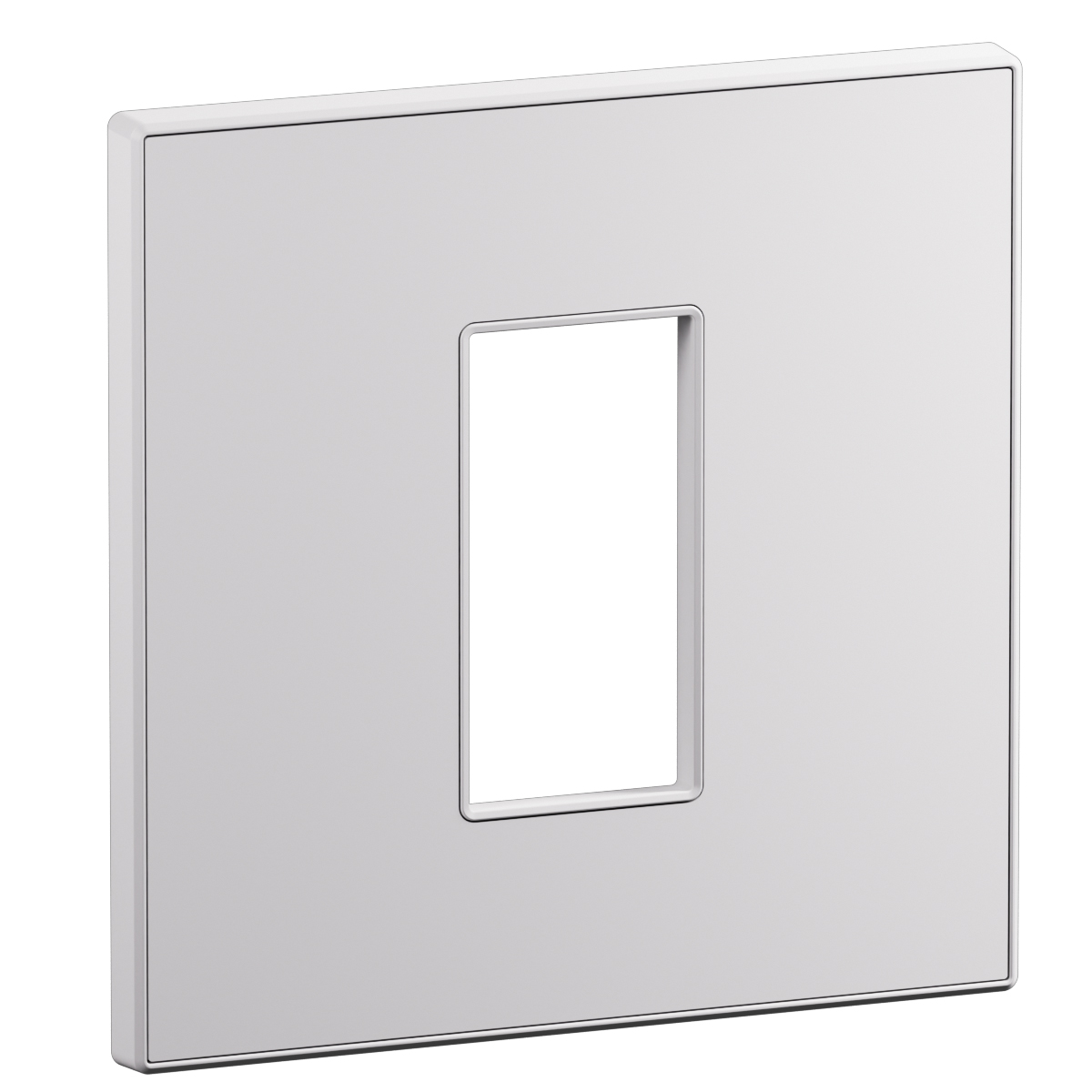

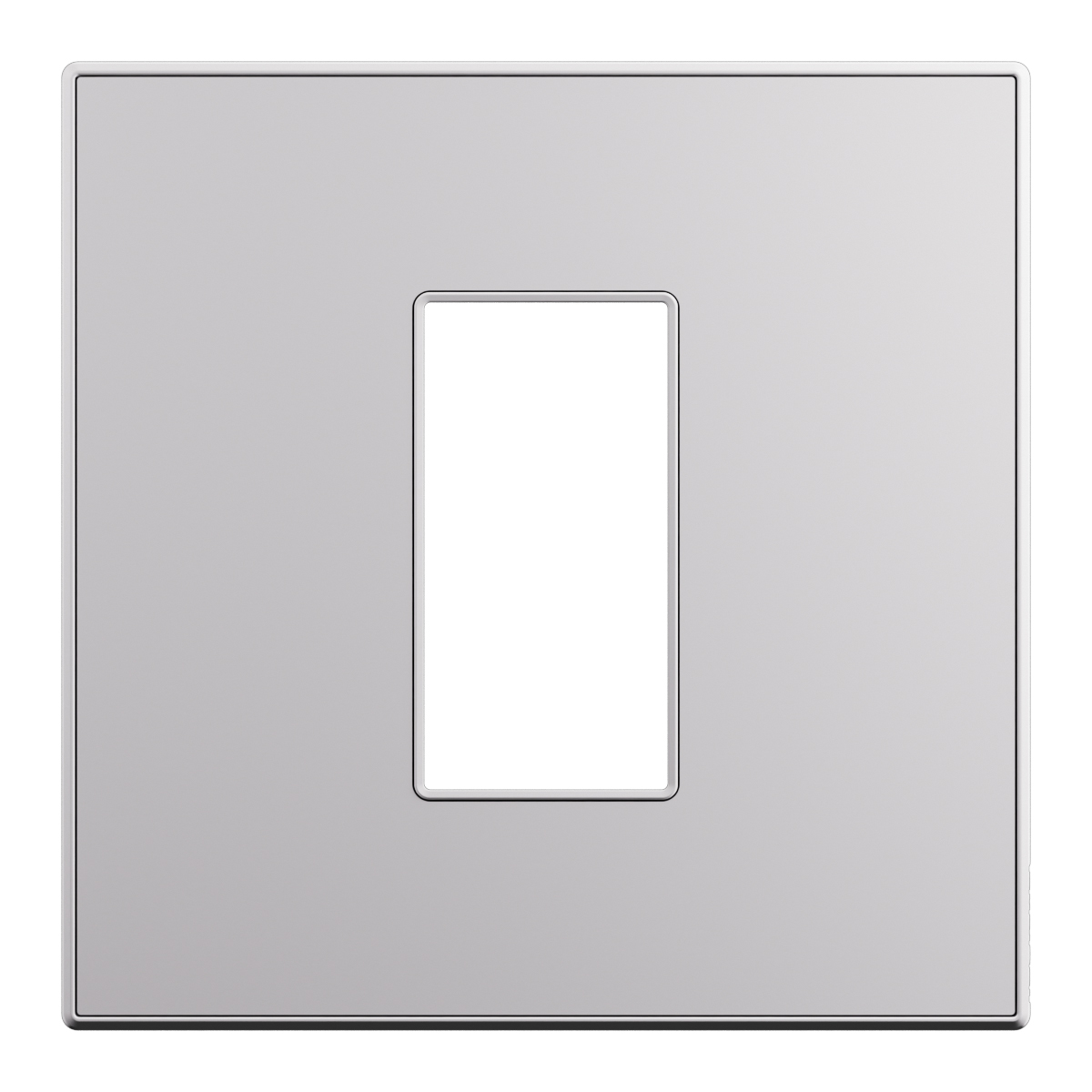

Arteor Advance - 1 gang 1 module British standard plate frosted white - Crystal polycarbonate cover frame - Matt velvet-touch finish

Arteor Advance Legrand

Arteor Advance - 1 gang 1 module British standard plate frosted white - Crystal polycarbonate cover frame - Matt velvet-touch finish

REF. AC1100FW EAN. 3414972733793
The 1 gang 1 module British standard plate frosted white delivers refined, square design and crystal polycarbonate durability. Its frosted white matt finish offers a velvet touch. An integrated adjuster ensures precise flush-mounted install
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 1 gang 1 module British standard plate frosted white delivers refined, square design and crystal polycarbonate durability. Its frosted white matt finish offers a velvet touch. An integrated adjuster ensures precise flush-mounted install

Product characteristics
  • One-gang, one-module British Standard cover plate for domestic switching devices, providing a single wiring device position in a compact footprint
  • Frosted white, matt lacquered finish delivers a refined, translucent aesthetic with reduced glare for premium interior applications
  • Crystal polycarbonate thermoplastic plate offers high mechanical stability, halogen-free composition, and a velvet-touch surface quality
  • Square 90x90mm form factor with 8.5mm depth enables modularity and flexibility in flush-mounted horizontal or vertical configurations
  • Snap-on fastening with integrated adjuster ensures precise, flush wall installation; suitable for indoor use within -5 to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and white translucence
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04494EN-00.pdf pdf (0.51 Mo)
