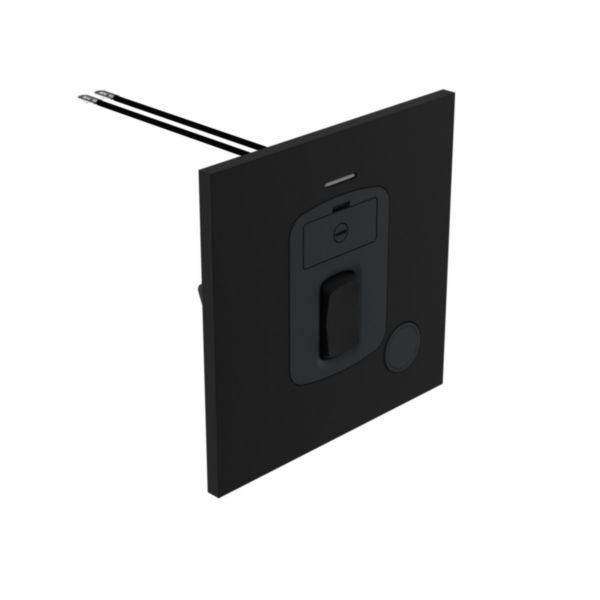

Art d'Arnould - 1 gang fused connect unit double pole switch+cord 13A-250V w/ power indicator Epure - Matt Black

Art d'Arnould LEGRAND

Art d'Arnould - 1 gang fused connect unit double pole switch+cord 13A-250V w/ power indicator Epure - Matt Black

REF. AR-68452 112 EAN. 3233625161079

1 gang fsd.connect double pole switch+cord 13A-250V w. Ind British Standard -Epure matt black

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

1 gang fsd.connect double pole switch+cord 13A-250V w. Ind British Standard -Epure matt black

Product characteristics
  • Perfectly adapting to the spirit and use of the place, this function offers architects and decorators the means to shape, design, and model spaces
  • Black finish
  • Colors and appearances may vary from one plate to another due to their handcrafted manufacturing
  • Mounted in a flush-mounted box according to your wall type and the number of functions in your installation
Recommendation / Restriction
  • It is recommended to install the plates only after the wall coatings have been completely finished (paint, fabrics, etc.). Indoor use only

The product's benefits

Avantages
  • Expertly handcrafted
  • Made from solid, genuine brass

Technical characteristics

Connection type Screw connection
Mounting method Front mounting
Type of current AC
Rated current 13 A
Rated voltage 250 V
Dimensions glass fuse 5x25 mm
Width 86 mm
Height 86 mm
Depth 29.5 mm
Built-in depth 23.5 mm
degree of impact strength (IK) IK02
Degree of protection (IP) IP21
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Frequency (Min-Max) 50-60 Hz
Terminal marking indication Yes
Colour Black
Halogen free Yes
Antimicrobial treatment No
Number of terminals 6
Terminals capacity (Min-Max) 2.5-6 mm²
Cable nature for connection Flexible or rigid
