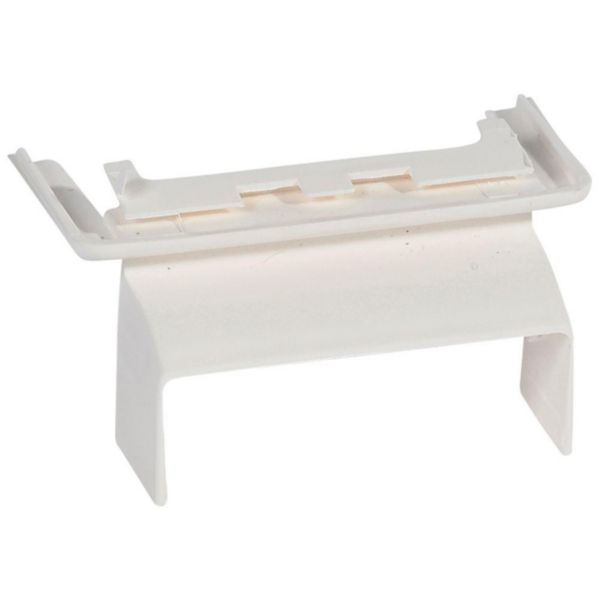

Adaptator for mounting Mosaic frames at end of the mini-trunking 60x20mm

DLPlus LEGRAND

Adaptator for mounting Mosaic frames at end of the mini-trunking 60x20mm

REF. 031645 EAN. 3245060316457
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Compatible with Mosaic frames cat.no 031611, 031613 and 031614
  • Material : Plastic
  • Colour : white

The product's benefits

Installation
  • Fixes at the end of the mini-trunking
Usage
  • Allows a protected connection of the various wires and cables from the mini-trunking and plinth to the mechanisms

Technical characteristics

Height baseboard duct 20 mm
Depth plinth skirting duct 60 mm
Equipped with None
Mounting method installation unit Standard
Material Plastic
Halogen free No
Antimicrobial treatment No
Colour White
RAL-number 9003
Decoration None

Documentation

1 document
Technical Sheet
F00383FR-04.pdf pdf (2.25 Mo)
2 documents
Catalogue Commercial Page
ex223001_1046.pdf pdf (0.12 Mo)
Catalogue Technical Page
ex223001_1048.pdf pdf (0.04 Mo)
2 documents
PEP
LGRP-01603-V02.01-EN.pdf pdf (0.92 Mo)
PEP
LGRP-01603-V02.01-FR.pdf pdf (0.88 Mo)
