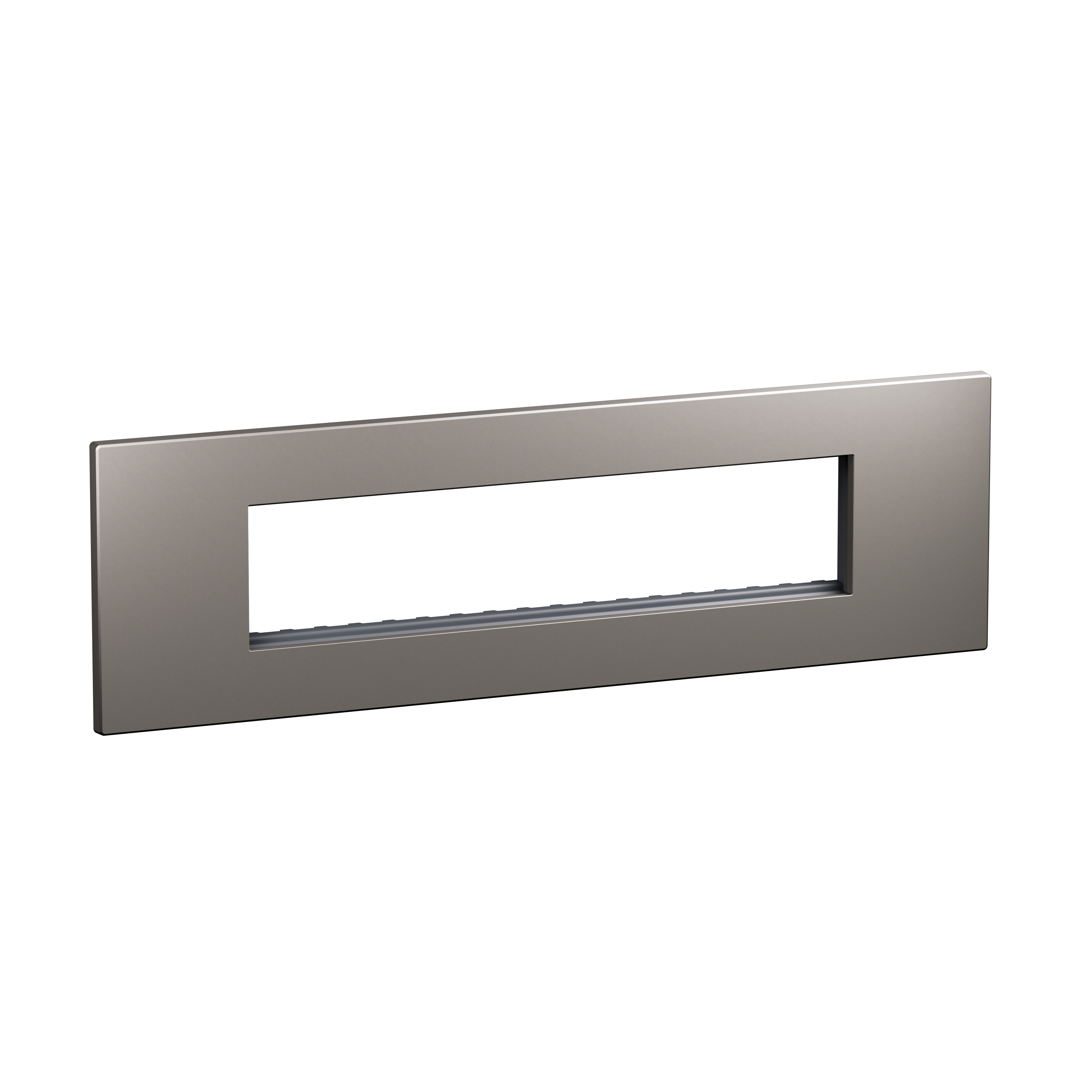

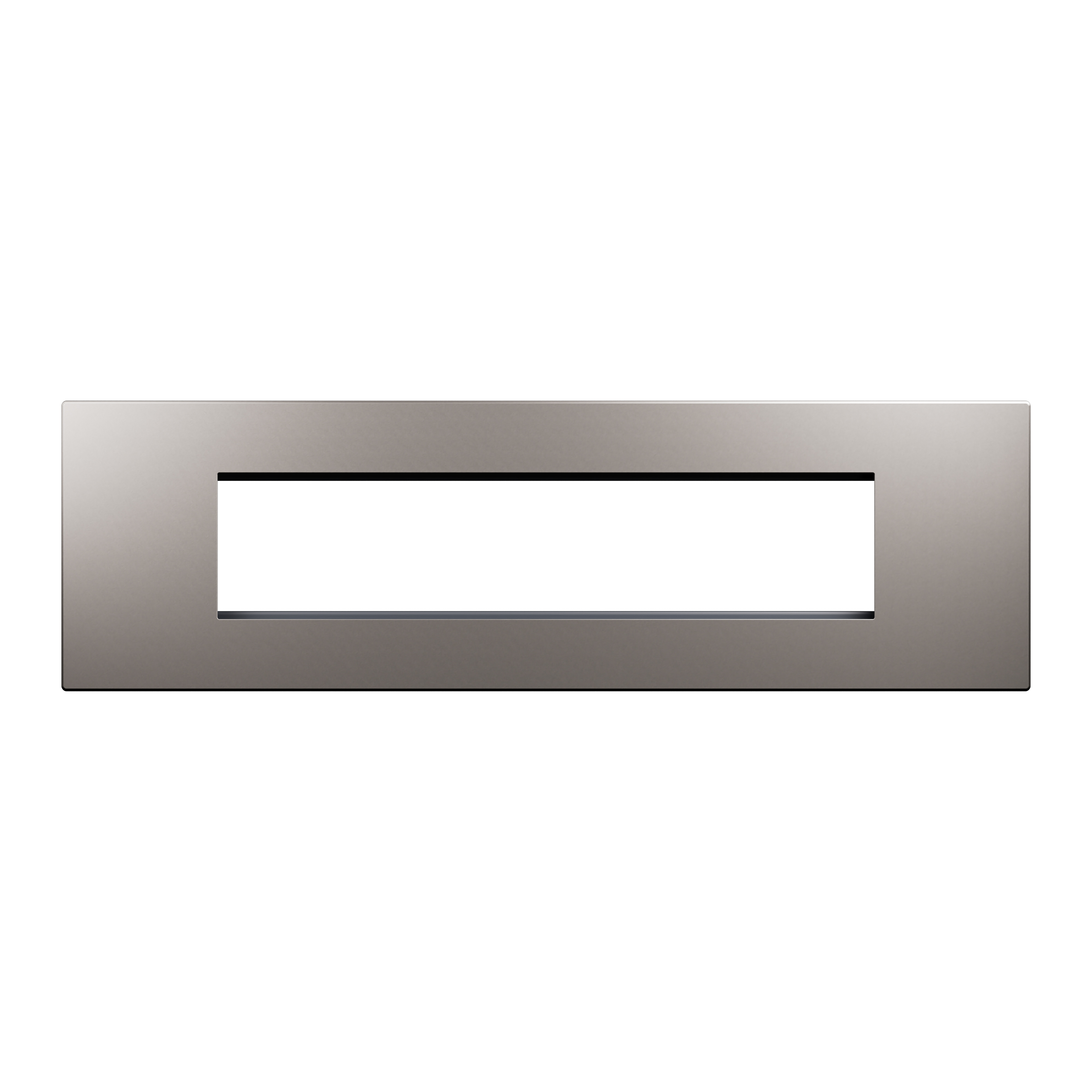

9 modules plate+frame matt titanium - 9m plate+frame mt - Horizontal 9-module cover frame - Matt thermoplastic, halogen free

Arteor Advance Legrand

9 modules plate+frame matt titanium - 9m plate+frame mt - Horizontal 9-module cover frame - Matt thermoplastic, halogen free

REF. AC1212MT EAN. 3414972820134
This 9 modules plate+frame matt titanium offers a sleek, horizontal 9-module layout for flush-mounted domestic switching devices. Its halogen free thermoplastic construction and -5° C to 35° C operating range ensure robust performance.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 9 modules plate+frame matt titanium offers a sleek, horizontal 9-module layout for flush-mounted domestic switching devices. Its halogen free thermoplastic construction and -5° C to 35° C operating range ensure robust performance.

Product characteristics
  • 9-module cover frame and plate assembly for domestic switching devices, enabling high-density horizontal configurations in a single gang.
  • Designed for horizontal flush-mounted installation with 9 horizontal and 1 vertical module positions, optimizing wall space in modular systems.
  • Manufactured from thermoplastic plastic, halogen free and non-transparent, suitable for standard residential and commercial environments.
  • Matt titanium finish with untreated surface for low reflectance and a contemporary aesthetic that coordinates with Arteor Advance devices.
  • Snap-on fastening with integrated mounting grid, 300mm width, 8.5mm depth, and operating temperature range from -5° C to 35° C for quick, reliable installation.

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 9
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 300 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
