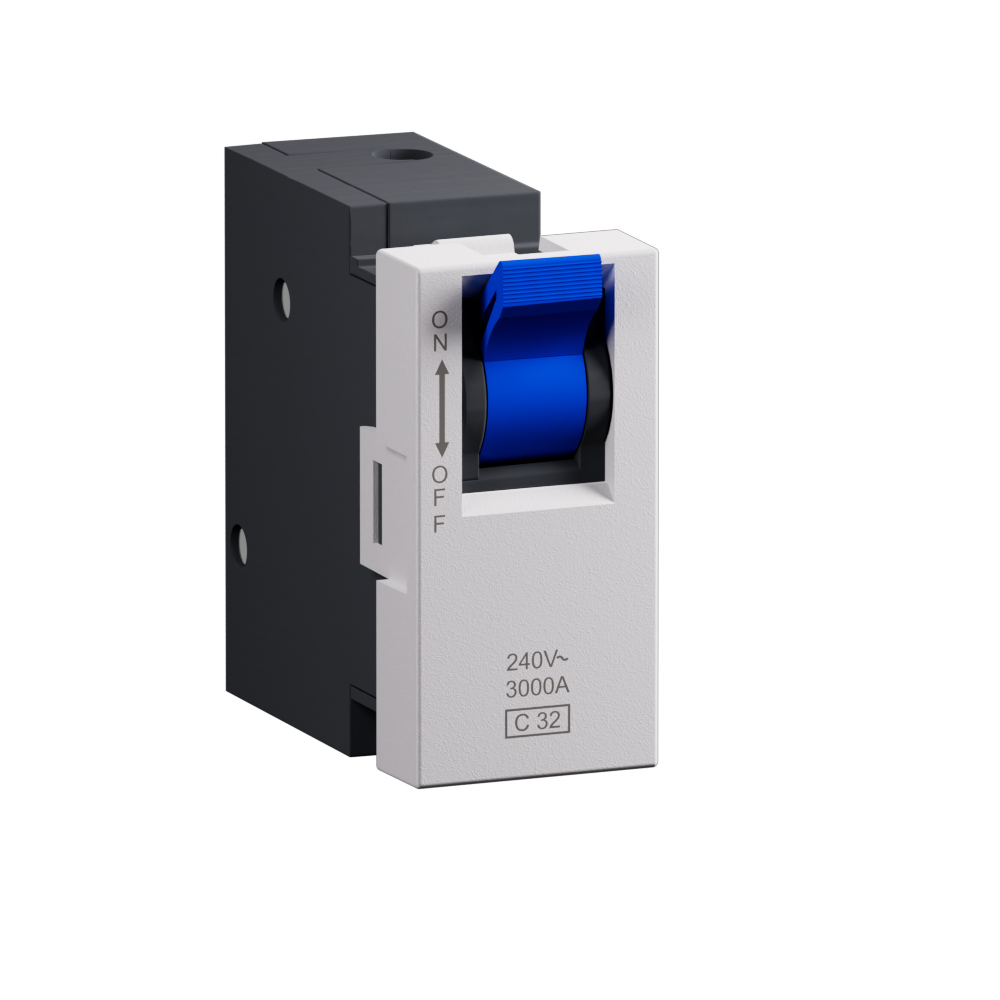

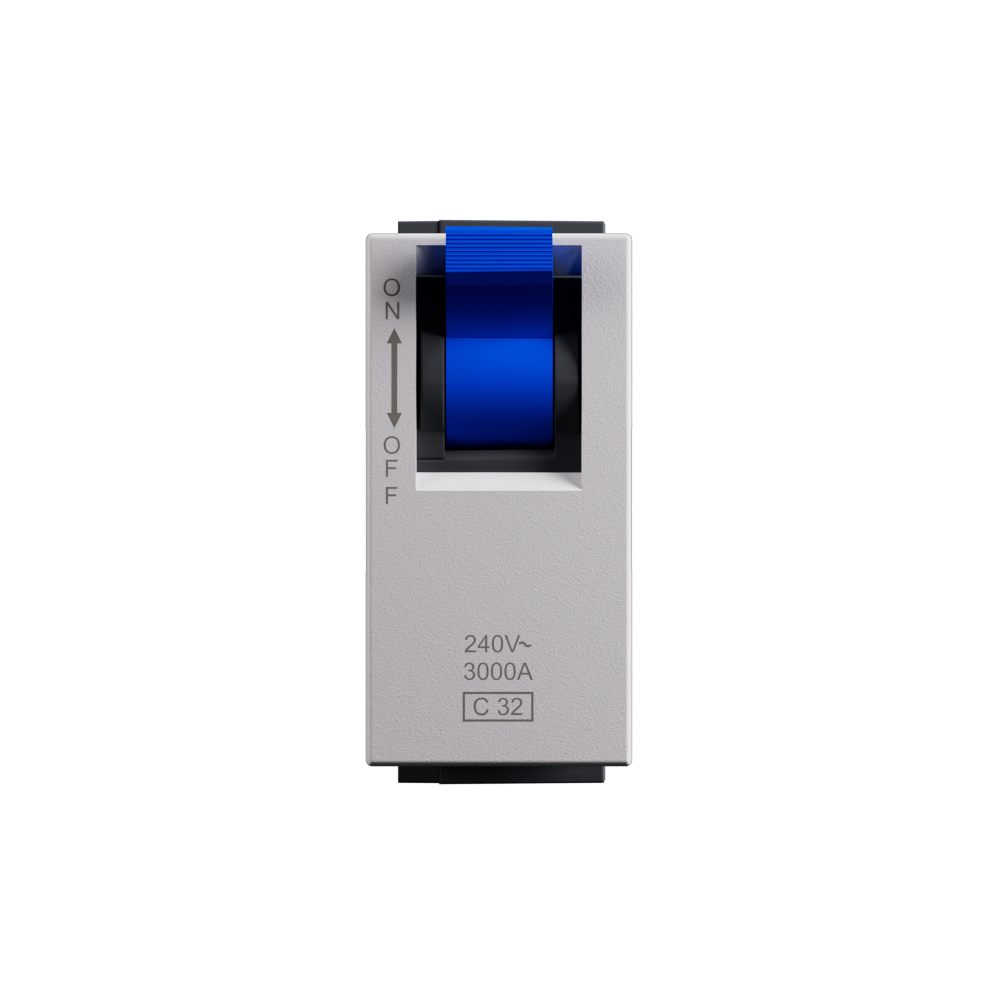

32A MCB 1 module matt white - 1-pole miniature circuit breaker - 32A rated current 220-240V AC - Flush-mounted IP20 white finish

Arteor Advance Legrand

32A MCB 1 module matt white - 1-pole miniature circuit breaker - 32A rated current 220-240V AC - Flush-mounted IP20 white finish

REF. AC626MW EAN. 3414972821421
This 32A MCB 1 module matt white delivers reliable 220-240V AC protection in a compact 1-pole design with 1.5kA breaking capacity, IP20 rating, flush-mounted installation, screwed terminal cable connections and 22.5mm width.
Download product sheet
Finition :
Rated current :
You can only compare 4 products, you must remove 1 to add this one

Description

This 32A MCB 1 module matt white delivers reliable 220-240V AC protection in a compact 1-pole design with 1.5kA breaking capacity, IP20 rating, flush-mounted installation, screwed terminal cable connections and 22.5mm width.

Product characteristics
  • 32A miniature circuit breaker, 1 protected pole, for 220–240V AC single-phase circuits
  • Rated short-circuit breaking capacity 1.5kA at 230V according to EN 60898 for reliable protection
  • Flush-mounted 1-module device (width 22.5mm, height 45mm) for compact integration in Arteor Advance systems
  • IP20 degree of protection, matt white finish, suitable for indoor distribution and control applications
  • Screwed cable terminals with bottom power supply direction for secure, conventional wiring in fixed installations

Technical characteristics

Number of poles (total) 1
Number of protected poles 1
Rated current 32 A
Rated voltage 240 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 1.5 kA
Voltage type AC
Flush-mounted installation Yes
Concurrently switching neutral conductor No
Overvoltage category 22.5
Additional equipment possible No
Width in number of modular spacings 22.5
Degree of protection (IP) IP20
Explosion-proof No
Width 22.5 mm
Height 45 mm
Nominal voltage (Min-Max) 220-240 V
Electric supplying direction From the bottom
Terminal marking indication No
Colour White
Halogen free No
Connection type Screwed terminal , Cable
Label space/information surface No
Mounting method Flush-mounted
