2x8 modules plate+frame matt white - 2-gang horizontal cover frame - 2x8-module capacity - Matt white thermoplastic, halogen free

Arteor Advance Legrand

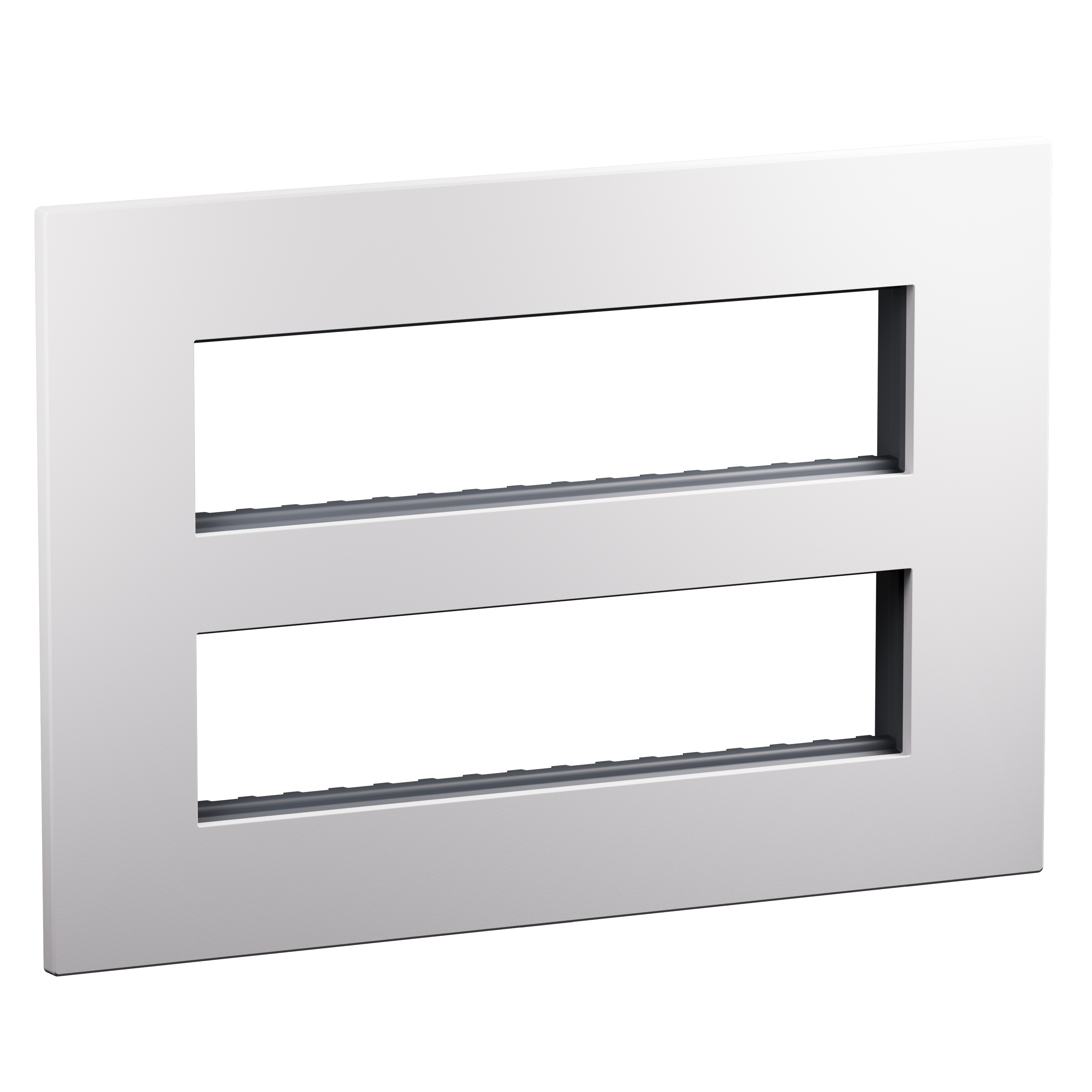

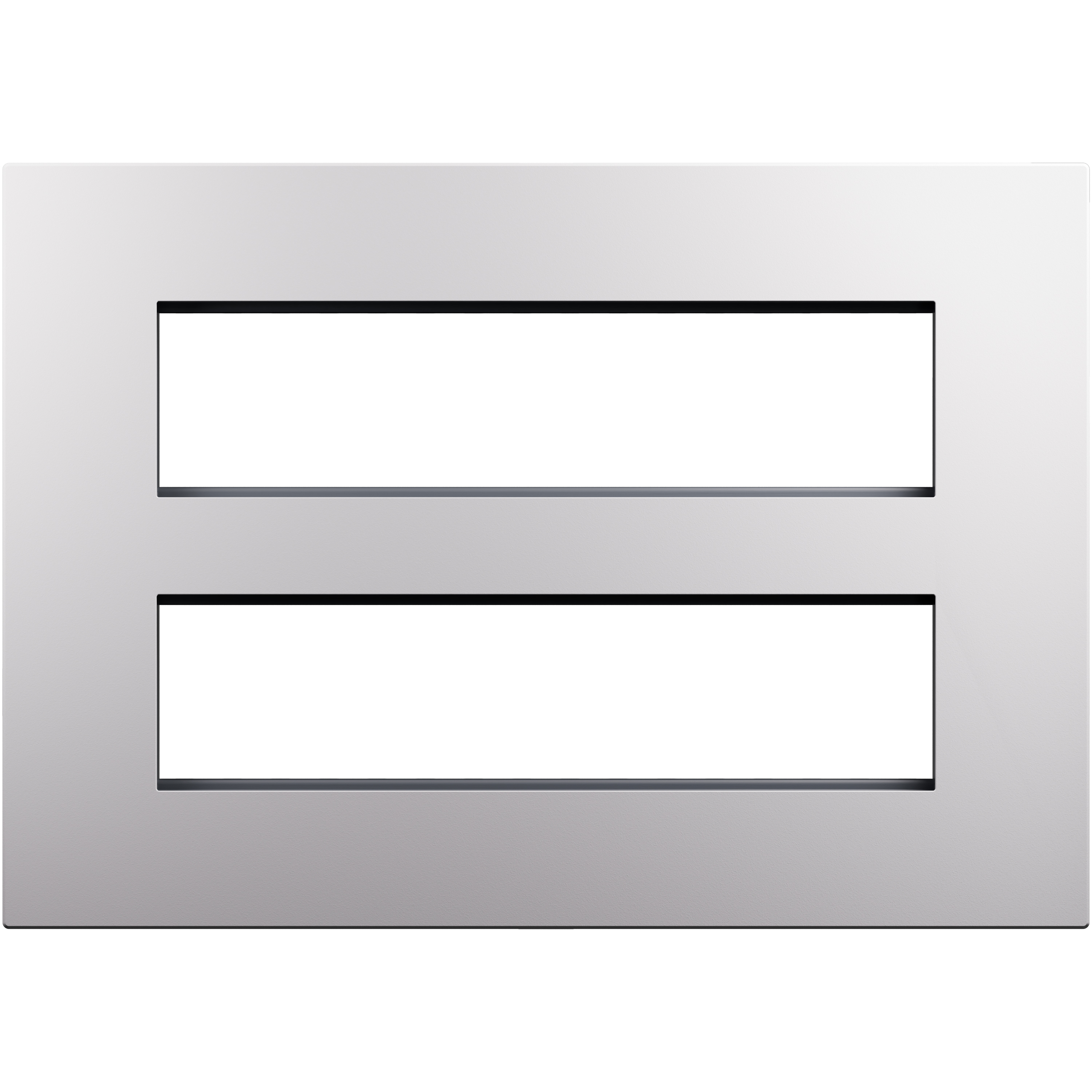

2x8 modules plate+frame matt white - 2-gang horizontal cover frame - 2x8-module capacity - Matt white thermoplastic, halogen free

REF. AC1213MW EAN. 3414972820257
This 2x8 modules plate+frame in matt white thermoplastic offers halogen-free safety and robust snap fastening. Its horizontal, flush-mounted design and slim 8.5mm profile ensure a clean finish for Arteor Advance.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x8 modules plate+frame in matt white thermoplastic offers halogen-free safety and robust snap fastening. Its horizontal, flush-mounted design and slim 8.5mm profile ensure a clean finish for Arteor Advance.

Product characteristics
  • 2x8-module cover frame for domestic switching devices, optimized for Arteor Advance modular installations
  • Horizontal mounting configuration with 1 horizontal unit and 2 vertical units, providing 2x8-module capacity
  • Flush-mounted thermoplastic construction, halogen free, with snap-on fastening for rapid, tool-less installation
  • Matt white finish (similar to RAL 9003), non-transparent, without label surface or hinged lid for clean architectural aesthetics
  • Compact dimensions 252.5x178x8.5mm, suitable for operating temperatures from -5° C to 35° C and storage from -10° C to 70° C

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 2
Number of modules horizontal (module system) 8
Number of modules vertical (module system) 2
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 252.5 mm
Height 178 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
