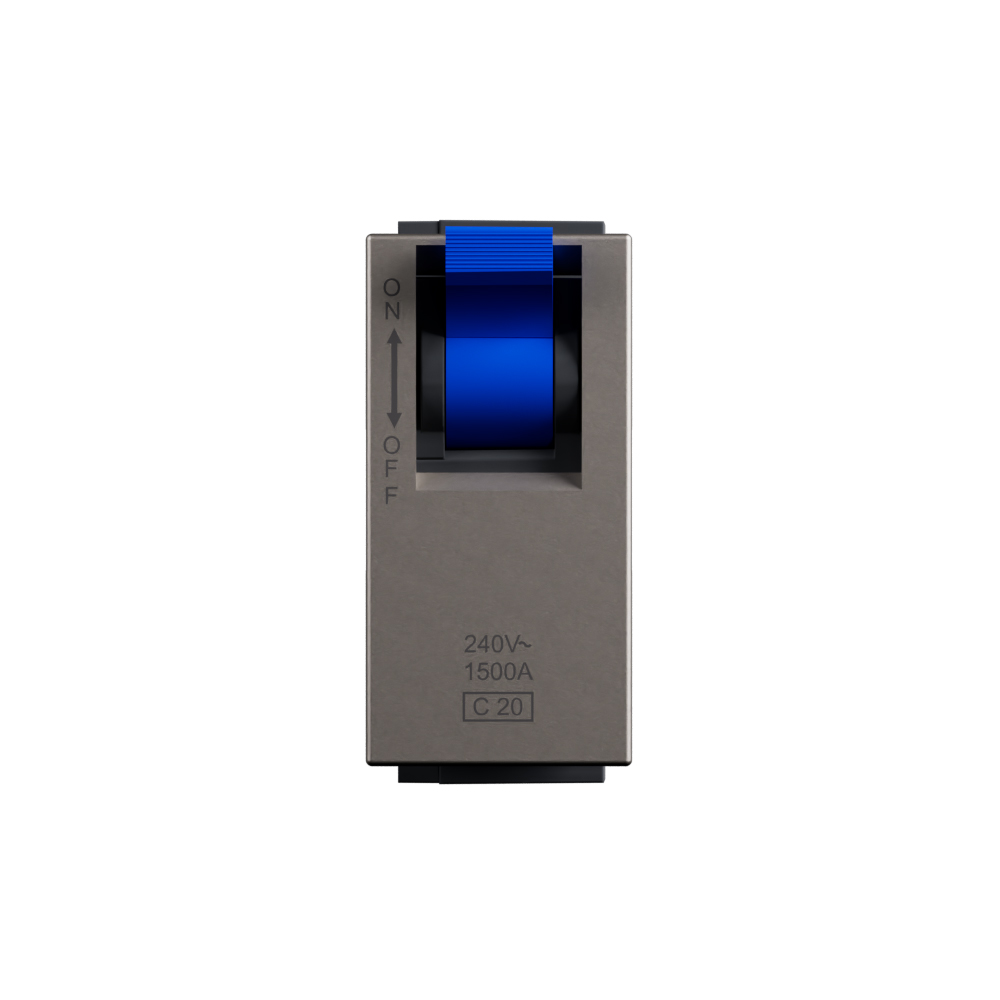

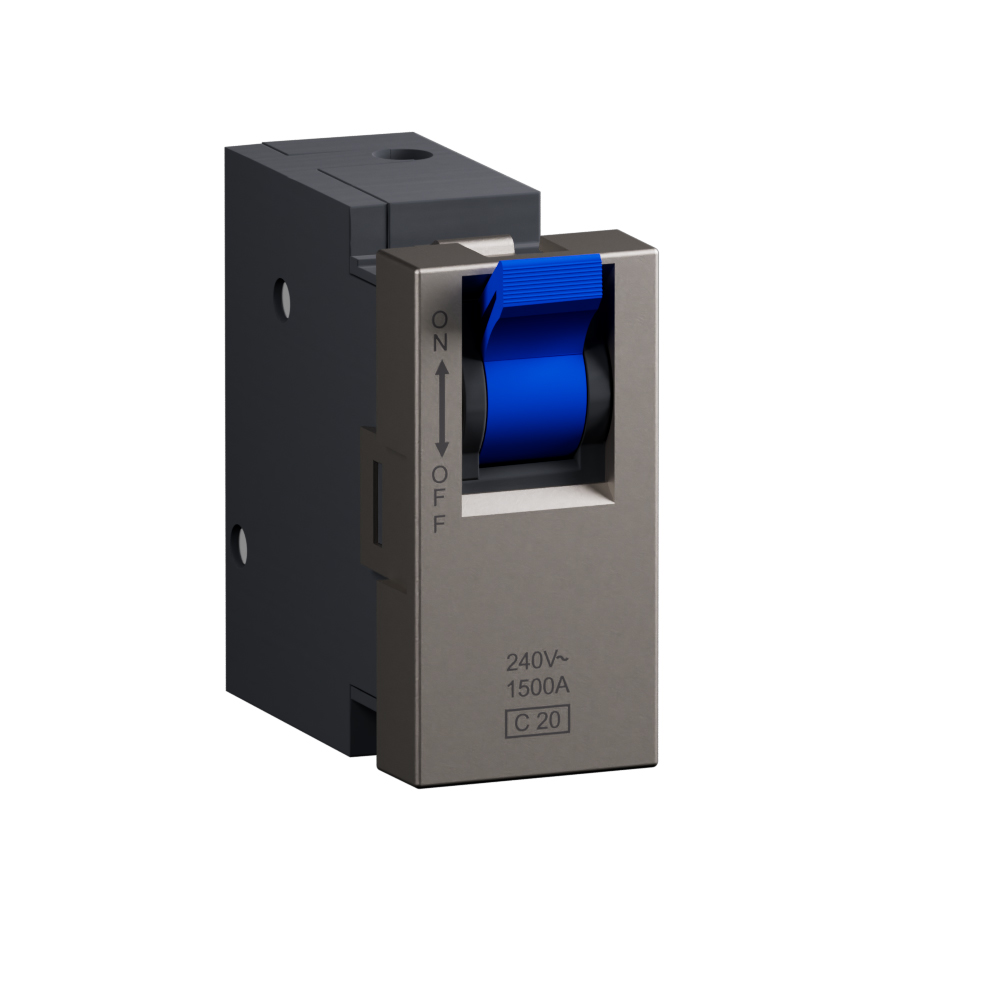

20A MCB 1 module matt titanium - 1-pole C-curve miniature circuit breaker - 20A rated current 220-240V AC - Flush-mounted IP20

Arteor Advance Legrand

20A MCB 1 module matt titanium - 1-pole C-curve miniature circuit breaker - 20A rated current 220-240V AC - Flush-mounted IP20

REF. AC625MT EAN. 3414972821308
This 20A MCB 1 module matt titanium offers reliable C-curve protection at 220V to 240V AC with 1.5kA breaking capacity. Its compact 1-pole, 22.5mm-wide design with IP20 terminals suits Arteor Advance installations.
Download product sheet
Finition :
Rated current :
You can only compare 4 products, you must remove 1 to add this one

Description

This 20A MCB 1 module matt titanium offers reliable C-curve protection at 220V to 240V AC with 1.5kA breaking capacity. Its compact 1-pole, 22.5mm-wide design with IP20 terminals suits Arteor Advance installations.

Product characteristics
  • 20A miniature circuit breaker, 1 module, C-curve, for 220–240V AC single-phase circuits
  • Rated short-circuit breaking capacity 1.5kA at 230V according to EN 60898 for reliable protection
  • Single-pole protection with bottom power supply and screwed cable terminals for secure connections
  • Flush-mounted installation with 22.5mm module width and 45mm height, IP20 degree of protection
  • Matt titanium finish coordinated with Arteor Advance range for aesthetic integration in premium installations

Technical characteristics

Release characteristic C
Number of poles (total) 1
Number of protected poles 1
Rated current 20 A
Rated voltage 240 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 1.5 kA
Voltage type AC
Flush-mounted installation Yes
Concurrently switching neutral conductor No
Overvoltage category 22.5
Additional equipment possible No
Width in number of modular spacings 22.5
Degree of protection (IP) IP20
Explosion-proof No
Width 22.5 mm
Height 45 mm
Nominal voltage (Min-Max) 220-240 V
Electric supplying direction From the bottom
Terminal marking indication No
Colour Titanium
Halogen free No
Connection type Screwed terminal , Cable
Label space/information surface No
Mounting method Flush-mounted
