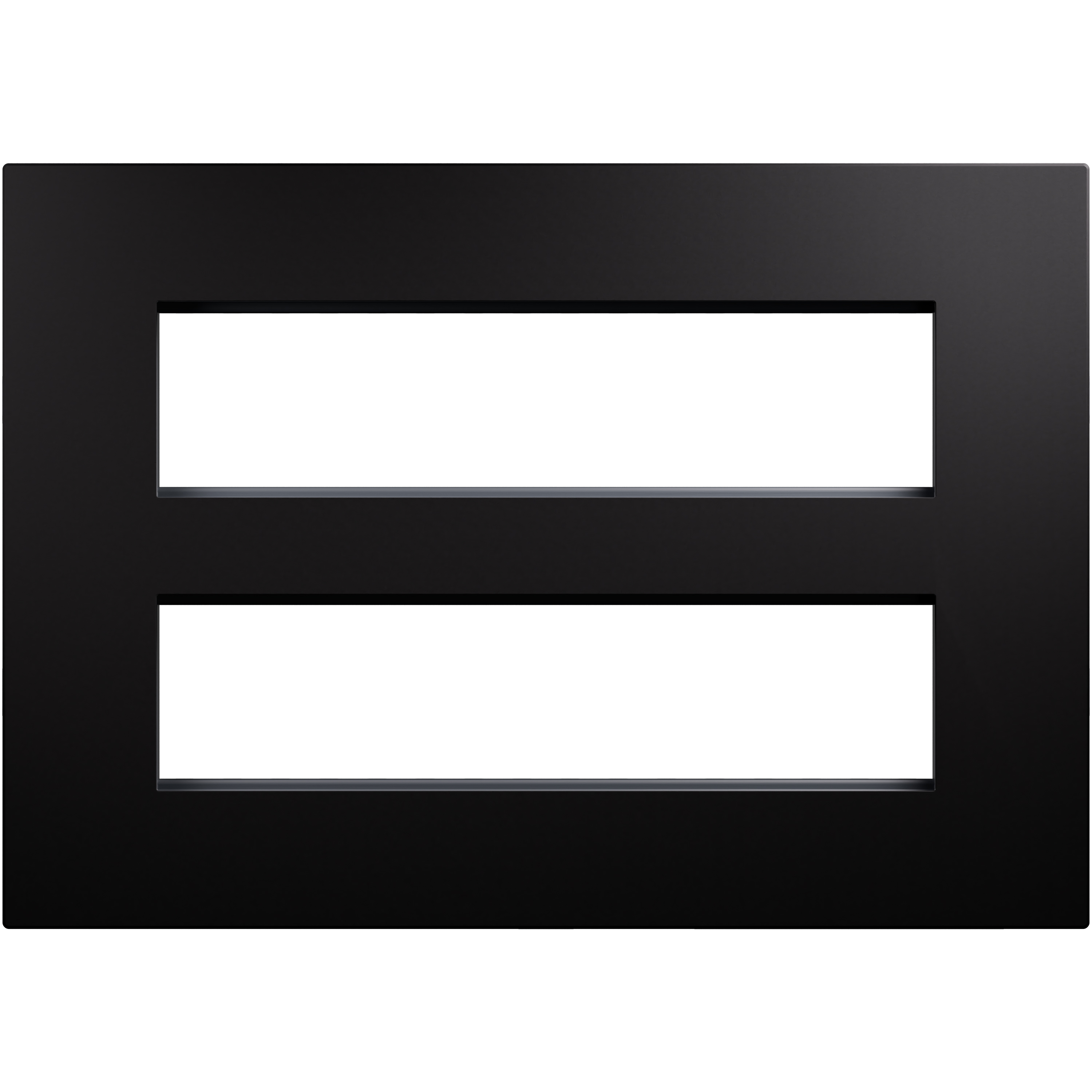

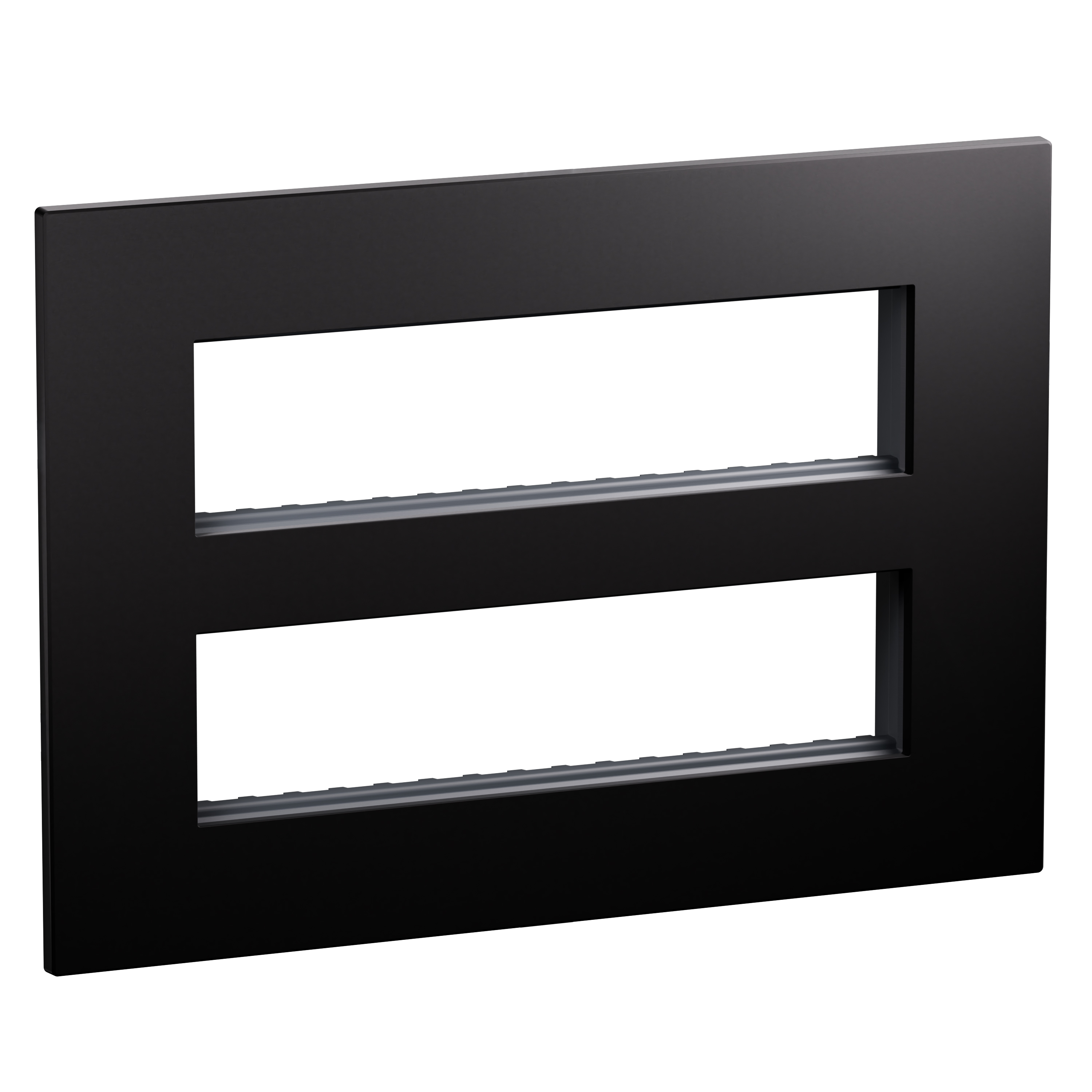

2 x 8 modules plate+frame matt black - 2x8M horizontal/vertical cover frame - Flush-mounted thermoplastic, halogen free

Arteor Advance Legrand

2 x 8 modules plate+frame matt black - 2x8M horizontal/vertical cover frame - Flush-mounted thermoplastic, halogen free

REF. AC1213MB EAN. 3414972820196
This 2x8 modules plate+frame in matt black thermoplastic offers robust flush-mounted installation and snap fastening. Its halogen-free construction and lacquered matt surface ensure safety and durability for domestic switching layouts.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x8 modules plate+frame in matt black thermoplastic offers robust flush-mounted installation and snap fastening. Its halogen-free construction and lacquered matt surface ensure safety and durability for domestic switching layouts.

Product characteristics
  • Cover frame for domestic switching devices, 2-gang configuration for Arteor Advance range
  • Accommodates 2 x 8 modules (horizontal 8M per unit) for high-density wiring device layouts
  • Designed for horizontal flush-mounted installation, with engage (snap) fastening for quick mounting
  • Matt black lacquered thermoplastic, halogen free, non-transparent, without label space or hinged lid
  • Compact dimensions 252.5x178x8.5mm (W x H x D), suitable for operating temperatures from -5° C to 35° C and storage from -10° C to 70° C

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 2
Number of modules horizontal (module system) 8
Number of modules vertical (module system) 2
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 252.5 mm
Height 178 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
