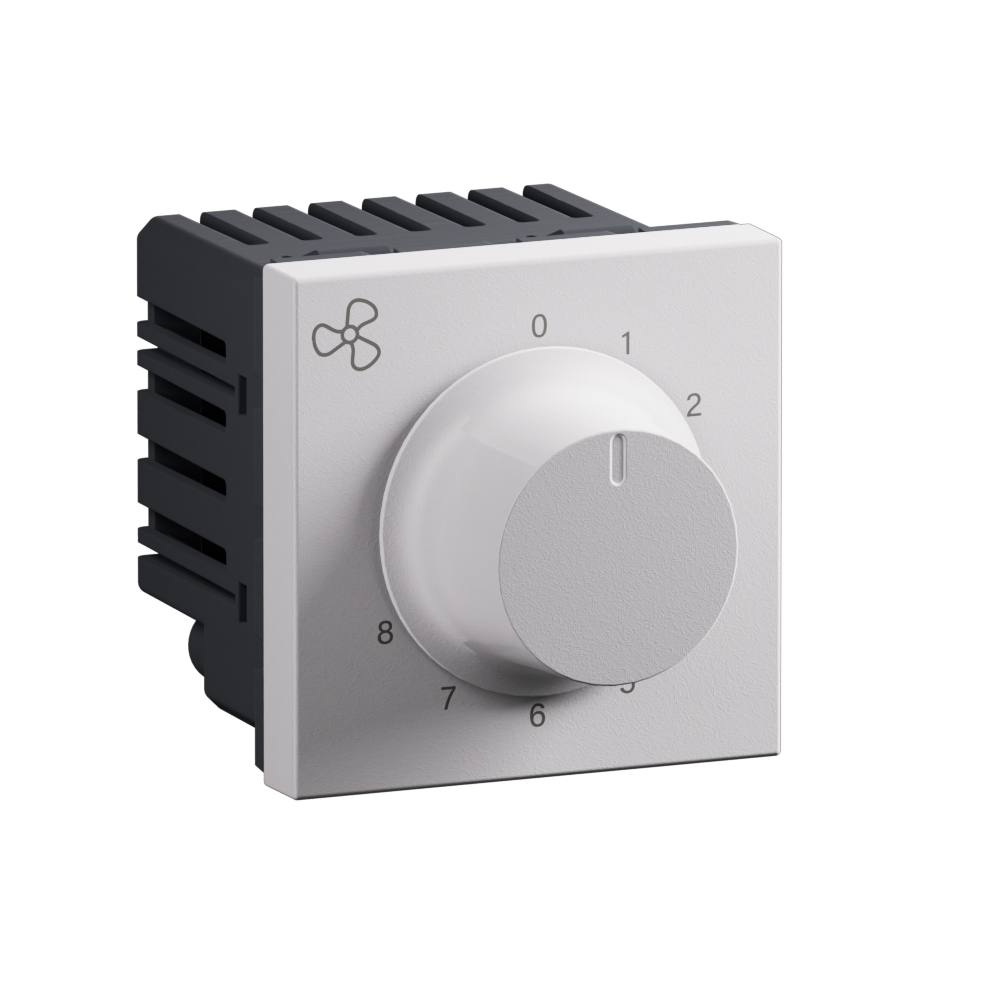

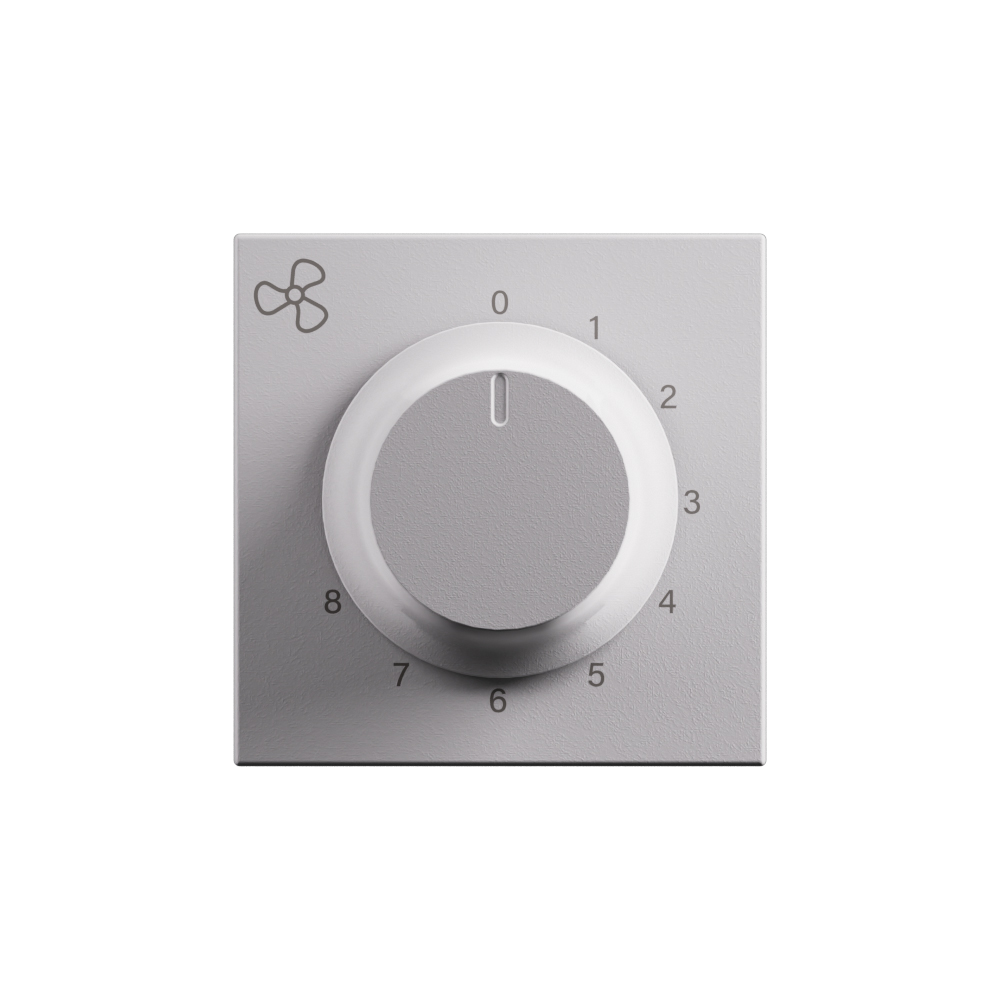

2 modules rotary fan controller 100W 8 steps matt white - 2M flush-mounted fan speed controller - 220-240V 1-phase - IP20 white housing

Arteor Advance Legrand

2 modules rotary fan controller 100W 8 steps matt white - 2M flush-mounted fan speed controller - 220-240V 1-phase - IP20 white housing

REF. AC664MW EAN. 3414972821605
This 2 modules rotary fan controller delivers 8-step speed control for 220-240V single-phase fans up to 100W. Its flush-mounted design and matt white RAL9003 finish integrate into modern installations with IP20 protection.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 modules rotary fan controller delivers 8-step speed control for 220-240V single-phase fans up to 100W. Its flush-mounted design and matt white RAL9003 finish integrate into modern installations with IP20 protection.

Product characteristics
  • Flush-mounted single-phase speed controller for fan applications, 220 to 240V output voltage range with integrated switching contact.
  • Supports up to 100W fan load with 8 discrete speed steps, providing precise multi-step airflow control rather than stepless regulation.
  • Rotary turn-button operation for intuitive manual speed selection, optimized for 1-phase fan motors without temperature sensing.
  • Compact 2-module mechanism with 45mm height, 45mm width, and 33mm depth, suitable for standard flush-mount wall boxes.
  • Matt white finish (color white, RAL 9003) with IP20 degree of protection, matching Arteor Advance aesthetic requirements for indoor installations.

Technical characteristics

Mounting method Flush-mounted
Colour White
RAL-number 9003
Output voltage (Min-Max) 220-240 V
Number of phases 1
Power control stepless No
Number of steps 8
Method of operation Turn button
Lighting None
Switching contact Yes
With temperature sensor No
Height 45 mm
Width 45 mm
Depth 33 mm
Degree of protection (IP) IP20
