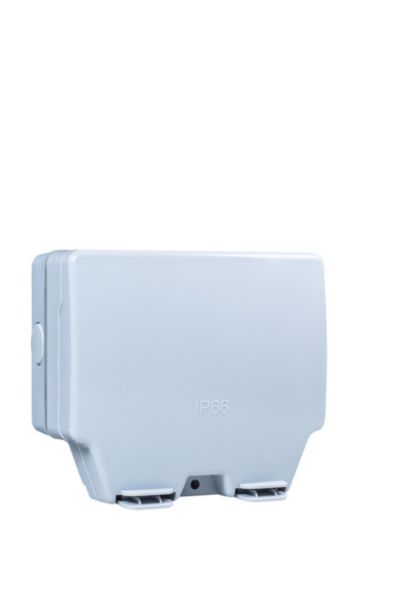

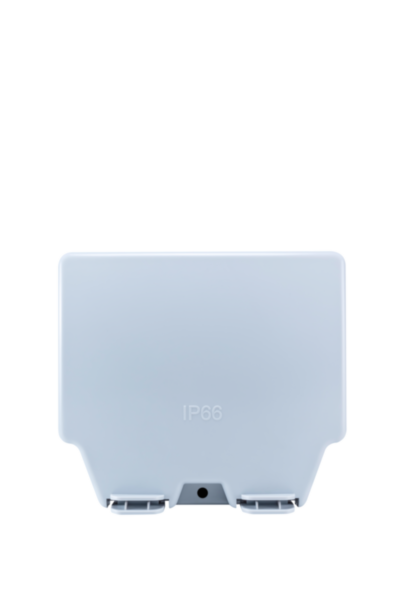

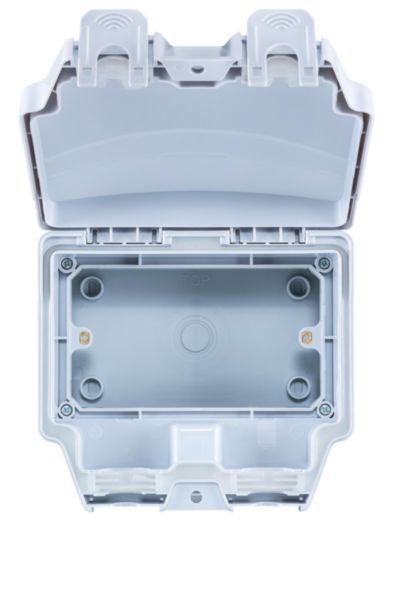

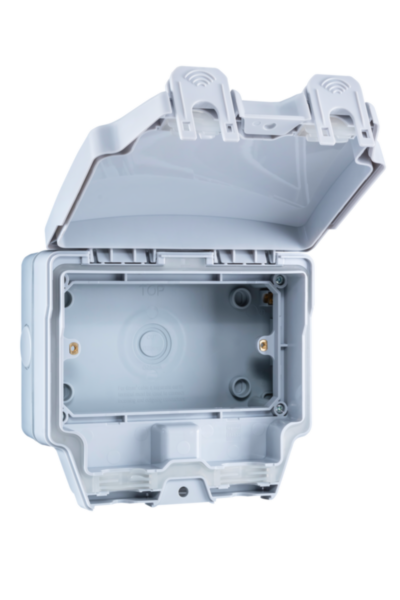

2 gang BS enclosure IP 66 not equipped
LEGRAND
2 gang BS enclosure IP 66 not equipped
REF. 684632
EAN.
3414972374675
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Antimicrobial treatment | No |
|---|---|
| Assembly arrangement | Other |
| Suitable for modular domestic switching devices | No |
| Number of units | 1 |
| Mounting direction | Horizontal and vertical |
| Shape | Other |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Grey |
| Transparent | No |
| With cover frame | No |
| Cross-trunking mounting | No |
| With duct entry | Yes |
|---|---|
| With cable entry | Yes |
| With screw gland entry | No |
| Shock resistant | Yes |
| Degree of protection (IP) | IP66 |
| Width | 169 mm |
| Height | 152 mm |
| Depth | 89 mm |
| Device width | 169 mm |
| Device height | 152 mm |
| Device depth | 89 mm |
| Degree of impact strength (IK) | IK07 |
| Operating / setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
| Cable support | Other |
