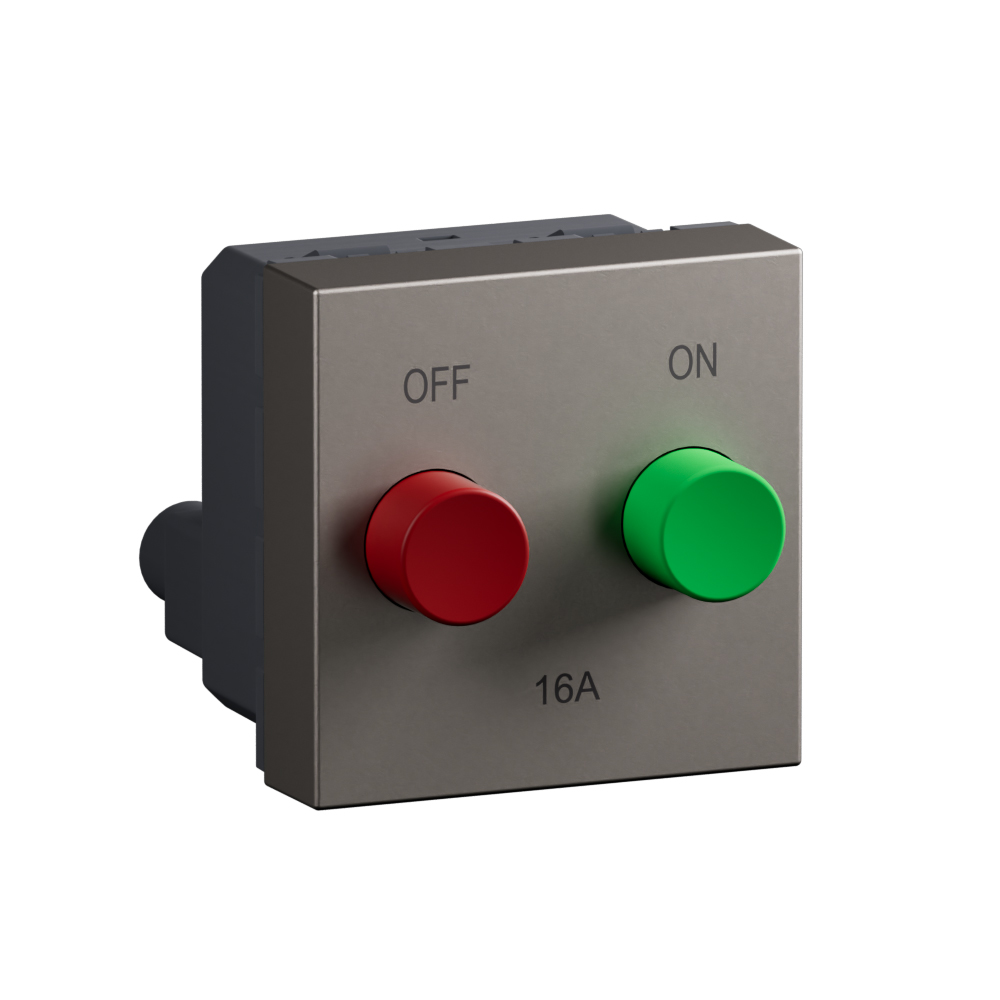

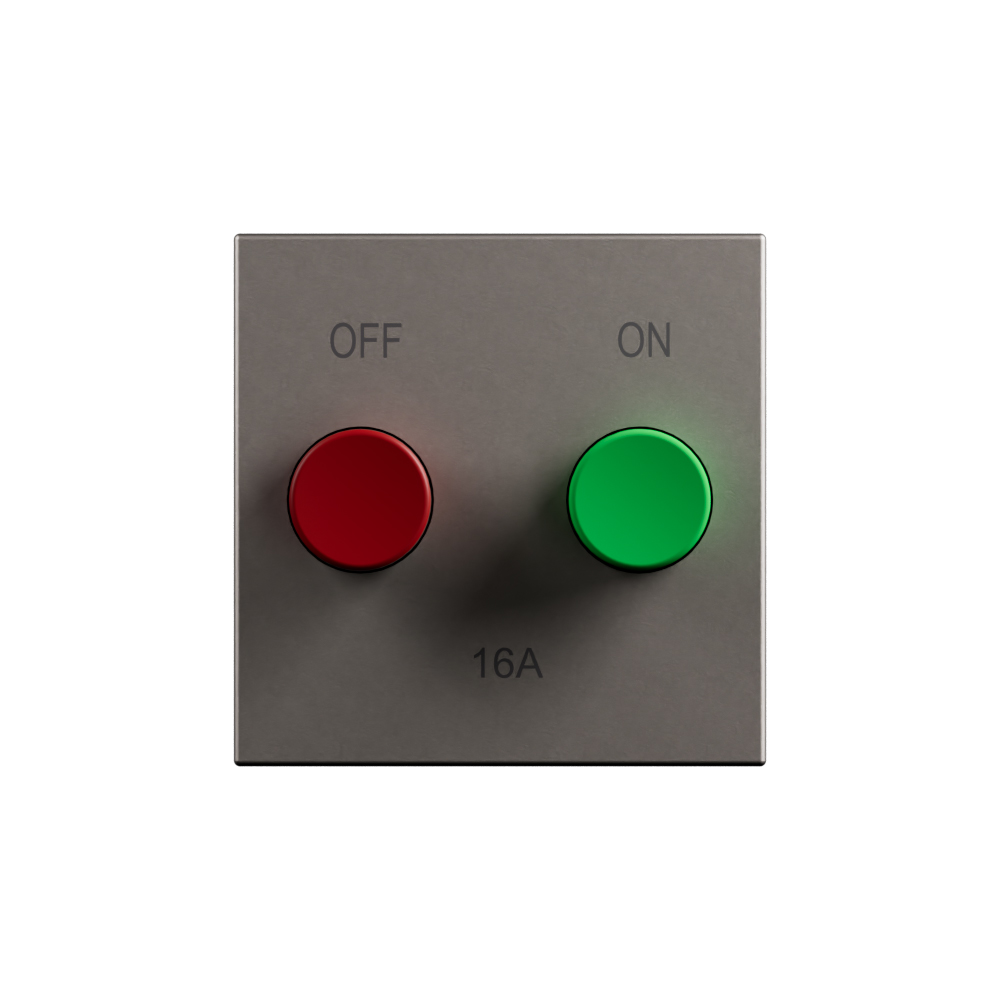

16A motor starter 2 module matt titanium - 16A 250V AC - 2-module modular rocker switch - Matt titanium thermoplastic housing

Arteor Advance Legrand

16A motor starter 2 module matt titanium - 16A 250V AC - 2-module modular rocker switch - Matt titanium thermoplastic housing

REF. AC20111MT EAN. 3414972820318
This 16A motor starter is a compact matt titanium 2‑module device for modular domestic installations. It offers reliable 250V AC switching with rocker/button operation and screwed terminals. Its snap‑in mounting simplifies installation
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 16A motor starter is a compact matt titanium 2‑module device for modular domestic installations. It offers reliable 250V AC switching with rocker/button operation and screwed terminals. Its snap‑in mounting simplifies installation

Product characteristics
  • 16A motor starter switch for AC loads up to 250V, optimized for domestic and light commercial motor control applications
  • 2-module modular device (45mmx45mm) for integration into Arteor Advance frames and standard module supports
  • Dual rocker/button actuation with push-button function, enabling independent control of two circuits or motor functions
  • Matt lacquered thermoplastic front in titanium color for enhanced scratch resistance and premium architectural integration
  • IP20-rated installation switch with screw terminals for flexible conductors and snap-in mounting for fast, secure installation

Technical characteristics

Wiring system Other
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch Yes
Number of rockers 2
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Colour of switch operator Other
Label space/information surface No
Lighting No
Suitable for degree of protection (IP) IP20
Nominal voltage 250 V
Rated current 16 A
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45 mm
Device height 45 mm
Device depth 60 mm
Built-in depth 40 mm
Min. depth of built-in installation box 40 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Cable nature for connection Flexible
