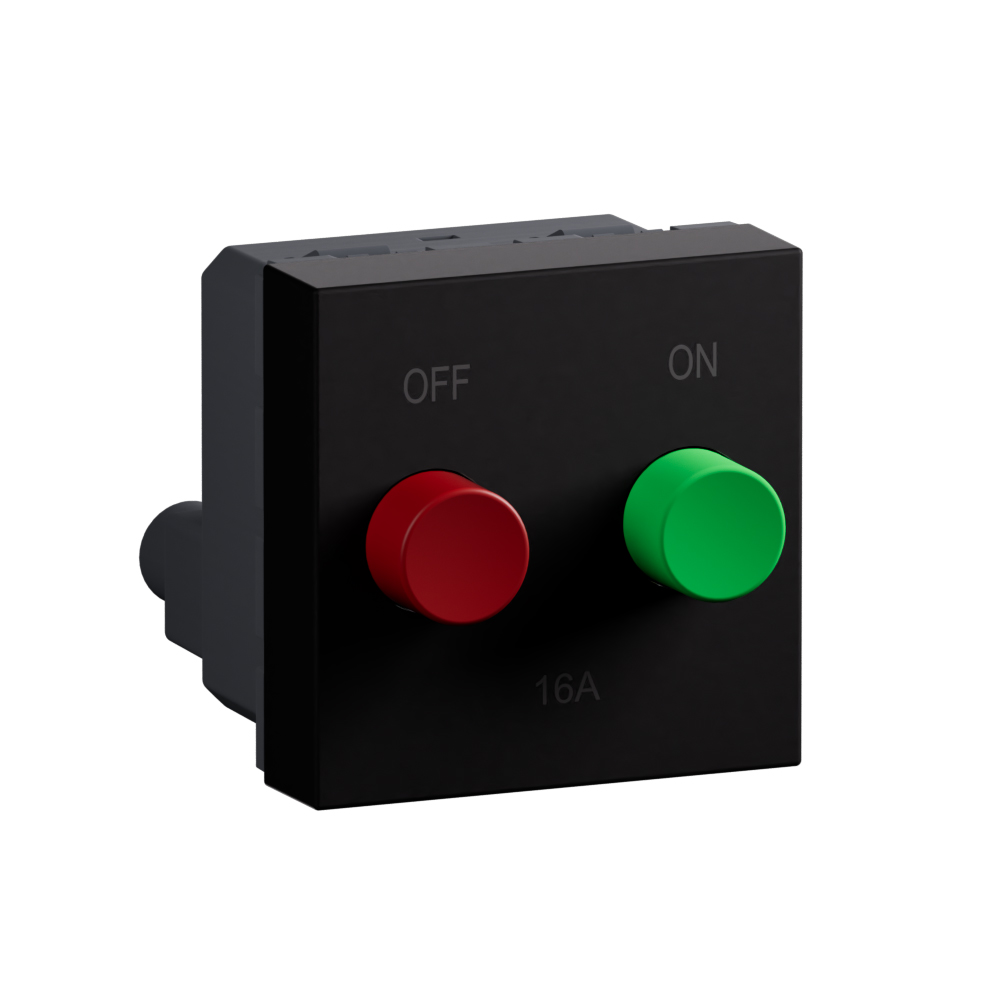

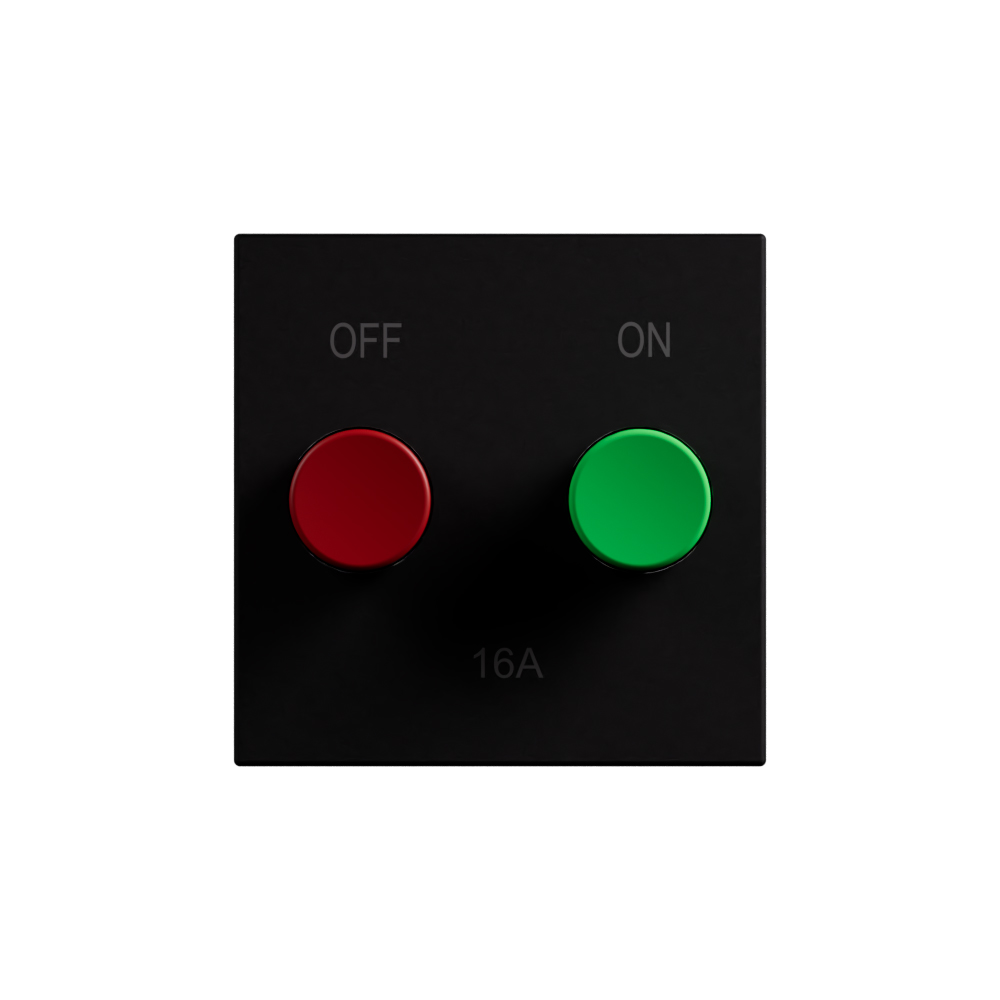

16A motor starter 2 module matt black - 16A motor starter 2M matt black - 2-module rocker/button - 250V AC 16A IP20

Arteor Advance Legrand

16A motor starter 2 module matt black - 16A motor starter 2M matt black - 2-module rocker/button - 250V AC 16A IP20

REF. AC20111MB EAN. 3414972820288
This 16A motor starter is a compact 2‑module matt black device for modular domestic installations. It offers reliable 250V AC switching with rocker/button operation and screwed terminals. Its 45x45mm format simplifies panel integration.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 16A motor starter is a compact 2‑module matt black device for modular domestic installations. It offers reliable 250V AC switching with rocker/button operation and screwed terminals. Its 45x45mm format simplifies panel integration.

Product characteristics
  • 16A motor starter installation switch for domestic applications, designed as a 2-module device for modular frames in the Arteor Advance range
  • Rocker/button actuation with 2 rockers and integrated push-button function, enabling reliable motor control on 250V AC circuits up to 16A
  • Matt black lacquered thermoplastic front with snap-in fastening for quick, secure mounting without a mounting plate
  • Compact 45x45mm form factor with 40mm built-in depth, suitable for installation boxes with minimum 40mm depth
  • Screwed terminals with clear terminal marking for flexible cable connection, IP20 protection rating, non-halogen-free and without antimicrobial treatment

Technical characteristics

Wiring system Other
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch Yes
Number of rockers 2
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Colour of switch operator Other
Label space/information surface No
Lighting No
Suitable for degree of protection (IP) IP20
Nominal voltage 250 V
Rated current 16 A
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45 mm
Device height 45 mm
Device depth 60 mm
Built-in depth 40 mm
Min. depth of built-in installation box 40 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Cable nature for connection Flexible
