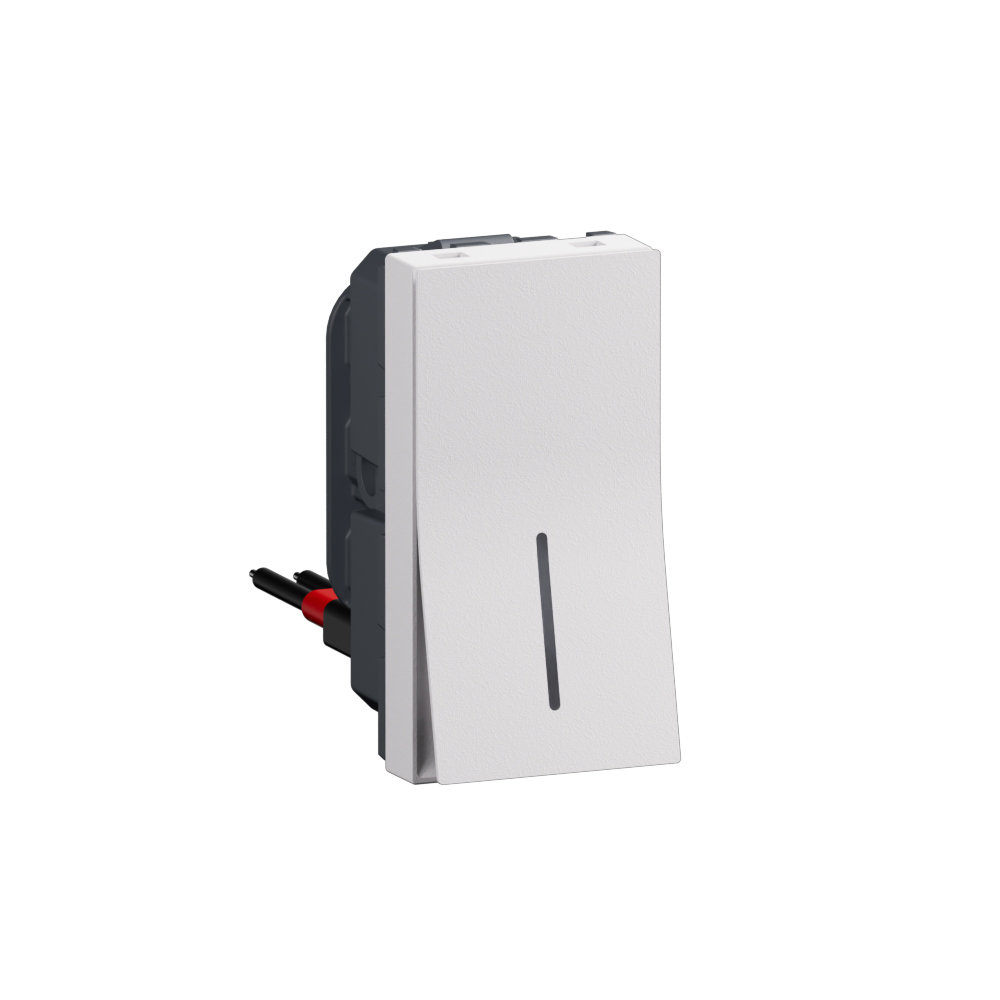

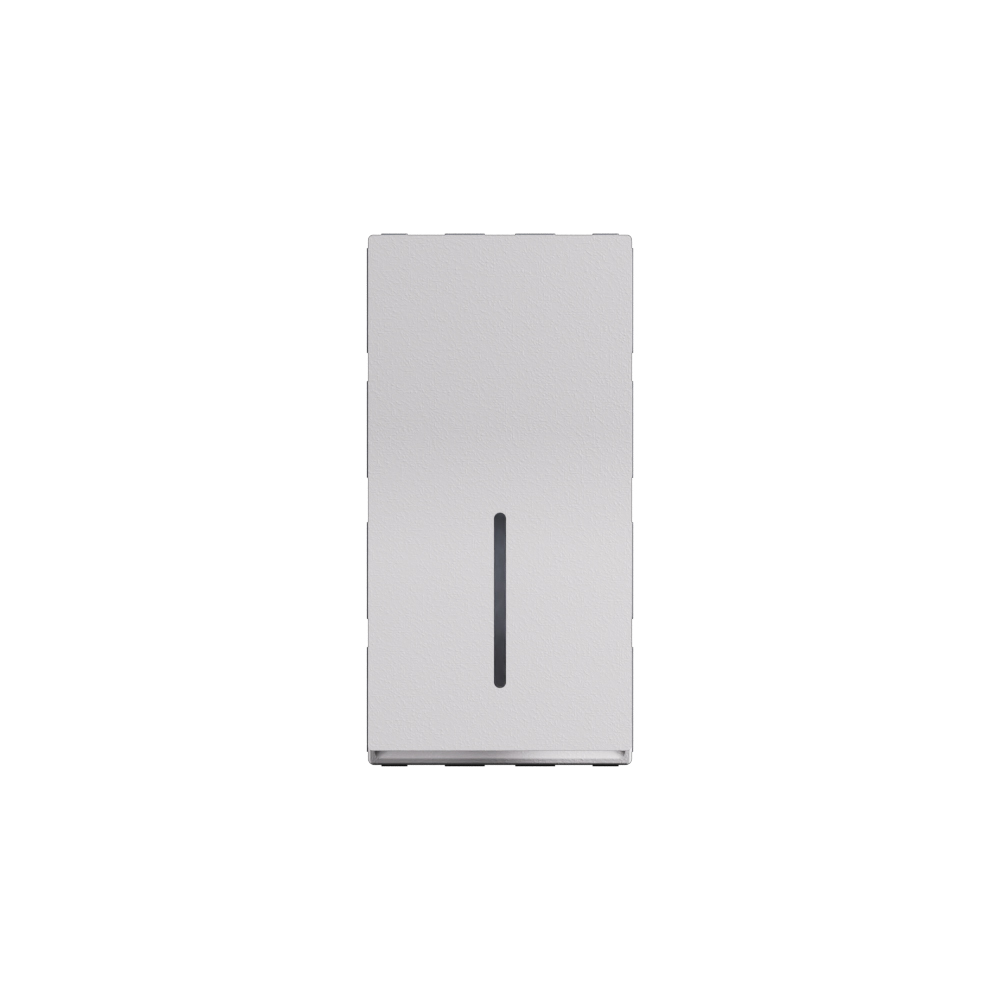

1 module 2 way 16AX single pole switch with indicator matt white - 1M 2-way rocker switch - 230V AC 16A - Matt white thermoplastic IP20

Arteor Advance Legrand

1 module 2 way 16AX single pole switch with indicator matt white - 1M 2-way rocker switch - 230V AC 16A - Matt white thermoplastic IP20

REF. AC22102MW EAN. 3414973057263
This 1-module, 2-way, 16AX single-pole switch with indicator in matt white delivers reliable 230V AC control. Its compact 22.5x45mm format, IP20 rating, and screw terminals(0.75mm² to 1.5mm²) ensure robust, space-efficient mounting.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 1-module, 2-way, 16AX single-pole switch with indicator in matt white delivers reliable 230V AC control. Its compact 22.5x45mm format, IP20 rating, and screw terminals(0.75mm² to 1.5mm²) ensure robust, space-efficient mounting.

Product characteristics
  • 1-module, 2-way 16AX single-pole installation switch for 230V AC circuits in modular domestic systems
  • Rocker-operated, 1-gang mechanism with snap-in mounting for module frames and screwed terminals (0.75mm² to 1.5mm²)
  • Matt white thermoplastic body (similar to RAL 9003) with white actuator, untreated surface, non-halogen-free
  • Compact form factor (22.5x45x38mm) suitable for 25mm minimum box depth, IP20 indoor rating
  • Integrated indicator and terminal marking for clear circuit identification and fast, error-reduced installation

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting Yes
Function lighting Illuminated (on)
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Rated current 16 A
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
