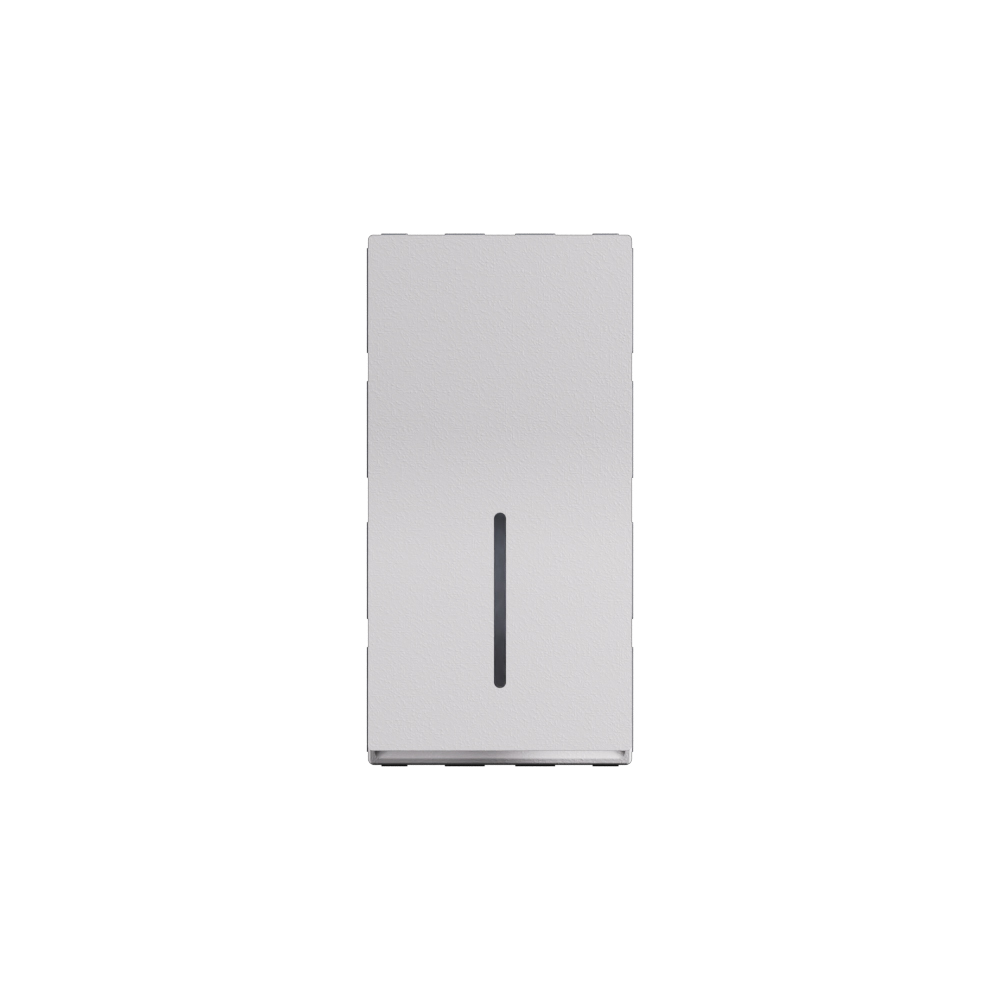

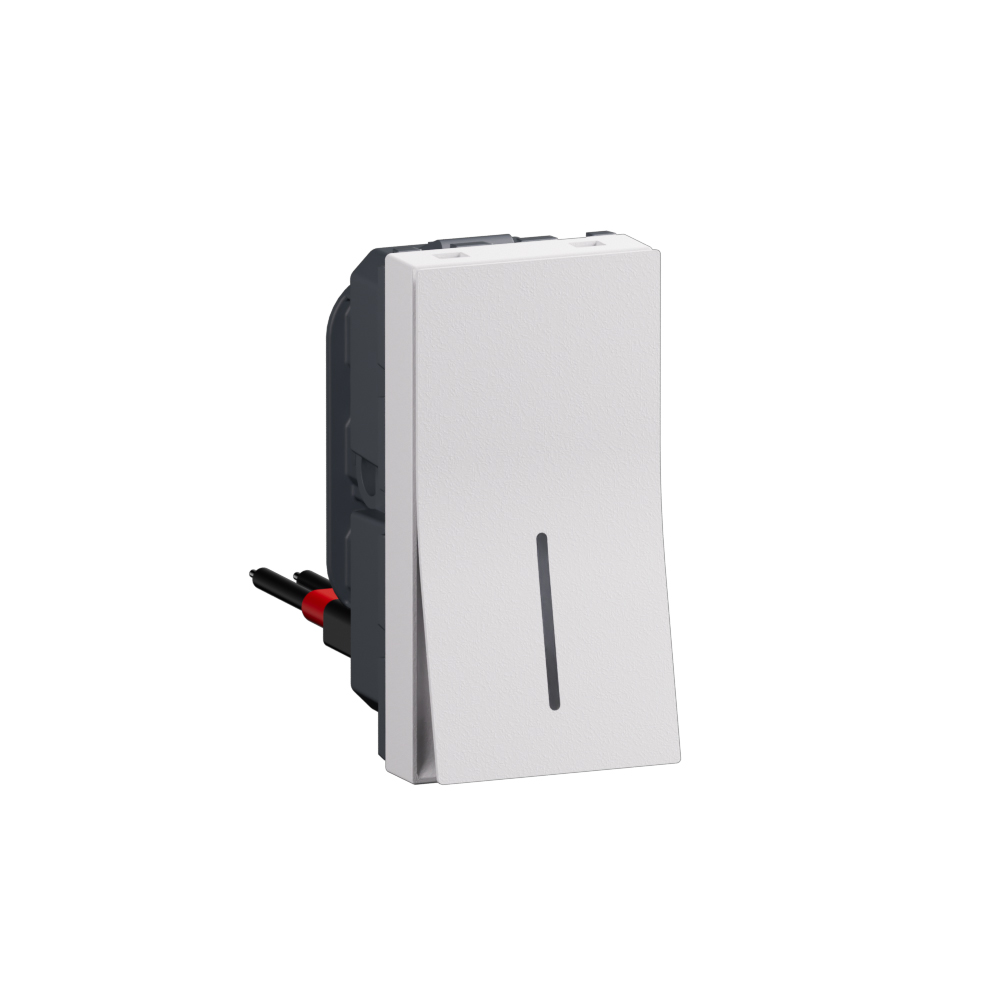

1 module 2 way 10AX single pole switch with indicator matt white - 1M modular rocker switch - 230V AC 10AX IP20

Arteor Advance Legrand

1 module 2 way 10AX single pole switch with indicator matt white - 1M modular rocker switch - 230V AC 10AX IP20

REF. AC22107MW EAN. 3414973057355
This 1-module, 2-way 10AX single pole switch with indicator in matt white offers reliable 230V AC control and clear status indication. Its compact 22.5x45mm format and snap-in mounting ensure fast, secure installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 1-module, 2-way 10AX single pole switch with indicator in matt white offers reliable 230V AC control and clear status indication. Its compact 22.5x45mm format and snap-in mounting ensure fast, secure installation.

Product characteristics
  • 1-module 2-way 10AX single-pole installation switch for 230V AC circuits, suitable for domestic and commercial lighting control.
  • Rocker-operated, 1-gang device with indicator, providing clear circuit status feedback for reliable operation.
  • Modular design for mounting in module frames with snap-in fastening, enabling fast installation and easy configuration in Arteor Advance systems.
  • Matt white thermoplastic front (similar to RAL 9003) with white actuator, delivering a discreet, low-glare finish for modern interiors.
  • IP20-rated device with screwed terminals for 0.75mm² to 1.5mm² conductors and minimum 25mm box depth, ensuring secure wiring and compliant integration.

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting Yes
Function lighting Illuminated (on)
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Rated current 10 A
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
