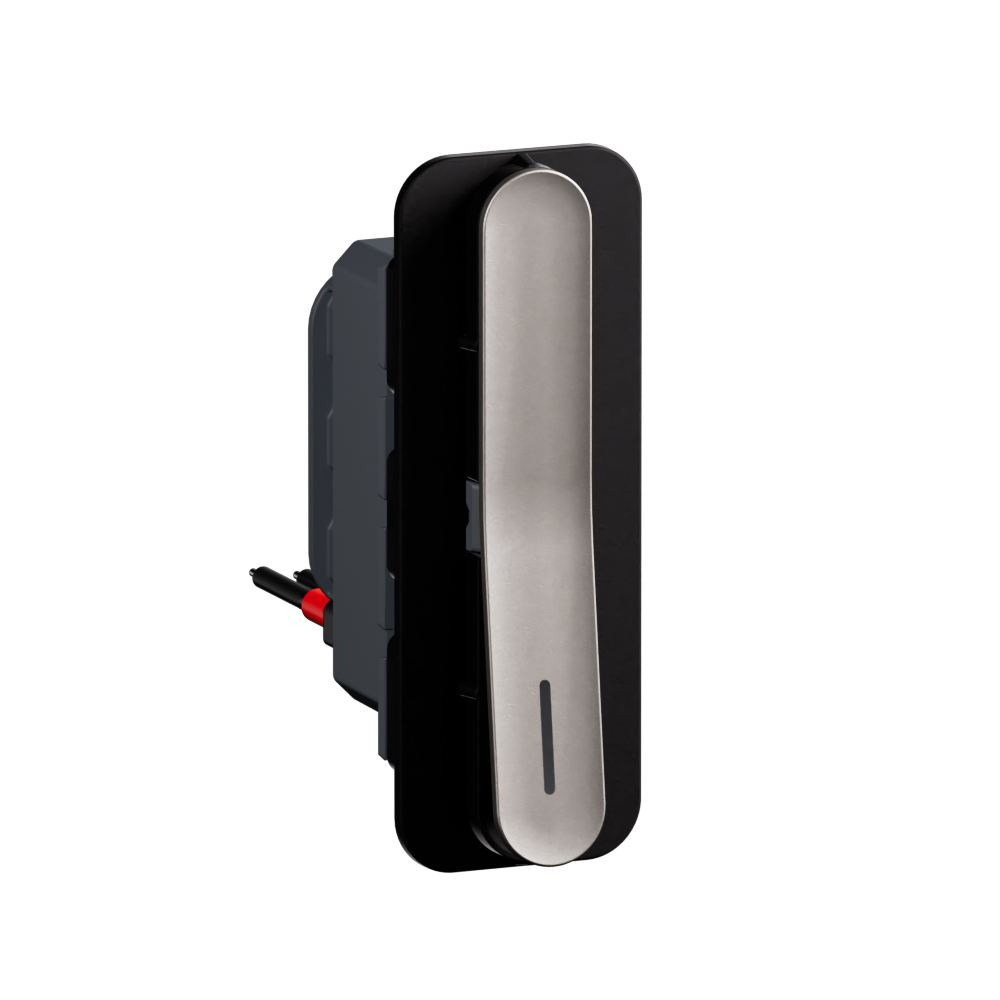

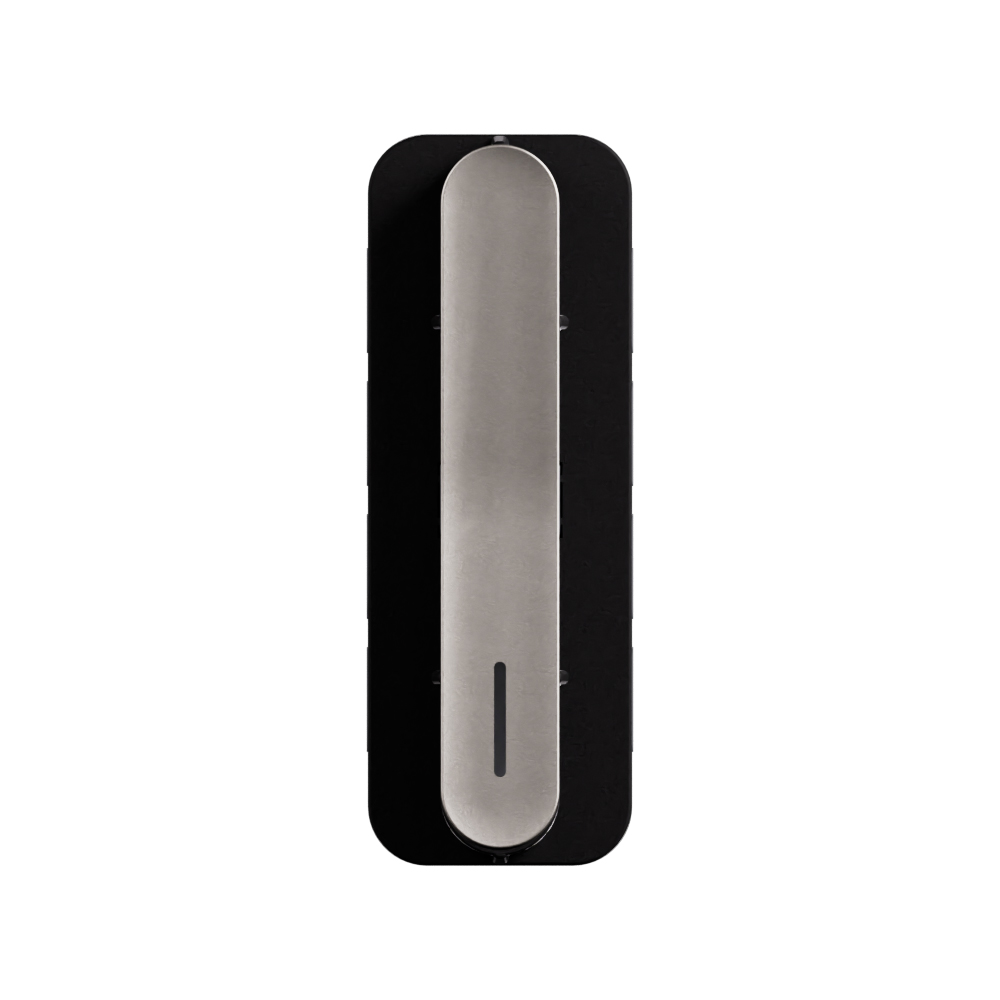

1 module 2 way 10AX single pole switch with indicator matt titanium - 230V AC 10AX - Matt titanium IP20 module

Arteor Advance Legrand

1 module 2 way 10AX single pole switch with indicator matt titanium - 230V AC 10AX - Matt titanium IP20 module

REF. AA22107MT EAN. 3414973056303
This 1-module, 2-way 10AX single-pole switch with indicator delivers reliable 230V AC control in modular domestic installations. Its matt titanium thermoplastic rocker with lacquered finish ensures robust IP20 performance.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 1-module, 2-way 10AX single-pole switch with indicator delivers reliable 230V AC control in modular domestic installations. Its matt titanium thermoplastic rocker with lacquered finish ensures robust IP20 performance.

Product characteristics
  • 1-module 2-way 10AX single-pole switch with indicator for AC 230V circuits
  • Rocker-operated, 2 rocker modular device for domestic switching installations
  • Matt titanium thermoplastic body with lacquered surface for enhanced durability and aesthetics
  • IP20-rated module-frame mounting with snap fastening for quick installation in 30mm boxes
  • Screwed terminals with 0.75mm² to 1.5mm² capacity and clear terminal marking for secure, reliable wiring

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch No
Number of rockers 2
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Colour of switch operator Titanium
Label space/information surface No
Lighting Yes
Function lighting Illuminated (on)
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Rated current 10 A
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45 mm
Device height 62 mm
Device depth 42 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
