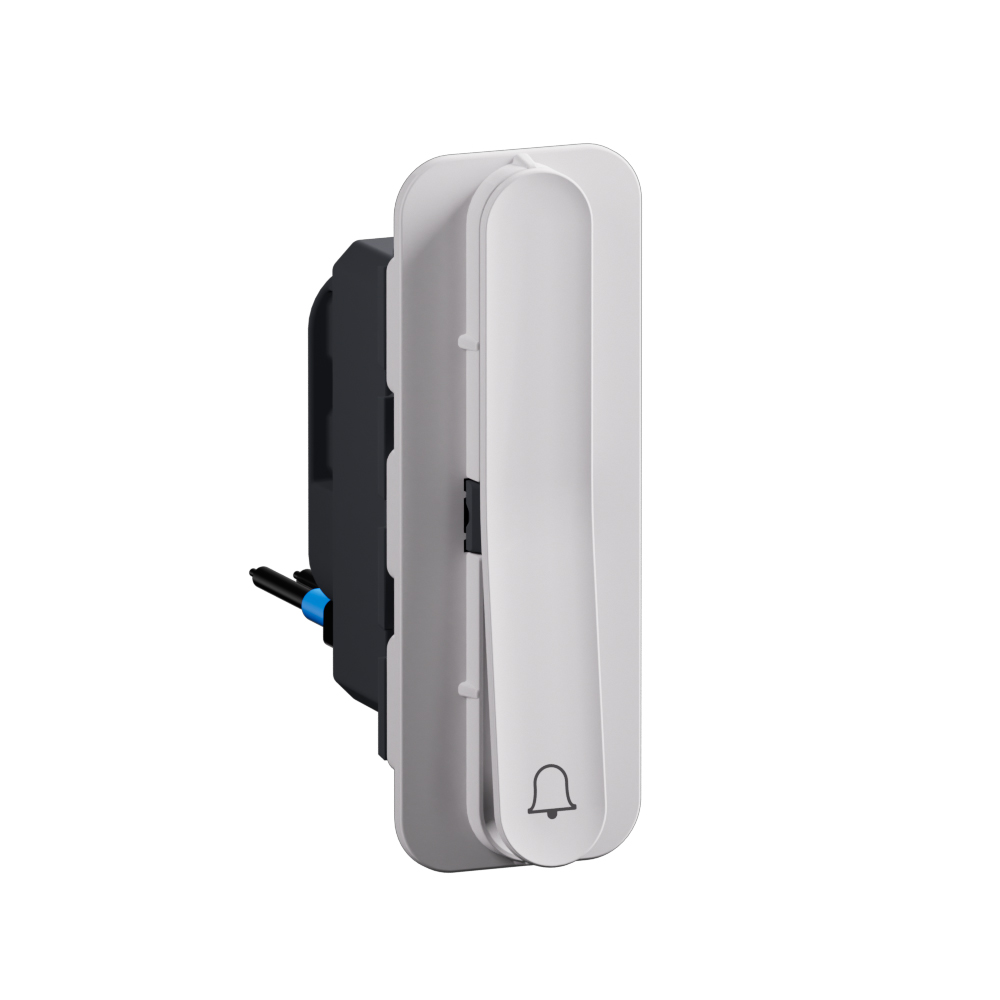

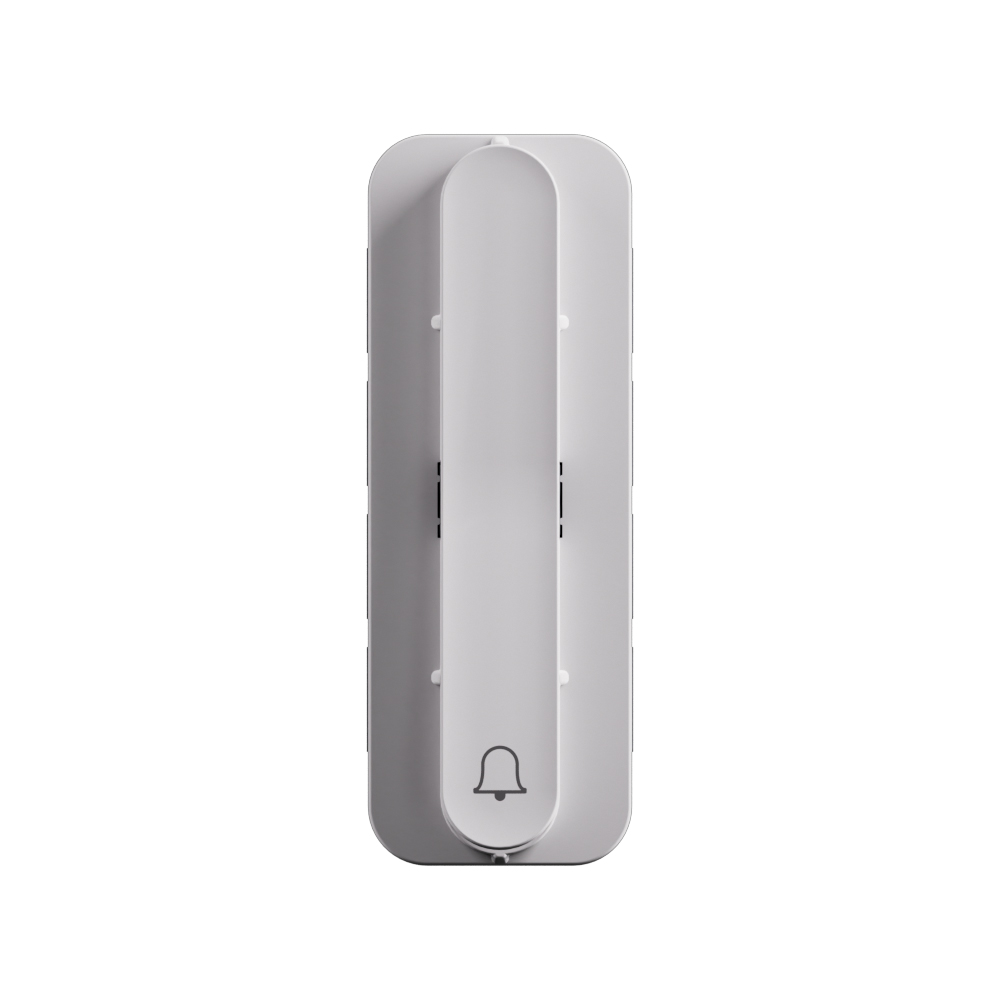

1 module 1 way 10A slim bell push with blue locator matt white - 1M modular bell push - 250V AC 10A - Matt white thermoplastic IP20

Arteor Advance Legrand

1 module 1 way 10A slim bell push with blue locator matt white - 1M modular bell push - 250V AC 10A - Matt white thermoplastic IP20

REF. AA23104MW EAN. 3414973056365
This 1 module, 1 way 10A bell push offers reliable 250V AC operation with a compact profile for modular frames. Its matt white thermoplastic body with blue locator ensures quick identification. Screw terminals support
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 1 module, 1 way 10A bell push offers reliable 250V AC operation with a compact profile for modular frames. Its matt white thermoplastic body with blue locator ensures quick identification. Screw terminals support

Product characteristics
  • 1-module, 1-way bell push for modular domestic switching applications, optimized for slender installations
  • Rated 10A at 250V AC with non-mandatory neutral, suitable for standard low-voltage control circuits
  • Matt white thermoplastic front with untreated surface for a discreet, low-glare appearance in technical environments
  • Screwed terminals with 0.75mm² to 1.5mm² capacity and clear terminal marking indication for secure, error-reduced wiring
  • Snap-in mounting in module frame, IP20 protection, with integrated blue locator for easy identification in low light

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of rockers 1
Number of modules (module system) 1
Nominal voltage 250 V
Rated current 10 A
With lighting Yes
With light source Yes
With complemantary luminous signal No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Label space/information surface No
Imprint None
Suitable for degree of protection (IP) IP20
Device width 22.5 mm
Device height 62 mm
Device depth 42 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
